  • Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM

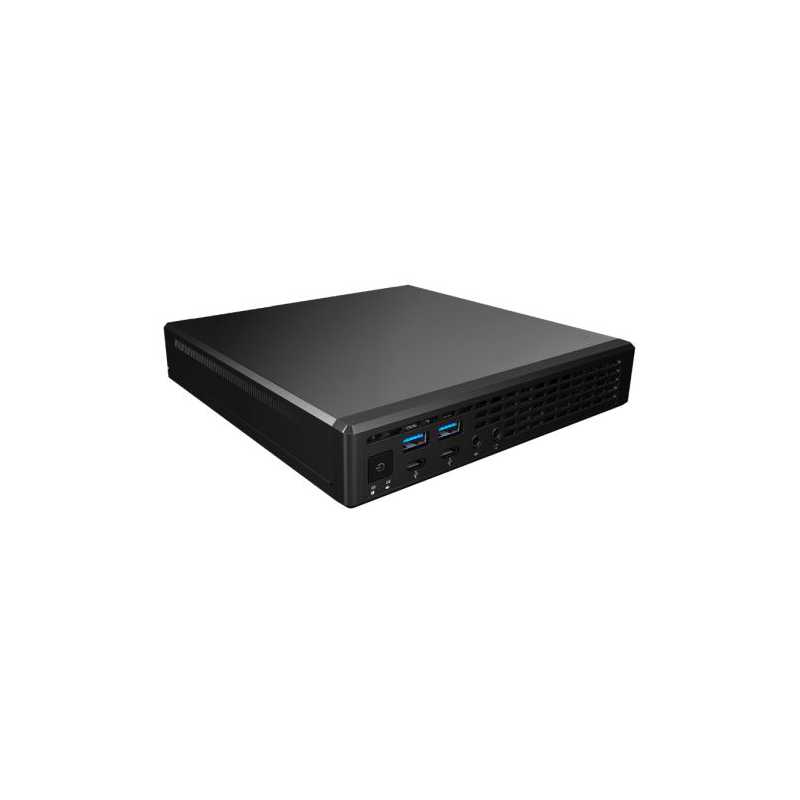

Asrock Jupiter X300 Mini Desktop Barebone PC, AMD AM4 (65W), DDR4 SO-DIMM, 2.5", M.2, VGA, HDMI, DP, USB-C, VESA - No CPU, RAM

£206.70
VAT included
Stock status: Very low
Last 4 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Jupiter X300 is one of the most compact AMD AM4 mini PC in the market. It supports AM4 APUs, up to 65 Watts.

  • AM4 Socket APUs, up to 65Watts
  • AMD X300 Chipset
  • 178 x 178 x 34mm / 1.07L
  • 2 x USB 3.2 Gen1 Type-C
  • 4 x USB 3.2 Gen1
  • 2 x USB 2.0
  • DisplayPort, HDMI, D-Sub
  • M.2 (2280) slot for SSD (PCIe / SATA 6Gb)
  • M.2 (2230) slot for Wi-Fi
  • 2W Speaker, TPM V2.0
  • Support DASH Standard




Advanced AM4 Platform

AMD AM4 Socket APU
Support 5000/4000/3000/2000 Series APU, up to 65W

High Speed DDR4 Memory
DDR4-3200MHz (Cezanne/Renoir)
DDR4-2933MHz (Picasso/Raven)

High Performance Thermal
Copper based heatsink
High efficiency blower






Dual Storage & Wireless

Ultra M.2 Slot
PCIe Gen3 x4 & SATA6Gb M.2 (2280)

SATA 6Gb Hard Drive Bay
Support 7mm/9.5mm height 2.5” SSD/HDD

M.2 For Wi-Fi Module
Optional Intel® AC-3168, AX200 Wi-Fi






Rich USB Connectivity

Front Side
2 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A

Rear Side
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0






Enhanced Creativity

3 Video Outputs
HDMI 4K@60Hz
DisplayPort 4K@60Hz
D-Sub FHD@60Hz
Supports up to 3 displays simultaneously






Enterprise Solutions

DASH LAN(optional)
Provide secure out-of-band and remote management of desktop via intranet/internet.

TPM 2.0 (optional)
Jupiter X300 supports TPM 2.0 to provide the enhanced network, data security down to the hardware level.






Anti-Thief & Speaker

Chassis Intrusion
Get notification if chassis of Jupiter has been opened.

Native 2W Speaker
Jupiter X300 adopts amplifier and 2 watt speaker.






VESA Mount & Stand

Tri-direction VESA mount let you mount Jupiter behind monitor.
Use Vertical stand to save desk space.









ASROCK
90BXG3Z01-A20GA0F
4 Items

Data sheet

Processor
None
Expansion
1 x 4-Pin Fan Connector1 x DC-In Jack (Supports 19V Power Adapters)1 x Internal Speaker Header1 x 2-Pin Chassis Intrusion Header
Wireless
1 x M.2 (2230) Key-E Slot (module sold separately)
Memory
DDR4
Optical Drive
None
Warranty
2 Year Replacement Warranty
Chipset
AMD X300
LAN
1 x RJ45 Gigabit LANRealtek RTL8111GN
Package Type
Retail
Additional Features
Integrated cooling solutionCopper based heatsinkHigh efficiency blowerKensington lockKey lockVESA: 75 x 75mm / 100 x 100 mmChassis IntrusionVertical stand included
Dimensions
Motherboard: 170 x 170 (Proprietary)Barebone: 178 x 178 x 34 mm (1.0L)
Operating System
No O/S
Memory Details
2 x SO-DIMM DDR4Max. 64GB (non-ECC)Cezanne/Renoir APU – DDR4-3200MHzPicasso/Ryzen APU - DDR4-2933MHz
Processor Details
Supports AMD AM4 Socket 65W APUs
Chassis
Asrock Jupiter Mini Desktop
Hard Drive
None
SSD Drive
None
Sound
1 x 2W SpeakerRealtek ALC233
Keyboard and Mouse
No
Graphics
Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
Tower / Small Form Factor
Small Form Factor
Supported Drives
1 x SATA 6Gb 2.5" 7mm/9.5mm Hard DriveM.2 2280 PCIe Gen3 x4 & SATA 6Gb
Front I/O
2 x USB 3.1 Gen1 Type-C2 x USB 3.1 Gen1 Type-A1 x Head Phone with Mic Jack1 x Mic-In
Back I/O
1 x VGA1 x HDMI1 x DisplayPort2 x USB 3.1 Gen1 Type-A2 x USB 2.01 x RJ45
Power Unit
90W/19V Adapter
Fully Built / Barebone
Barebone
