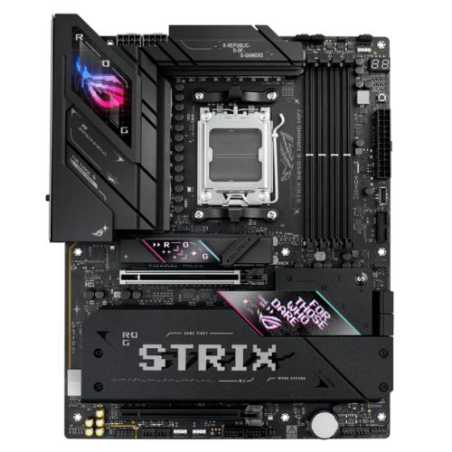

Asus ROG STRIX B850-E GAMING WIFI, AMD B850, AM5, ATX, 4 DDR5, HDMI, DP, USB4, Wi-Fi 7, 5G LAN, PD 30W, RGB, 5x M.2

Data sheet

.

1 x CPU Over voltage jumper1 x Front Panel Audio1 x Power button 1 x 10-1 pin Front System Panel1 x Thermal Sensor

Wireless

Wi-Fi 72x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency bandSupports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbps transfer rate.Bluetooth v5.4

RAM Speeds

Up to 8000+MT/s (OC)

Accessories

2 x SATA 6Gb/s cables 1 x Thermal pad for M.2 221101 x ASUS WiFi Q-Antenna1 x Cable ties package1 x M.2 Q-Slide package1 x ROG key chain1 x ROG Strix stickers5 x M.2 rubbers1 x Quick start guide

USB Ports Supported

Rear:1 x USB4 (40Gbps) Type-C1 x USB 20Gbps Type-C (up to 30W PD/PPS Fast-charge)6 x USB 10Gbps Type-A4 x USB 2.0Front:1 x USB 10Gbps Type-C2 x USB 5Gbps4 x USB 2.0

RAID

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1/5/10. RAID 5 Function is only supported by Ryzen 9000 CPUs

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

AMD AM5

Chipset

AMD B850

DDR Type

DDR5

RAM Technology

DDR5 (Dual Channel)ECC and Non-ECC Un-buffered DIMM*Supports AMD EXPOASUS AEMP*Non-ECC, un-buffered DDR5 memory supports On-Die ECC function

RAM Slots

4 x DIMM

Maximum Memory

192GB

LAN

5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

Back Panel I/O Ports

1 x USB4 (40Gbps) Type-C1 x USB 20Gbps Type-C6 x USB 10Gbps Type-A4 x USB 2.01 x DisplayPort1 x HDMI1 x Wi-Fi module1 x Realtek 5Gb Ethernet2 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump5 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V CPU5 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 10Gbps Type-C1 x USB 5Gbps2 x USB 2.03 x Addressable Gen2

CPU Support

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort1 x USB4 (40Gbps) supports USB Type-C display outputs

Additional Features

See Overview

Graphics

Integrated GraphicsGraphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

5GB LAN

RGB Lighting

Out of the box RGB lighting

PCI/PCI Express

Ryzen 9000 & 7000 Series CPUs:1 x PCIe 5.0 x16 (supports x16 or x8 modes)Ryzen 8000 Series CPUs:1 x PCIe 5.0 x16 (supports x8/x4 mode)AMD B850 Chipset:1 x PCIe 4.0 x16 (supports x4 mode)

Wi-Fi

Yes (Wi-Fi)
