Kingston ValueRAM 16GB, DDR5, 5600MHz (PC5-44800), CL46, 1.1V, SODIMM Memory
£45.65
VAT included

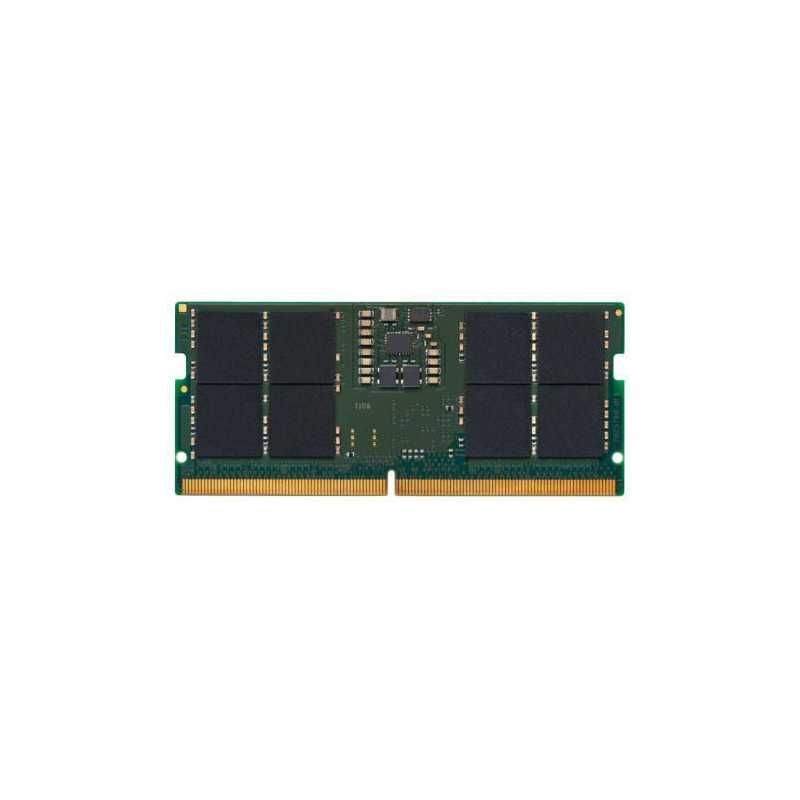

ValueRAM's KVR56S46BS8-16 is a 2G x 64-bit (16GB) DDR5-5600 CL46 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-5600 timing of 46-45-45 at 1.1V. Each 262-pin SODIMM uses gold contact fingers.
- Power Supply: VDD = 1.1V Typical
- VDDQ = 1.1V Typical
- VPP = 1.8V Typical
- VDDSPD = 1.8V to 2.0V
- On-Die ECC
- PCB: Height 1.18” (30.00mm)
- RoHS Compliant and Halogen-Free
KVR56S46BS8-16
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR5 SODIMM
- Package Type
- Blister Pack
- Series
- Kingston ValueRAM
- Size
- 1 x 16GB
- Speed
- 5600 MHz
- Compliance
- PC5-44800
- Pins
- 262-pin
- CAS Latency
- CL46
- Data Integrity Check
- Non-ECC
- Voltage
- 1.1V
- Additional Information
- See Overview
- Individual Module Size
- 16GB
