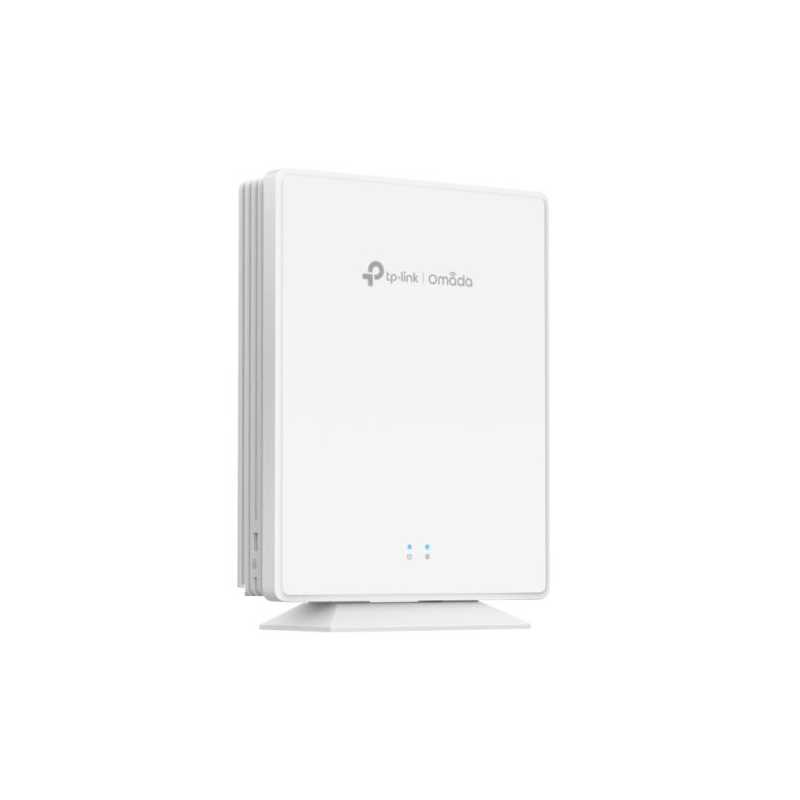

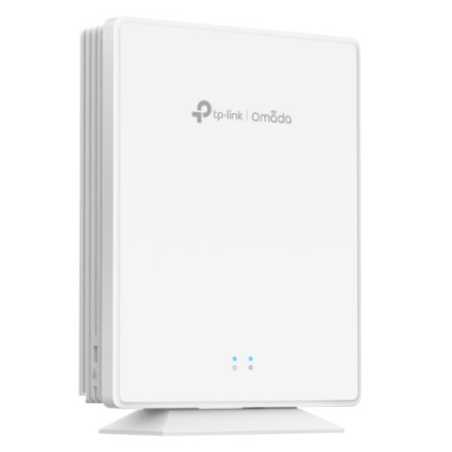

TP-LINK (EAP650-DESKTOP) AX3000 Dual Band Desktop Wi-Fi 6 Access Point, PoE++, 4x GB Ports, Omada Mesh
search
  • TP-LINK (EAP650-DESKTOP) AX3000 Dual Band Desktop Wi-Fi 6 Access Point, PoE++, 4x GB Ports, Omada Mesh

TP-LINK (EAP650-DESKTOP) AX3000 Dual Band Desktop Wi-Fi 6 Access Point, PoE++, 4x GB Ports, Omada Mesh

£106.66
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock



Omada AX3000 Desktop Wi-Fi 6 Access Point

  • Blazing-Fast AX3000 WiFi 6 Speeds: 574 Mbps on 2.4 GHz and 2402 Mbps on 5GHz totals 2976 Mbps WiFi speeds.
  • Multiple Gigabit Ports: Connect multiple devices with 4x Gigabit Ethernet Ports.
  • Convenient Deployment: Supports both 802.3bt PoE++ and DC (adapter included) for easy and quick deployment.
  • No Installation needed: Supports desktop installation without the need for additional setup.
  • High Flexibility: Provide flexible installation solutions for both desktop and wall mounting.
  • Advanced Functions: Omada Mesh, Seamless Roaming, Centralized Cloud Management.



EAP650-DESKTOP

Data sheet

.
BeamformingRate Limit (Based on SSID/Client)Band SteeringLoad BalanceAirtime FairnessTransmit Power Control (Adjust Transmit Power on dBm)QoS (WMM)RADIUS AccountingMAC AuthenticationReboot ScheduleWireless Schedule and StatisticsStatic IP/Dynamic IP
Warranty
2 Years
Package Type
Retail
Additional Features
See Overview
Dimensions
175 x 140 x 33 mm
Power Supply
802.3 af/at/bt PoE or 12V/1.5A DC*PoE Out requires 802.3at/bt PoE power supply
Interface(s)
4 x 1Gbps Ethernet Ports + 1x FXS Port(One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input)
Package Contents
EAP650-DesktopDesktop/Wall Mounting KitInstallation Guide
Power Consumption
17.3W (PoE Out Off)
Wireless Functions
2x2 (2.4G & 5G) MU-MIMOHE160 (160 MHz Bandwidth)OFDMAOmada MeshSeamless Roaming Multiple SSIDs (16 SSIDs, 8 on each band)Enable/Disable SSID BroadcastEnable/Disable Wireless RadioGuest NetworkAutomatic Channel Assignment
Wireless Range
1500 ft squ.
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Button(s)
ResetLED
Max Wired Transfer Rate
10/100/1000 Mbps
Bands
Dual Band
Frequency
5 GHz: Up to 2402 Mbps2.4 GHz: Up to 574 Mbps
Environment
Operating Temperature: 0–40 °C (32–104 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Security
Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsVLANRogue AP Detection802.1X SupportWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Weatherproof
No
Antenna(s)
Internal Omni:2.4 GHz: 2x 5 dBi5 GHz: 3x 4.7 dBi
Wireless Standard
802.11ax (Wi-Fi 6/6E)
Primary Function
Access Point
Access Point Mode
Yes (Access Point Mode)
Max Single Band Wi-Fi Rate
2402 Mbps
Wi-Fi Rating
AX3000
