- New
Arctic P9 PWM PST 9.2cm Case Fan w/ Cable Splitter, Pressure Optimised, Black, Fluid Dynamic, 200-3000 RPM, 0dB Mode
£5.56
VAT included
Delivered within 1-2 days.

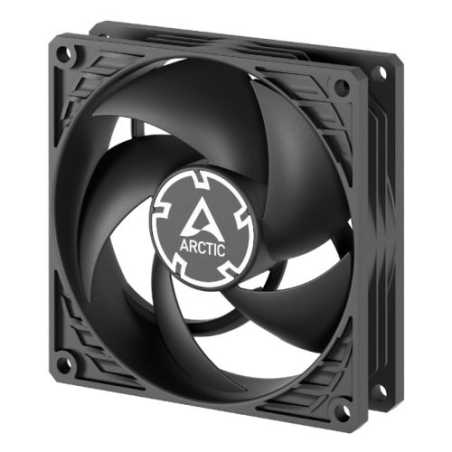

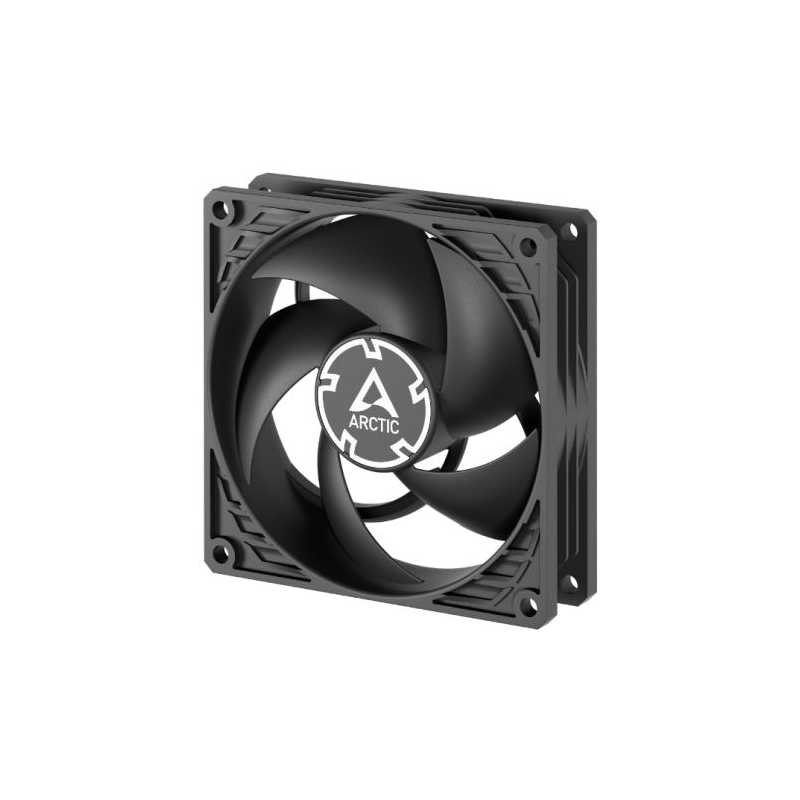

P9 PWM PST (Black) - 92 mm PWM Fan with Cable Splitter
- Fan Speed: 200-3000 RPM (PWM controlled), 0RPM below 5% PWM
- Airflow: 38.83 CFM
- Static Pressure: 3.12 mmH2O
- Fan Bearing: Fluid Dynamic Bearing
- Typical Voltage: 12 V DC
- Start Up Voltage: 5 V DC
- Current: 0.12 A
- Cable Length: 400 mm + 80 mm Daisy-Chain Cable
- Connector: 4-Pin Fan Plug + 4-Pin Socket
- Operating Ambient Temperature: 0–40 °C
Powerful Cooling
The P9 PWM PST is a powerful 92 mm fan with 200 to 3000 rpm.The fan delivers a static pressure of 3.12 mmH2O and generates an airflow of up to 38.83 cfm. It offers precise control of the fan speed via pulse width modulation (PWM) and is extremely efficient at 0.12 A. In addition, it has a 0 dB mode for silent operation in IDLE.
Optimised for High Static Pressure
The P9 PWM PST delivers a focused airflow and guarantees a good airflow even with particularly high static pressure. Therefore, the P9 PWM PST is also specially suitable for use on heat sinks, radiators, pinholes and filters.
0 dB Mode - Zero rpm
The speed of the fan can be throttled down to a standstill via PWM. This allows silent operation in IDLE and at the same time guarantees maximum performance when required. This enables the P9 PWM PST to be extremely flexible in adjusting the speed to optimally regulate the airflow for every case.
Virtually Silent due Fluid Dynamic Bearing
As a special feature, the P9 PWM PST is equipped with ARCTIC's proven Hydrodynamic Bearing. This provides virtually silent operation at all speeds. Although these bearings tend to wear out, ARCTIC does not compromise on durability and offers a 6-year warranty.
200 to 3000 rpm Regulated via PWM
With a wide speed range and innovative PWM Sharing Technology (PST), the P9 PWM PST's fan speed can be controlled in sync with other fans. ARCTIC's PST fans come equipped with their own built-in daisy-chain solution, and, in addition to the plug-in connector, have another socket to which an additional fan or up to four other PST fans can be connected in series.
Quality You Can Rely On
To ensure the longevity of our products, we carry out long-term tests under different, sometimes very adverse conditions. In this way, we learn how we can permanently improve our products for our customers. In addition, the excellent results of long-term testing give us the assurance that our products are not only outstanding in terms of quality, but also in terms of durability. This is a certainty that we are happy to pass on to our customers, which is why we give a 6-year manufacturer's guarantee.
ACFAN00298A
61 Items
Data sheet
- Power
- Typical Voltage: 12 V DCStart Up Voltage: 5 V DCCurrent: 0.12 A
- Warranty
- 6 Years
- Package Type
- Retail
- Package Weight
- 0.1220 kg
- Additional Features
- See Overview
- Type
- 9.2cm Case Fan
- Colour
- Black
- Package Contents
- 1 x P9 PWM PST4 x Mounting Screws
- Fan Connector(s)
- 4-pin
- Installation
- Screws
- Weight
- 106 g
- Fan Dimensions
- 92 x 92 x 25 mmCable Length: 400 mm + 80 mm Daisy-Chain Cable
- LED Lighting
- -
- Fan Controller
- PWM
- Rotation Speed
- 200 - 3000 RPM
- Fan Bearing
- Fluid Dynamic
- Air Flow
- 38.83 CFM
- Noise level
- Virtually Silent0dB Mode - Zero RPM (below 5% PWM)
