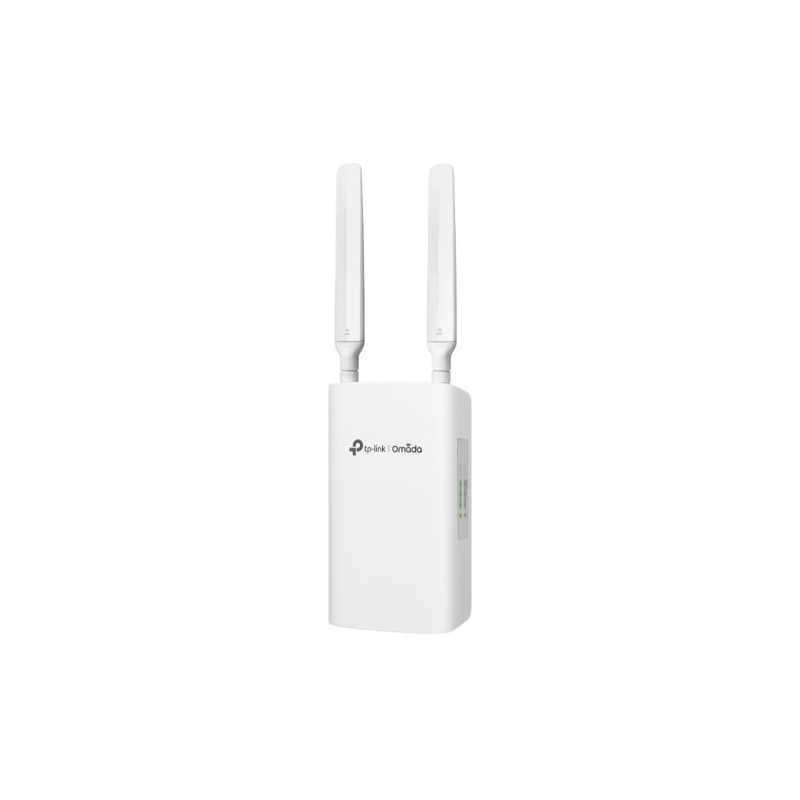

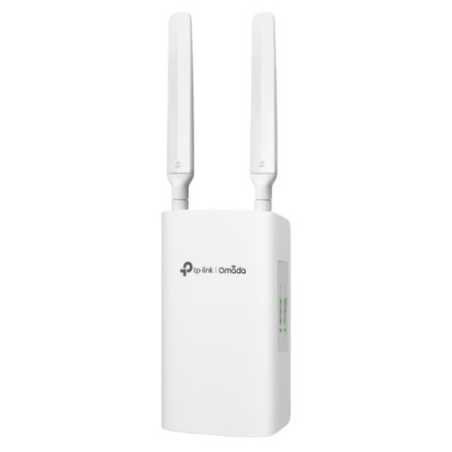

TP-LINK (ER703WP-4G-OUTDOOR) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, 3x GB WAN/LAN (2x PoE Out, 1x PoE In)
search
  • TP-LINK (ER703WP-4G-OUTDOOR) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, 3x GB WAN/LAN (2x PoE Out, 1x PoE In)

TP-LINK (ER703WP-4G-OUTDOOR) Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway, 3x GB WAN/LAN (2x PoE Out, 1x PoE In)

£262.86
VAT included
Stock status: Very low
Last 18 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Omada 4G+ Cat6 AX3000 Wi-Fi 6 Outdoor/Indoor Gateway

  • 4G+ Cat6 up to 300 Mbps
  • AX3000 Wi-Fi 6 with 2402 Mbps on 5GHz and 574 Mbps on 2.4GHz
  • 3 x Gigabit WAN/LAN Ports (2 x PoE Out, 1 x PoE In)
  • 1 x Nano SIM Card Slot
  • 802.3at/bt PoE or 12V/2A DC Power Supply
  • 4G and Ethernet WAN Auto Backup with Load Balancing
  • IPSec/L2TP/PPTP/OpenVPN/GRE/WireGuard/SSL VPN
  • Centralized Management
  • IP55 Weatherproofing






All-in-one Device

Combines 4G Internet access, Wi-Fi 6 wireless technology and 3 Gigabit PoE in/out ports all in one device, and automatic back up and load balancing between 4G and wired WAN can be reached. Enjoyed a powerful and versatile gateway with easy deployment.





Specially Designed Weatherproof Enclosure for Outdoors

Rated as IP55 during Ingress Protection testing, a resilient weatherproof enclosure protects the gateway against harsh outdoor conditions.





Multiple Power Supply Options

Powered by PoE or DC (compatible with solar panels) to overcome mains access limitations.





Plug and Play

Insert a Nano SIM card or connect to an Ethernet WAN Port to get gigabit Wi-Fi. Enjoy hassle-free connect to surveillance cameras via cable or wireless.





Centralized Management

Enables to easy network setup across multiple sites without sending engineer for on-site configuration. Remotely manage via Omada app or web, offering the Essentials version of cloud services for free, reducing maintenance costs for MSP/SI.





Easy Installation

Easy to mount to a wall or pole with the provided mounting kits. Its compact design allows you to place the gateway flexibly.





Easy Management with the Omada App

Remotely manage your access points, switches, and gateways across multiple sites all from a single interface.



ER703WP-4G-OUTDOOR
18 Items

Data sheet

Warranty
Limited Lifetime
Package Type
Retail
Dimensions
174.8 x 100.4 x 38.7 mm (Antenna dimensions are not included)
Type
4G Router
Power Supply
802.3at/bt PoE; 12VDC / 2A Power Adapter
Interface(s)
3 x Gigabit WAN/LAN (2x PoE Out, 1x PoE In)Nano Sim Card Slot
Package Contents
ER703WP-4G-OutdoorMounting KitsQuick Installation Guide
Wireless Functions
Seamless RoamingMesh (with EAP that supports Mesh)OFDMABeamformingMU-MIMORate Limit: Based on SSID/ClientAirtime FairnessMultiple SSIDs: 16 in total (8 per radio)Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 EnterpriseGuest Network
Button(s)
Reset Button
Connectivity
Wireless
Max Wired Transfer Rate
10/100/1000 Mbps
Signal Rate
4G+ Cat6 up to 300 Mbps2.4 GHz: up to 574 Mbps 5 GHz: up to 2402 Mbps
Bands
Dual Band
Frequency
Wi-Fi:2.4 GHz and 5 GHz4G:Downlink: 300 MbpsUplink: 50 Mbps
Environment
Operating Temperature: -30 °C to 60 °C (-22 °F to 140 °F)Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)Operating Humidity: 5% to 95% non-condensingStorage Humidity: 5% to 90% non-condensing
DHCP
DHCP ServerDHCPv6 PD Server (only in Standalone Mode)DHCP Options CustomizationDHCP Address ReservationMulti-IP InterfacesMulti-Net DHCP
Antenna(s)
Wi-Fi: Two 5GHz 4.0dBi & 2.4GHz 2.3 dBi dual-band build-inLTE: Two 4.0dBi omnidirectional detachable antennas
Dynamic DNS
Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization
Wireless Standard
Wi-Fi 6/6E (802.11ax)
USB Application
-
Max Single Band Wi-Fi Rate
2402 Mbps
Wi-Fi Rating
AX3000
