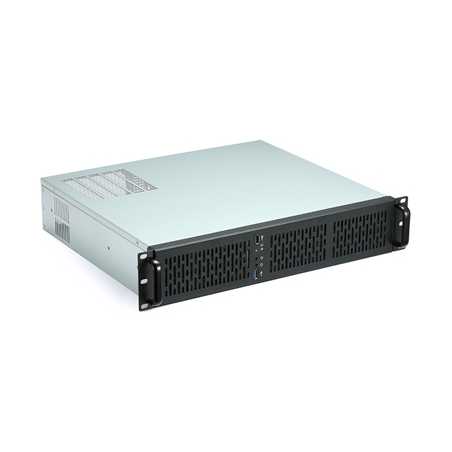

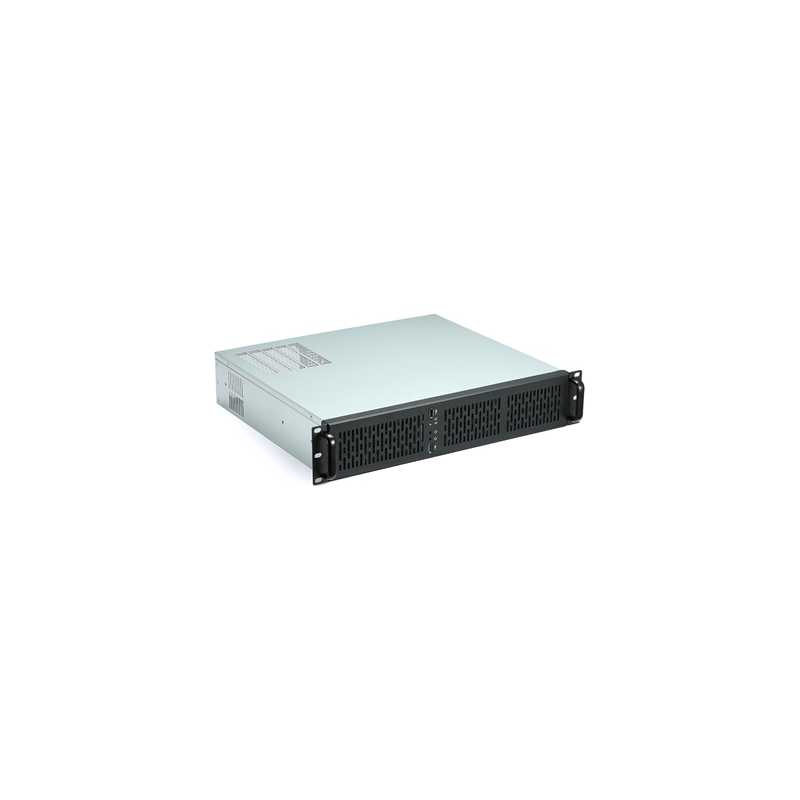

Codegen 2U Rackmount 405mm Deep 3 x 80mm HDB PWM Fans Included

Key Features

2U Rackmount Case - 380mm deep & 430mm wide (Exc. handles).

Server Motherboard Support - Supports Micro-ATX and Mini ITX Motherboards.

3 x 80mm PWM Fans Included - 3 x 80mm PWM fans are included with automatic speed control of the Motherboard through the 4 Pin PWM fan cable interface, which can determine the speed according to the temperature readings from various parts of the PC. This further helps to keep your system as quiet as possible, using only as much fan power as needed.

HDD Capacity Support - Hard drive mounting support options includes up 4 x 3.5" HDDs, 1 x 2.5" SSD & 3 x 3.5" HDDs and 3 x 2.5" SSDs & 1 x 3.5" HDD. The hard drive bays are shared bays.

Air Ventilation - Designed with ventilation on the top panel where the PSU is located to increase airflow inside the Rackmount to keep components at peak performance.

LEDs for Server Functions - LEDs to indicate the following: Machine state (Power LED x 1 green), HDD Activity (HDD LED x 1 red).


Specifications

Form Factor:2U Rackmount
Rackmount Dimensions - Excluding Handles:(W) 430 x (H) 89 x (D) 380mm
Rackmount Dimensions - Including Handles:(W) 482 x (H) 89 x (D) 405mm
80mm HDB PWM Fan Specification:
Powered Via:4pin PWM Fan Connector
Additional Chassis Details:
Control Indicator:1 x Power Switch & 1 x Reset Switch | 1 x LED (Power) & 1 x LED (HDD)
PSU Location:Rear Right
PSU Max. Length:200mm
Motherboard Max. Size:(W) 275 x (D) 250mm


Case Specifications

Form Factor:Rackmount
Motherboard Support:Micro ATX, Mini ITX
PSU Support:Standard ATX
PSU Location:Bottom
Gaming Case:No
Water Cooling:Not Water Cooling Ready
Body Material:1.0mmSGCC
Front Bezel Material:Metal
Side Panel:Metal
Internal Cable Management Depth:85mm

External Bays:
Internal Bays:
4 x 3.5" Internal
3 x 2.5" Internal
Drive Bay Notes:2.5" Bay share with 3.5"
Expansion Slots:4 x Half-Height

Cooling Front:Space For 3 x 80mm Fans (3 x 80mm HDB PWM Black Fans Included)
Cooling Top:None
Cooling Rear:None
Cooling Side:None
Cooling Bottom:None

IO Ports:
1 x USB 3.0
1 x USB 2.0
GPU Max Length:180mm
CPU Cooler Maximum Height:67mm
Front Bezel Colour:Black
Body Colour:Bare Metal
System Cabinet Features:
PSU Included:No
