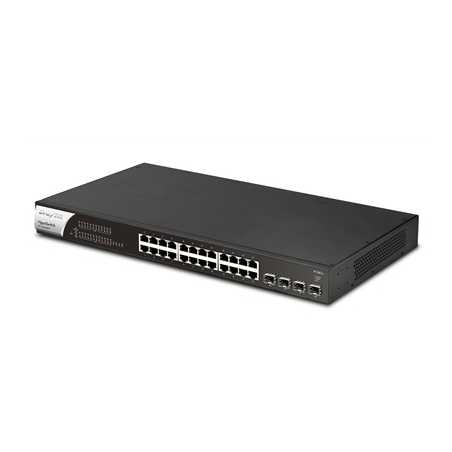

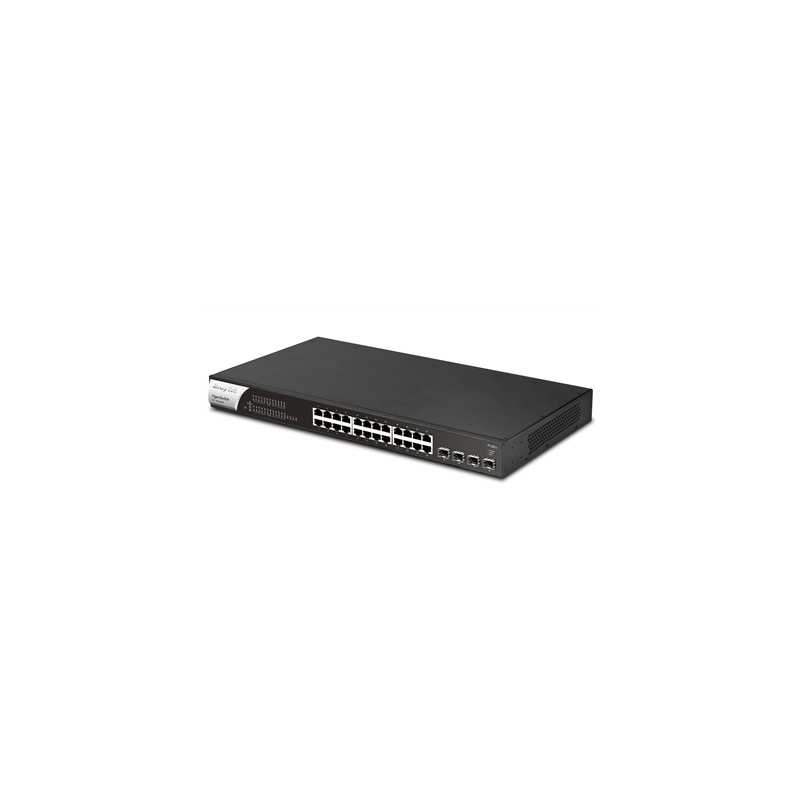

DrayTek VSP1281X-K VigorSwitch P1281x 24 Port Gigabit POE Smart Managed Switch with 4x 10GbE SFP Ports

VigorSwitch P1281x 24 Port GbE 4 Ports 10Gbps SFP+ Switch with PoE/PoE+
VigorSwitch P1281x is a smart switch with 24 x GbE PoE+ Ports (total of 140W output) and 4 additional independent SFP+ 10Gbps interfaces. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.

Designed for centralised management, the VigorSwitch P1281x can be provisioned and monitored with the VigorACS management platform, the free VigorConnect single site management system or, with a DrayTek Vigor router’s Central Switch Management. Easily provision VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network and configure an entire DrayTek network remotely.

24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps
4 x SFP+ 10GbE Ports for Uplink / Fibre
PoE (Power-over-Ethernet) for IP phones, wireless access points, IP cameras etc.
140-watt Power-over-Ethernet budget
Cloud Managed with VigorACS
1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
ONVIF IP Camera Surveillance Management with PoE Device Check
Access Control List (ACL) for port & traffic level security
Port Mirroring & Link Aggregation
IGMP Snooping & Querying
IPv4 and IPv6 Support with IP Conflict Prevention
Centrally managed or standalone operation

Physical Interfaces
24 RJ-45 Ethernet PoE+ Ports – 10/100/1000Mbps
4 SFP+ Ports – 1000Mbps/10Gbps
Factory Reset Button

PoE Specification
24 Power over Ethernet LAN ports - PoE PSE
IEEE 802.3af PoE & 802.3at PoE+ (High Power) compliant
140 Watts Total Power Budget for PoE
Up to 30 watts per port
Auto Detection of Powered Device (PD) and Consumption Levels
Per Port PoE Status LED Indicators
Alert LED for high PoE Usage
Port Power Consumption Monitoring via Web Interface & CLI
Circuit Protection to Prevent Power Interference between Ports
PoE PD Monitoring & Maintenance Features (per port)
> Scheduling
> PoE PD Priority
> Restart PoE PD if not responding to ping
> Restart PoE IP Camera if not providing camera output

VLAN
Up to 512 VLANs (out of 4096 VLAN IDs)
802.1q Tag-based VLAN
Port-based and MAC-based VLANs
Voice VLAN (OUI Mode)
Surveillance VLAN (OUI Mode)
Management VLAN

QoS
Support 8 priority queues
Port-Based rate control (Ingress & Egress)
Priority queue schedule (WRR or Strict Priority)
Rate Limit
Class of Service
> 802.1p CoS
> DSCP
> CoS-DSCP
> IP Precedence ToS

Network Security
IP Source Guard with ARP inspection
Storm Control (Broadcast, Unknown Multicast, Unknown Unicast)
DoS Attack protection
Protected Port / Port Isolation
Static Port Security
Loop Detection & Prevention
Access Control Lists (ACL)
> Up to 512 ACL Entries
> Source and destination MAC
> VLAN ID
> IPv4/v6 address
> Protocol
> TCP/UDP port

Spanning Tree
Spanning Tree Protocol (STP)
Rapid Spanning Tree Protocol (RSTP)

Link Aggregation
Combine multiple ports to increase bandwidth
8 Aggregation Groups
Up to 8 ports in each group
LACP or Static setup
Supports traffic load balancing

Networking Performance
Switching Capacity: 56 Gbps
Forwarding Rate: 41.7 Mpps at 64 bytes
MAC Addresses Supported: 8k
Jumbo Frames up to 9KB
Packet Buffer size: 4.2Mbit

Multicast
IGMP Snooping V2/V3 (BISS)
IGMP V2/V3 Querier

ONVIF Surveillance Management
Discovery of ONVIF-compliant IP Cameras
Surveillance Topology
Real-Time Video Streaming
ONVIF Device Maintenance
> Device Information
> Network Settings Configuration
> Time Settings
> Reboot
> Reset to Factory Default Settings
> Ping Check with Mail Alert on disconnection

Management
Web User Interface (HTTP or HTTPS)
HTTP (non-TLS) can be disabled for increased security
Command Line Interface (CLI) via SSH/Telnet
Central Management
> VigorACS
> VigorConnect
> Vigor Router Switch Management
Firmware Upgrade/Backup
Configuration Backup/Restore
IPv4 & IPv6 Dual-Stack
Factory Default
System Reboot
2-level Admin Privileges
Multiple Admin Accounts
OpenVPN Client with Certificate-based auth
SNMP v1, v2c, v3 (with Generic Traps)
SNTP (Simple Network Time Protocol)
LLDP(802.1ab) + MED
ONVIF – IP Camera Management

Diagnostics
Port Status & Usage display
RAM Usage display
MAC Address Table
Device Check
Syslog
Mail Alert
> Port Status
> Port Speed Change
> System Restart
> Device Check
> IP Conflict
> ONVIF IP Camera Snapshot
Port Mirroring
Ping Diagnostics
Port-based Cable Test

IPv4 Features
DHCP Client
DNS Client

IPv6 Features
Auto Configuration
Static IPv6 Address & Prefix Length
Static IPv6 Default Gateway
IPv6 Neighbour Discovery (ND)
IPv6 Duplicate Address Detection
ICMPv6
DHCPv6 Client

General IEEE Standards Compliance
802.3af PoE
802.3at PoE+
802.3 10Base-T
802.3u 100Base-T
802.3ab 1000Base-T
802.3ae 10GBase-T
802.3x Flow Control Capability
802.3 Auto-negotiation
802.3ad Port trunk with LACP
802.3az Energy Efficient Ethernet
802.1q VLAN
802.1p Class of Service
802.1d Spanning Tree (STP)
802.1w Rapid Spanning Tree (RSTP)
802.1ab Link Layer Discovery Protocol (LLDP)

Operating Requirements
Power Input Requirements: 100-240VAC
Power supply: Internal
Maximum Input Power Consumption: 200W at 2.5A
Cooling: Passively cooled
Operating Temperature: 0 °C to 50 °C
Storage Temperature: -20 °C to 70 °C
Operating Humidity: 10% to 90% (non-condensing)
Storage Humidity: 5% to 90% (non-condensing)

Physical Specifications
Dimensions (W x D x H): 440 x 216 x 44 mm
Weight (excluding SFP modules/cables): 3.25 kg
Rack mountable: 1U
> Brackets included for rack mounting

Warranty
Standard: Two (2) Year, RTB
Software security updates
3 years after the EOL notification. Please note that this only applies to products sold in the UK
Optional VigorCare Enhanced Warranty Available
> VigorCare C3 3 Year Subscription: VCARE-C3
> VigorCare C5 5 Year Subscription: VCARE-C5

Box Contents
VigorSwitch P1281x Network Switch
UK IEC13 Power Cable
1U Rack Mount Fittings
Quick Start Guide
