- Out of stock

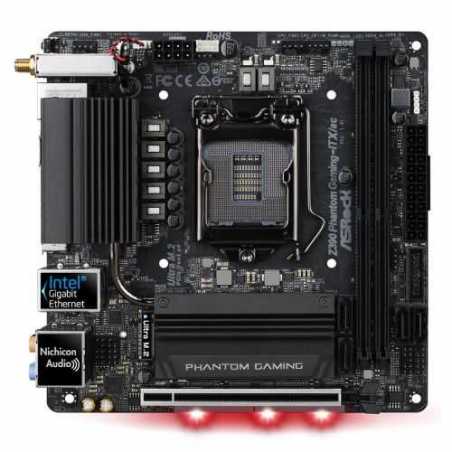

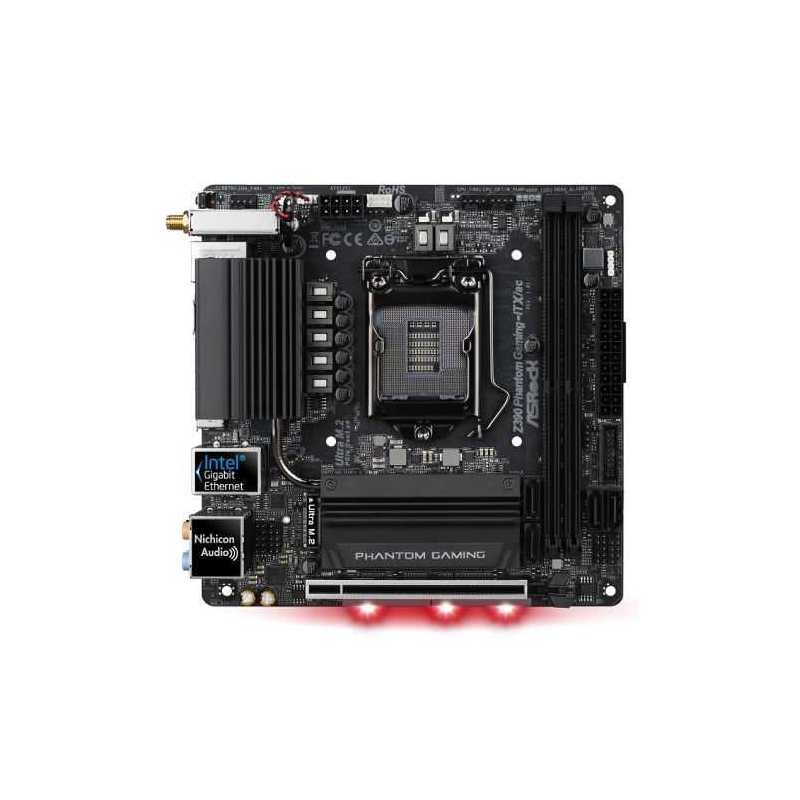

Asrock Z390 PHANTOM GAMING-ITX/AC, Intel Z390, 1151, Mini ITX, 2 DDR4, HDMI, DP, Wi-Fi, RGB Lighting, M.2
£216.80
VAT included
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Supports DDR4 4500MHz+ (OC)
- 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
- 1 Intel® Thunderbolt™ 3 Type-C
- 4 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.1 Gen2 10Gb/s (Rear)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Intel® 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
- ASRock Polychrome SYNC
Rule your own Lighting Way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Intel® Thunderbolt 3 Type-C
Experience the world's fastest connectivity with ASRock's Intel® Thunderbolt™ ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt™ devices with a single wire. The highly desirable reversible USB Type-C interface delivers breathtaking bandwidth and also supports USB PD 2.0 charging up to 12V@3A (36W).
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.
2T2R 802.11ac WiFi
Dual Band (2.4/5 GHz)
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!
*The doubled bandwidth 160MHz with the max. speed up to 1.73Gbps is only supported with 802.11ac Wave 2 router.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Super Alloy Motherboard
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- Supports DDR4 4500MHz+ (OC)
- 1 PCIe 3.0 x16
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Supports Creative Sound Blaster™ Cinema 5
- 1 Intel® Thunderbolt™ 3 Type-C
- 4 SATA3, 2 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 USB 3.1 Gen2 10Gb/s (Rear)
- 4 USB 3.1 Gen1 (2 Front, 2 Rear)
- Intel® Gigabit LAN
- Intel® 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
- ASRock Polychrome SYNC
Rule your own Lighting Way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
Intel® Thunderbolt 3 Type-C
Experience the world's fastest connectivity with ASRock's Intel® Thunderbolt™ ready motherboards. The Daisy-chain feature allows users to connect up to 6 Thunderbolt™ devices with a single wire. The highly desirable reversible USB Type-C interface delivers breathtaking bandwidth and also supports USB PD 2.0 charging up to 12V@3A (36W).
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.
2T2R 802.11ac WiFi
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!
*The doubled bandwidth 160MHz with the max. speed up to 1.73Gbps is only supported with 802.11ac Wave 2 router.
CREATIVE SOUND BLASTER™ CINEMA5
A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you’re gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Super Alloy Motherboard
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Dr. MOS
Dr. MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Digi Power
Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Z390 PHANTOM GAMING-ITX/AC
Data sheet
- PCI Express
- 1 x PCIe 3.0 x16
- Wireless
- Intel 802.11ac WiFi Module, Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports wireless connections up to 1733Mbps, 2 antennas (2 (Transmit) x 2 (Receive)), Supports Bluetooth 5.0, Supports MU-MIMO
Intel 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports wireless connections up to 1733Mbps2 antennas (2 (Transmit) x 2 (Receive))Supports Bluetooth 5.0Supports MU-MIMO - RAM Speeds
- 4500(OC)*/4333(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3800(OC)/3733(OC)/3600(OC)/3200(OC)/2933(OC)/2800(OC)/2666/2400/2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 1 x ASRock WiFi 2.4/5 GHz Antenna, 2 x Screws for M.2 Sockets
Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables1 x ASRock WiFi 2.4/5 GHz Antenna2 x Screws for M.2 Sockets - USB Ports Supported
- "4 x USB 3.1 Gen 2 (Type-A at back), 4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board), 2 x USB 2.0 (at mid-board)"
4 x USB 3.1 Gen 2 (Type-A at back)4 x USB 3.1 Gen 1 (2 at back, 2 at mid-board)2 x USB 2.0 (at mid-board) - Storage
- 4 x SATA III, 1 x M.2 (2280) - SATA & PCIe, 1 x M.2 (2260/2280) - PCIe
4 x SATA III1 x M.2 (2280) - SATA & PCIe1 x M.2 (2260/2280) - PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Year Replacement Warranty
3 Years - Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x DisplayPort 1.2, 1 x Intel Thunderbolt 3, 1 x Optical SPDIF Out, 4 x USB 3.1 Gen2 Type-A, 2 x USB 3.1 Gen1, 1 x RJ-45 LAN, 1 x Clear CMOS Button, HD Audio Jacks
2 x Antenna Ports1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.21 x Intel Thunderbolt 31 x Optical SPDIF Out4 x USB 3.1 Gen2 Type-A2 x USB 3.1 Gen11 x RJ-45 LAN1 x Clear CMOS ButtonHD Audio Jacks - Internal I/O Connectors
- 1 x Chassis Intrusion, 1 x RGB LED, 1 x Addressable LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 1 x Chassis Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 1 x USB 2.0, 1 x USB 3.1 Gen1
1 x Chassis Intrusion1 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan1 x Chassis Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.1 Gen1 - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 1.1400 kg
- Graphics Ports
- 1 x HDMI, 1 x DisplayPort 1.2
1 x HDMI1 x DisplayPort 1.2 - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes
Yes (RGB)
