- Out of stock

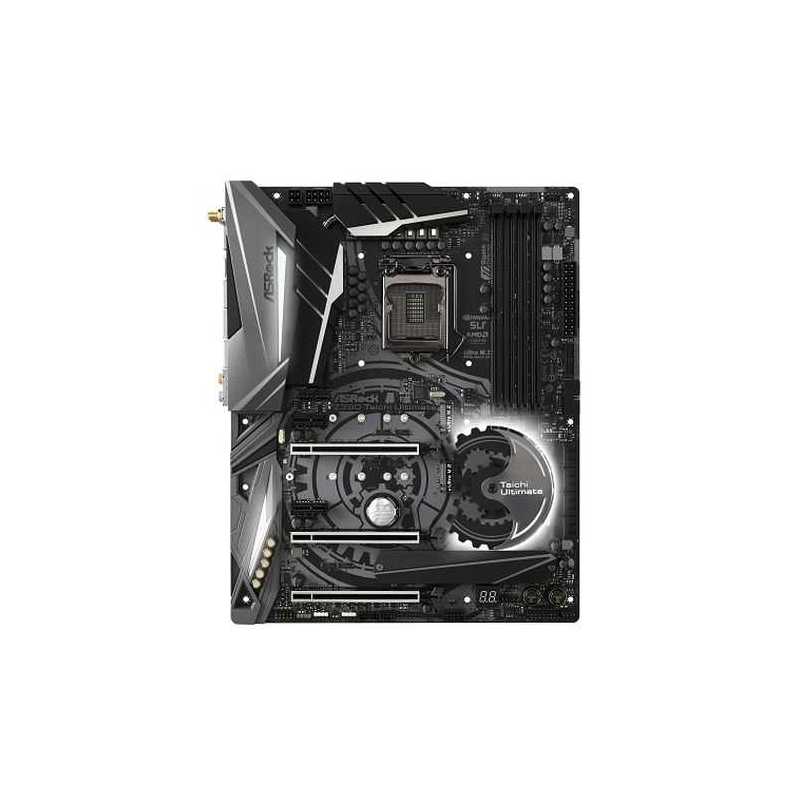

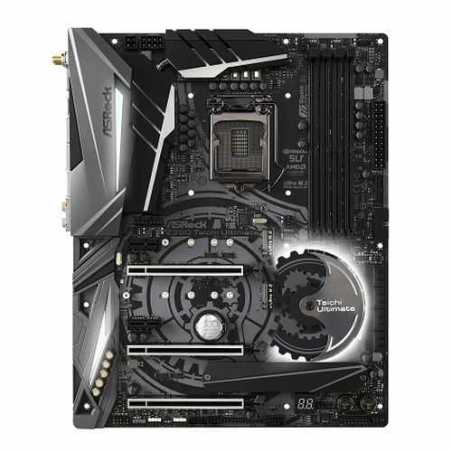

Asrock Z390 TAICHI ULTIMATE, Intel Z390, 1151, ATX, XFire/SLI, HDMI, DP, Triple LAN (1 x 10GB), Wi-Fi, RGB Lighting, M.2
£299.60
VAT included
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- AQUANTIA® 10 Gigabit LAN, Dual Intel® Gigabit LAN
- IR Digital PWM, 12 Power Phase design
- Supports DDR4 4200+(OC)
- 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 5 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)
- 8 USB 3.1 Gen1 (4 Front, 4 Rear)
- Intel® 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
- ASRock Polychrome SYNC
- Hyper BCLK Engine II
AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
Fully Supports 9th Gen Intel® Core Processors
The motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.
12 Power Phase Design (IR® DIGITAL PWM)
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Rule your own Lighting way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
2T2R 802.11ac WiFi
Dual Band (2.4/5 GHz)
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.
Hyper BCLK Engine II
An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
Triple Ultra M.2
Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Front USB 3.1 Gen2 Type-C
Front USB 3.1 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various techn
- Supports 9th and 8th Gen Intel® Core™ processors (Socket 1151)
- AQUANTIA® 10 Gigabit LAN, Dual Intel® Gigabit LAN
- IR Digital PWM, 12 Power Phase design
- Supports DDR4 4200+(OC)
- 3 PCIe 3.0 x16, 2 PCIe 3.0 x1
- NVIDIA® Quad SLI™, AMD 3-Way CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
- Supports Purity Sound™ 4 & DTS Connect
- 8 SATA3, 3 Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 5 USB 3.1 Gen2 (1 Front Type-C, 1 Rear Type-C, 3 Rear Type-A)
- 8 USB 3.1 Gen1 (4 Front, 4 Rear)
- Intel® 2T2R Dual Band 802.11ac WiFi (2.4/5GHz), supports up to 1.73Gbps wireless network and BT v5.0
- ASRock Polychrome SYNC
- Hyper BCLK Engine II
AQUANTIA® 10Gb/s BASE-T Ethernet
The new 10Gb/s network standard was specially designed to satisfy the user who is seeking immediate performance improvements. Based on AQUANTIA's AQtion™ client controller, it offers blazingly fast 10-gigabit/sec transfer speed over Cat6 cable. The 10Gb/s Ethernet not only fully compatible with 5Gb/s, 2.5Gb/s & Gigabit Lan but also delivers lightning fast transfer speed, perfect for media center, workstation and gaming PC.
Fully Supports 9th Gen Intel® Core Processors
The motherboard is designed to make the best out of 9th Generation Intel® Core™ Processors, the sturdy VRM design provides extreme overclocking potential, lower temperature during gaming and reinforced system stability for taking on all sorts of arduous computing tasks.
12 Power Phase Design (IR® DIGITAL PWM)
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
Rule your own Lighting way - Polychrome RGB
In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
2T2R 802.11ac WiFi
Dual Band (2.4/5 GHz)
No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with an exclusive 2T2R 802.11ac WiFi 2.4/5Ghz (160Mhz) module that supports up to 1.73Gbps wireless networks and Bluetooth v5.0. Experience up to 289% speed boost compared to your old WiFi!
Full Coverage M.2 Heatsink
A massive full coverage M.2 heatsink that is able to dissipate heat ef-ficiently to ensure your high speed M.2 SSD always working at its best.
Hyper BCLK Engine II
An additional external base clock generator which provides a wider range of frequencies and more precise clock waveforms.
Purity Sound 4
It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.
Triple Ultra M.2
Triple of the world’s fastest PCIe Gen3 x4 Ultra M.2 slots that deliver up to 32Gb/s transfer speed, it also supports SATA3 6Gb/s M.2 modules.
Front USB 3.1 Gen2 Type-C
Front USB 3.1 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
SLI HB Bridge Free Bundled
The free bundled ASRock's new SLI HB Bridge is compatible with the NVIDIA® GeForce GTX 1080 and 1070 graphics cards that doubles the available transfer bandwidth, thus delivering rock stable gameplay and experiencing surround gaming in the best way.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
Super Alloy Motherboard
XXL Aluminum Alloy Heatsink
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.
Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Premium Memory Alloy Choke
Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.
Dual-Stack MOSFET (DSM)
Dual-Stack MOSFET (DSM) is another innovative MOSFETs design by ASRock. The silicon die area is increased by stacking two dies into one MOSFET. The larger the die area, the lower Rds(on). Compared to traditional discrete MOSFET, DSM with larger die area provides extreme lower Rds(on) 1.2 mΩ, so the power supply for the CPU Vcore is more efficient.
Combo Caps
A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.
Nichicon 12K Black Caps
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.
I/O Armor
A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.
Matte Black PCB
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Z390 TAICHI ULTIMATE
Data sheet
- .
- 2 x USB 2.0, 2 x USB 3.1 Gen1, 1 x Front Panel Type C USB 3.1 Gen2 Header, 1 x Performance Mode / Easy OC, 1 x Dr. Debug with LED, 1 x Power Button with LED, 1 x Reset Button with LED
2 x USB 2.02 x USB 3.1 Gen11 x Front Panel Type C USB 3.1 Gen2 Header1 x Performance Mode / Easy OC1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED - PCI Express
- 3 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
3 x PCIe 3.0 x162 x PCIe 3.0 x1 - Wireless
- Intel 802.11ac WiFi Module, Supports IEEE 802.11a/b/g/n/ac, Supports Dual-Band (2.4/5 GHz), Supports wireless connections up to 1733Mbps, 2 antennas (2 (Transmit) x 2 (Receive)), Supports Bluetooth 5.0, Supports MU-MIMO
Intel 802.11ac WiFi ModuleSupports IEEE 802.11a/b/g/n/acSupports Dual-Band (2.4/5 GHz)Supports wireless connections up to 1733Mbps2 antennas (2 (Transmit) x 2 (Receive))Supports Bluetooth 5.0Supports MU-MIMO - RAM Speeds
- 4200+(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield, 4 x SATA Data Cables, 1 x ASRock SLI_HB_Bridge_2S Card, 1 x ASRock WiFi 2.4/5 GHz Antenna, 3 x Screws for M.2 Sockets
Quick Installation GuideSupport CDI/O Shield4 x SATA Data Cables1 x ASRock SLI_HB_Bridge_2S Card1 x ASRock WiFi 2.4/5 GHz Antenna3 x Screws for M.2 Sockets - USB Ports Supported
- "4 x USB 3.1 Gen 2 (3 Type-A & 1 Type-C at back), 8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board), 3 x USB 2.0 (at mid-board), 1 x USB 3.1 Gen 1 front panel connector"
4 x USB 3.1 Gen 2 (3 Type-A & 1 Type-C at back)8 x USB 3.1 Gen 1 (4 at back, 4 at mid-board)3 x USB 2.0 (at mid-board)1 x USB 3.1 Gen 1 front panel connector - Storage
- 8 x SATA III, 1 x M.2 (2230/2242/2260/2280) - SATA & PCIe, 2 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
8 x SATA III1 x M.2 (2230/2242/2260/2280) - SATA & PCIe2 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe - RAID
- "RAID 0, 1, 5, 10"
RAID 0, 1, 5, 10 - Warranty
- 3 Year Replacement Warranty
3 Years - Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- 1151 - Coffee Lake
Intel 1151 - Coffee Lake - Chipset
- Intel Z390
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA Quad-GPU SLI, Supports AMD Quad-GPU CrossFireX
Supports NVIDIA Quad-GPU SLISupports AMD Quad-GPU CrossFireX - PCI
- -
- LAN
- 10GB LAN & Dual GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard, 1 x HDMI, 1 x DisplayPort 1.2, 1 x Optical SPDIF Out, 3 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C, 4 x USB 3.1 Gen1, 3 x RJ-45 LAN, 1 x Clear CMOS Button, HD Audio Jacks
2 x Antenna Ports1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.21 x Optical SPDIF Out3 x USB 3.1 Gen2 Type-A1 x USB 3.1 Gen2 Type-C4 x USB 3.1 Gen13 x RJ-45 LAN1 x Clear CMOS ButtonHD Audio Jacks - Internal I/O Connectors
- 1 x TPM, 1 x Power LED & Speaker, 2 x RGB LED, 1 x Addressable LED, 1 x CPU Fan, 1 x CPU/Water Pump Fan, 6 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x 4 pin 12V, 1 x Front Audio, 1 x Thunderbolt AIC
1 x TPM1 x Power LED & Speaker2 x RGB LED1 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan6 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio1 x Thunderbolt AIC - CPU Support
- Click here for CPU support
See manufacturers link (next to product images) - Package Type
- Retail
- Package Weight
- 2.6100 kg
- Graphics Ports
- 1 x HDMI , 1 x DisplayPort 1.2
1 x HDMI 1 x DisplayPort 1.2 - Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
Yes (M.2) - No. LAN Ports
- 3 x LAN
- Max LAN Speed
- 10GB LAN
- RGB Lighting
- Yes
Yes (RGB)
