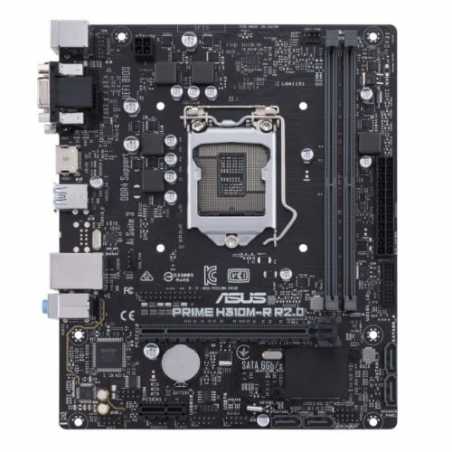

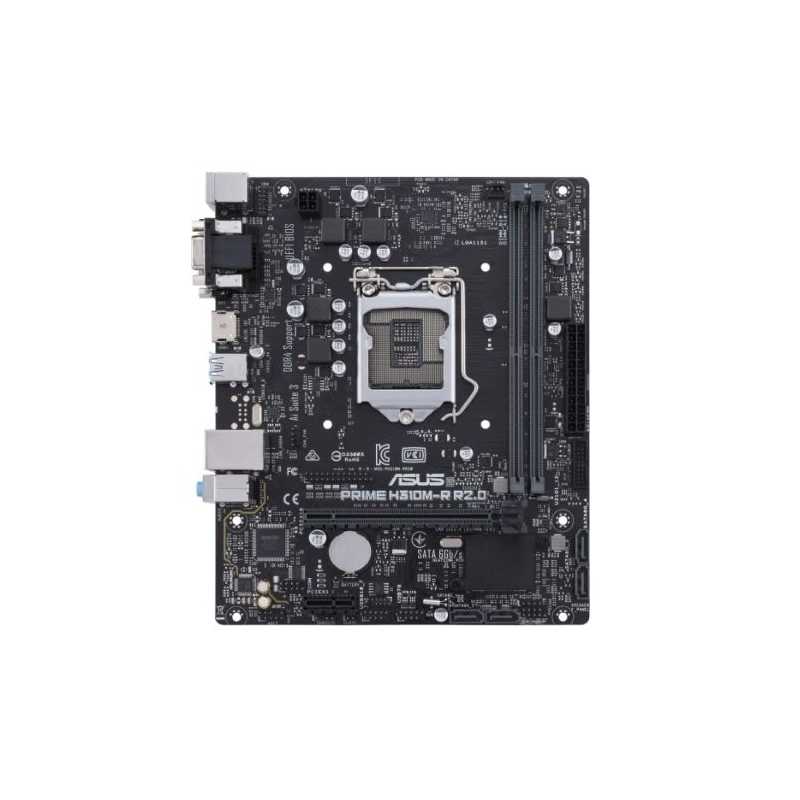

Asus PRIME H310M-R R2.0, Intel H310, 1151, Micro ATX, 2 DDR4, VGA, DVI, HDMI, White Box

Data sheet

.

1 x 14-1 pin TPM1 x System panel1 x Clear CMOS

PCI Express

1 x PCIe 3.0 x16 slot (at x16 mode)1 x PCIe 2.0 x1 slot

Wireless

-

RAM Speeds

2666 / 2400 / 2133 MHz

USB Ports Supported

4 x USB 3.1 Gen1 (2 at back, 2 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)

Storage

4 x SATA III

RAID

-

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Micro ATX

Socket

Intel 1151 - Coffee Lake

Chipset

Intel H310

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

32GB

Multi-GPU Support

-

PCI

-

LAN

GB LAN

Audio

Realtek ALC887 8-channel high definition audio CODEC

Back Panel I/O Ports

1 x PS/2 keyboard1 x PS/2 mouse2 x USB 3.1 Gen 12 x USB 2.01 x HDMI1 x D-Sub1 x DVI-D1 x LAN (RJ-45)3 x Audio jacks

Internal I/O Connectors

1 x USB 3.1 Gen 12 x USB 2.04 x SATA 6.0Gb/s1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x COM1 x Front audio1 x LPT1 x Speaker1 x Chassis Intrusion1 x 24-pin EATX1 x 4-pin ATX 12V

CPU Support

Click here for CPU support

Package Type

OEM

Package Weight

0.7700 kg

Graphics Ports

1 x VGA1 x DVI-D1 x HDMI

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN

RGB Lighting

No

PCI/PCI Express

1 x PCIe 3.0 x16 slot (at x16 mode)1 x PCIe 2.0 x1 slot
