- Out of stock

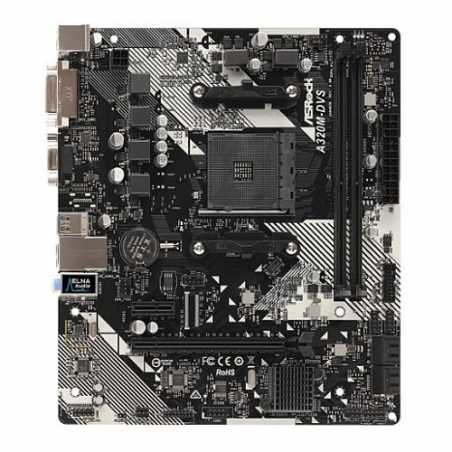

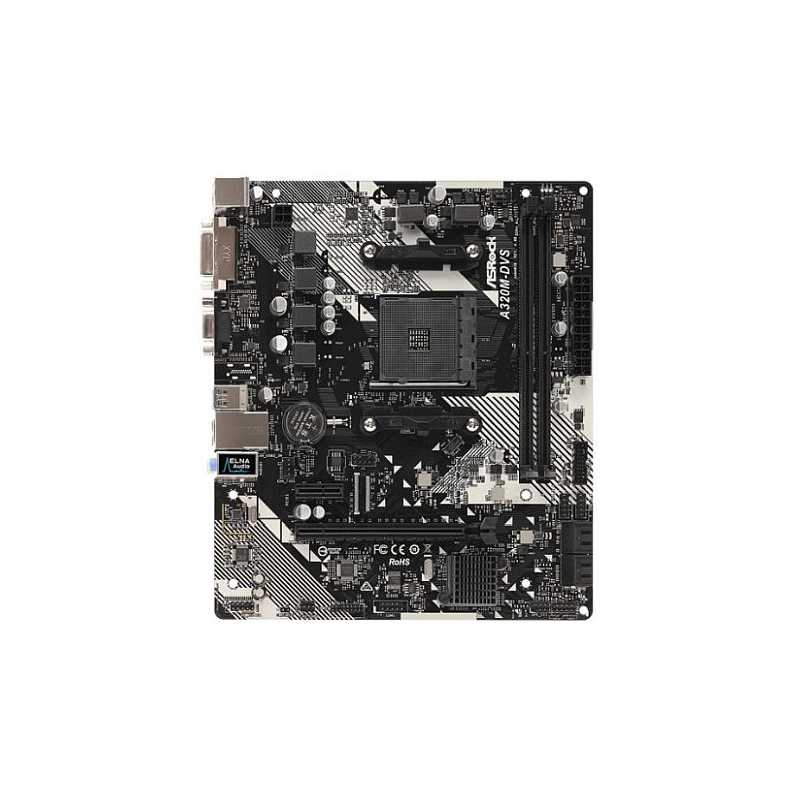

Asrock A320M-DVS R4.0, AMD A320, AM4, Micro ATX, 2 DDR4, VGA, DVI
£48.57
VAT included
- AMD AM4 Socket
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a DVI + D-SUB combo, you have more graphics output options now.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
- AMD AM4 Socket
- 2 DIMMs, Supports DDR4 3200+(OC)*
- 1 PCIe 3.0 x16, 1 PCIe 2.0 x1
- Graphics Output : DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec), ELNA Audio Caps
- 4 SATA3
- 6 USB 3.1 Gen1 (2 Front, 4 Rear)
- Realtek Gigabit LAN
Super Alloy Motherboard
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Gigabit LAN
This ASRock motherboard uses a Realtek gigabit LAN chip to support extremely fast internet connections.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a DVI + D-SUB combo, you have more graphics output options now.
Solid Capacitor Design
ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
A320M-DVS R4.0
Data sheet
- PCI Express
- 1 x PCIe 3.0 x161 x PCIe 2.0 x1
- Wireless
- -
- RAM Speeds
- 3200+(OC) / 2933(OC) / 2667 / 2400 / 2133 MHzRefer to manufacturers link for CPU related variations
- Accessories
- Quick Installation GuideSupport CDI/O Shield2 x SATA Data Cables
- USB Ports Supported
- 6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
- Storage
- 4 x SATA III
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- AMD AM4
- Chipset
- AMD A320
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard1 x D-Sub1 x DVI-D2 x USB 2.04 x USB 3.1 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port1 x TPM1 x Chassis Intrusion and Speaker1 x CPU Fan2 x Chassis Fan1 x 24 pin ATX1 x 4 pin 12V1 x Front Audio2 x USB 2.01 x USB 3.1 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.8600 kg
- Graphics Ports
- 1 x VGA1 x DVI-D
- Additional Features
- See Overview
- Graphics
- Vega Series Graphics in Ryzen Series APUR-Series Graphics in A-series APU
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 3.0 x161 x PCIe 2.0 x1
- Memory Slots
- 2 Slots
- CPU Compatibility
- AMD Ryzen
- M.2 Compatibility
- No
- USB C
- No
