- Out of stock

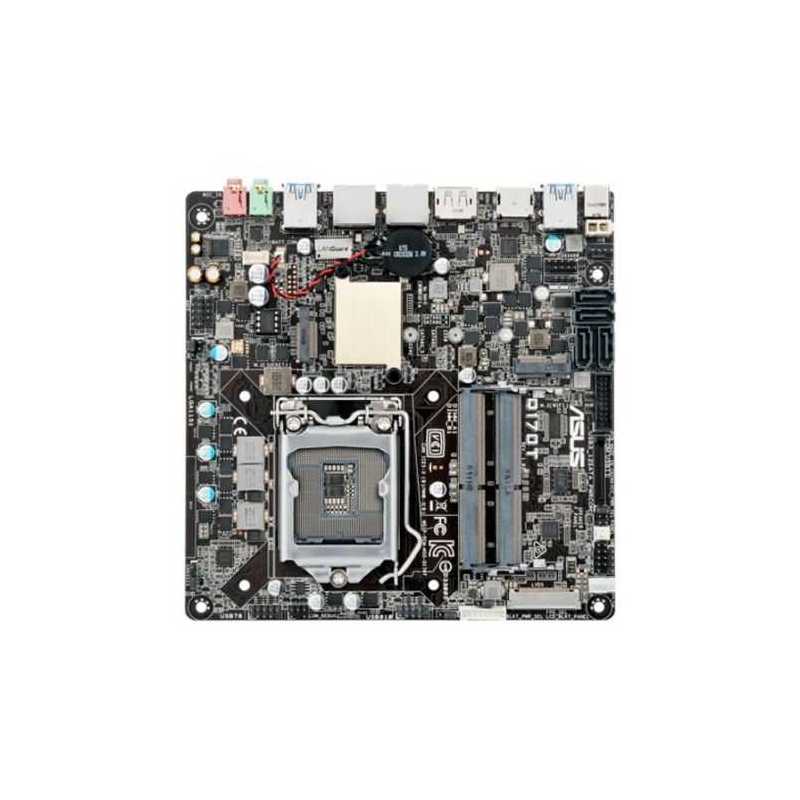

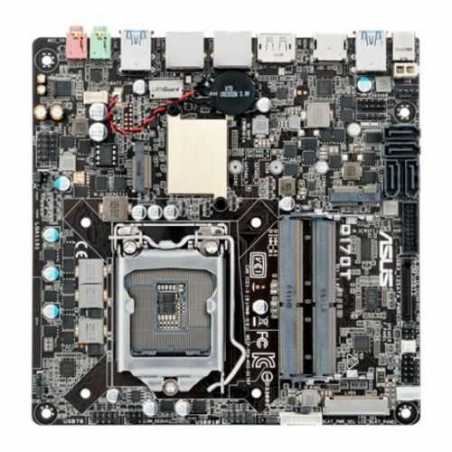

Asus Q170T, Intel Q170, 1151, Thin Mini ITX, DDR4 SODIMM, Dual GB LAN, HDMI, DP, DC Power, M.2
£129.11
VAT included
Full-featured, thin-client mini-ITX Q170 choice for DIY AIO PCs or ultra-slim systems, with 5X Protection II for dependable stability, DDR4 SO-DIMM support and EZ Flash 3 quick BIOS updates.
- 5X Protection II – Advanced hardware safeguards for all-round protection
- Support 12V and 19V input via back-panel DC-in jack
- AI Suite 3: One-stop access to innovative ASUS features
- Fan Xpert: Dedicated CPU and case fan controls
Dependable Stability
______________________________________________________________
5X Protection II
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
LANGuard
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
Overvoltage Protection
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
DRAM Overcurrent Protection
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
DIGI+ VRM
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
Stainless-Steel Back I/O
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance
______________________________________________________________
DDR4 Support
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced Mode
GPU POST:
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase:
Restore your SSDs to factory-fresh condition.
Last Modified Log:
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming:
Rename SATA ports for easy identification.
Ultrafast Transfer Speed
______________________________________________________________
______________________________________________________________
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
M.2
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating
system or application drive, making your whole PC or professional apps work as fast as possible.
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating
system or application drive, making your whole PC or professional apps work as fast as possible.
Optimized Cooling
______________________________________________________________
Fan Xpert 2+
Advanced fan controls
______________________________________________________________
Fan Xpert 2+
Advanced fan controls
With onboard thermal detection and hardware-level 4-pin/3-pin PWM/DC mode, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
- Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
- RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix
Full-featured, thin-client mini-ITX Q170 choice for DIY AIO PCs or ultra-slim systems, with 5X Protection II for dependable stability, DDR4 SO-DIMM support and EZ Flash 3 quick BIOS updates.
- 5X Protection II – Advanced hardware safeguards for all-round protection
- Support 12V and 19V input via back-panel DC-in jack
- AI Suite 3: One-stop access to innovative ASUS features
- Fan Xpert: Dedicated CPU and case fan controls
Dependable Stability
Advanced Hardware Safeguards
Industry-leading 5X Protection II employs the finest components, excellent circuit design, and exacting standards to guarantee quality and long-term durability of your motherboard with all-round protection. For you, that means exceptional protection and stability for your build — the result of decades of engineering experience from the world's leading motherboard brand.
Pumped-up throughput. 2.5X higher surge tolerance.
ASUS LANGuard is hardware-level networking protection that employs signal-coupling technology and premium anti-EMI surface-mounted capacitors ensuring a more reliable connection and better throughput, plus electrostatically-guarded and surge-protected components for greater tolerance to static electricity and improved protection against surges.
World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your chipset, connectivity ports, and audio codecs from damage caused by unexpected high-level voltages from unstable or inferior power supplies.
Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of both your system and connected devices.
Precision control for stable power
ASUS-exclusive DIGI+ VRM intelligently delivers power to the processor based on real-time demands, reducing energy waste and improving system stability.
3X corrosion-resistance for greater durability
Corrosion-resistant stainless steel back I/O panels bonded with chromium oxide have a lifespan that's three times (3X) longer than ordinary panels.
Superb Performance
Make your memory go faster
With DDR4, you'll accelerate memory frequencies up to an incredible to 2133MHz! And ASUS works with almost every DDR4 memory vendor, so you're assured the best compatibility.
Media-acclaimed UEFI BIOS
The smoothest, slickest mouse-controlled graphical BIOS has been improved to make it even more appealing. Whether you're a PC novice or a seasoned overclocker, the EZ and Advanced Modes help you find your way, quickly and easily.
EZ Flash 3
Update the latest BIOS via the internet, and from within the BIOS.
S.M.A.R.T
Check up your storages devices' Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T) logs to gauge reliability, and even determine if they're about to fail.
Q-Fan Control
You can configure the fan's operating speed manually, or use the easy pre-configured fan profiles to select Standard, Silent, Turbo, or Full Speed modes!
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Mode
Intuitive Graphical Fan Control:
Fine-tune individual fans simply by dragging a curve with the mouse.
EZ XMP:
Improve your DRAM performance with a click.
SATA Information:
View SATA port details for easy device recognition.
Fast Clock Adjustment:
Use mouse controls to change the time and date.
Advanced Mode
GPU POST:
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase:
Restore your SSDs to factory-fresh condition.
Last Modified Log:
Track last change and save preferred profiles onto a USB drive.
SATA Port Renaming:
Rename SATA ports for easy identification.
Ultrafast Transfer Speed
Instant front-panel USB 3.0 Experience
We've put USB 3.0 right where you need it — four super-speed ports on the front panel. Experience data-transfer speeds up to 10X faster than USB 2.0 with instant plug-and-play connectivity, so no more back-breaking contortions in the hunt for hard-to-reach rear ports!
M.2
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating
system or application drive, making your whole PC or professional apps work as fast as possible.
With x4 PCI Express 3.0/2.0 bandwidth, M.2 supports up to 32Gbit/s data-transfer speeds. It is the perfect choice for an operating
system or application drive, making your whole PC or professional apps work as fast as possible.
Optimized Cooling
Advanced fan controls
With onboard thermal detection and hardware-level 4-pin/3-pin PWM/DC mode, Fan Xpert 2+ makes sure every fan achieves the best balance of cooling performance and low noise!
- Auto-Tuning Mode: Scans and detects all fan characteristics for single-click customization.
- RPM Fixed Mode: Lowers noise levels to near-0dB silence, allowing to you fix the fan speed.
One-Stop Control
One-stop access to innovative ASUS features
ASUS AI Suite 3 offers a brand-new user experience through a clearer and more attractive interface with support for larger monitors. It consolidates all exclusive ASUS features into one simple-to-use package, allowing you to supervise overclocking, energy consumption, fan speeds, voltages and more. This all-in-one app offers diverse and easy to use functionality, with no need to switch back and forth between different utilities.
Intel CPU and chipset features
Intel Q170 Chipset
The Intel® Q170 is a single-chipset design that supports 6th-generation Intel LGA1151 Core™ i7 / Core i5 / Core i3 / Pentium® / Celeron® processors. It provides improved performance by utilizing serial point-to-point links, allowing increased bandwidth and stability. It natively supports up to 10 USB 3.0, six SATA 6Gbit/s ports, and PCIe 3.0 lane speed support for faster data retrieval. Intel® Q170 chipset also supports iGPU functionality, so you'll enjoy the very latest Intel integrated graphics performance.
Ready for 6th-generation Intel LGA1151 Core i7/Core i5/Core i3/Pentium/Celeron processors
This motherboard supports 6th-generation Intel Core i7/i5/i3/Pentium/Celeron processors in the LGA1151 package, with graphics, memory and PCI Express controllers integrated to support onboard graphics output with dedicated chipsets, two-channel (4-DIMM) DDR4 memory and 16 PCI Express 3.0/2.0 lanes for great graphics performance.
Intel® vPro
Intel® vPro™ Technology allows IT organizations to remotely manage corporate PCs, even when they are powered off or with non-functional operating systems. It features Intel® Active Management Technology and offers a lighter-weight form of virtualization to audit all Intel® AMT-based platforms in a networked environment. PCs with Intel® vPro™ Technology allow IT departments to remotely retrieve assets and hardware/software inventories, contain security threats, resolve system problems, and increase the uptime of desktops with lower maintenance costs.
Intel® SBA support
Intel® SBA (Small Business Advantage) is a combination of hardware and software that provides unique security and productivity capabilities designed for small businesses. Intel® SBA requires MEI drivers (AMT host software kit) be installed.
Platform requirements:
Windows® 7 (32/64-bit) / 8.1 (64-bit) / 10 (64-bit)
PCH with 6th-generation Intel® Core™ processor (100 Series platforms) with 6.5MB Intel® Management Engine (ME) 11.0 firmware installed
CPU and chipset requirements:
Intel® Core™ i3/i5/i7 with one of these chipsets: B150, H170, Q170
The Intel® Management Engine software kit must be installed (the Local Manageability Service and the Intel ® Management Engine Interface must be installed and running.)
*Local administrator rights on the target machine
*Some models without the 6.5MB Intel® Management Engine firmware do not support Intel ® SBA. Please refer to the specifications sheet for details.
*Visit the ASUS website at www.asus.com for the latest CPU QVL (Qualified Vendors List).
Build slim. Build with Q170T
Want to build a DIY PC without the depth? Then you need Q170T– the first Skylake Thin Mini-ITX motherboard from ASUS. Measuring less than 2.5cm tall and with a built-in connector for external DC power, it is the perfect choice for all-in-one (AIO) PCs and other slimline builds. Building ‘thin' is simpler than you might think.
90MB0QS0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS1 x eDP/LVDS switch1 x DIS ME1 x 2-pin internal DC power1 x Stereo speaker1 x DMIC1 x Backlight inverter voltage selection1 x FPD brightness1 x Panel voltage selection1 x Panel off1 x eDP1 x LVDS1 x System panel
- PCI Express
- -
- Wireless
- -
- RAM Speeds
- 2133 MHz
- Accessories
- Users manualI/O ShieldThin Mini ITX I/O Shield1 x SATA power cable2 x SATA 6Gb/s cable(s)2 x M.2 Screw Package1 x Supporting DVD
- USB Ports Supported
- 6 x USB 3.0 ports (4 at back)5 x USB 2.0 ports (5 at mid-board)
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- -
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Thin Mini ITX
- Socket
- 1151 - Sky Lake / Kaby Lake
- Chipset
- Intel Q170
- DDR Type
- DDR4 SO-DIMM
- RAM Technology
- DDR4 SO-DIMM (Dual Channel)
- RAM Slots
- 2 x SODIMM
- Maximum Memory
- 32GB
- Multi-GPU Support
- -
- PCI
- -
- LAN
- Dual GB LAN
- Audio
- Realtek ALC887-VD 8-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 1 x DisplayPort1 x HDMI2 x LAN (RJ45)4 x USB 3.02 x Audio jacks1 x DC power connector
- Internal I/O Connectors
- 2 x USB 3.0 connectors3 x USB 2.0 connectors1 x M.2 Socket 1 with E key1 x M.2 Socket 3 for M Key1 x COM port4 x SATA 6Gb/s1 x SATA power1 x CPU Fan1 x Chassis Fan1 x Front audio1 x Internal speaker1 x Chassis Intrusion
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 0.3800 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes
