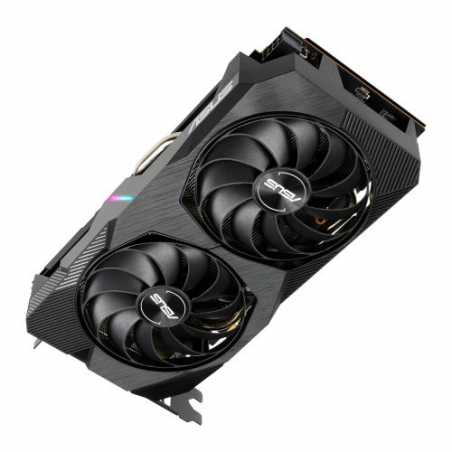

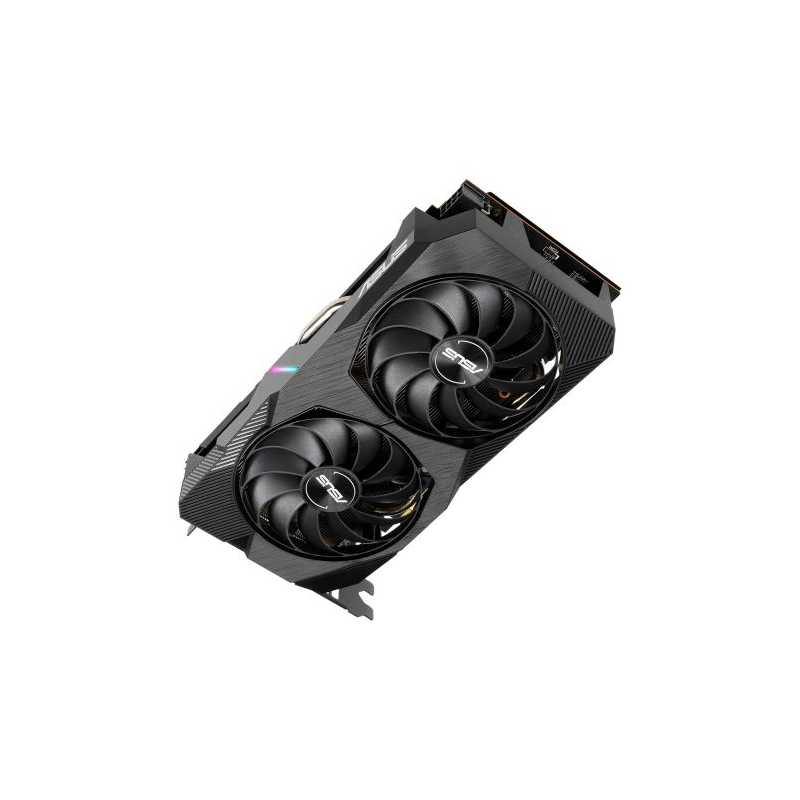

The ASUS Dual Radeon™ RX 5500 XT EVO offers a plug-and-play 1080p gaming experience
- OC Edition: Boost Clock ~1865 MHz (OC Mode)/ ~1845Mhz (Gaming Mode)
- Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.
- 0dB Technology lets you enjoy light gaming in relative silence.
- IP5X dust resistance offers protection from particle ingress for better durability.
- Auto-Extreme Technology uses automation to enhance reliability.
- A protective backplate secures components during transportation and installation.
- A 144-hour validation program puts cards through a series of stringent tests to ensure compatibility with the latest games.
90YV0DV2-M0NA00
Data sheet
- Warranty
- 3 Years
- Multi-GPU Support
- None
- Package Type
- Retail
- Package Weight
- 0.0000 kg
2.0000 kg
- Dimensions
- 24.2 x 13 x 4.9 cm
- Resolution
- Digital Max Resolution: 7680 x 4320
- Interface
- PCI Express 4.0 (backwards compatible with 3.0)
- Features
- See Overview
- Chipset Manufacturer
- AMD
- Graphics Chipset
- AMD RX 5500 XT
- Memory Size
- 4GB
- Memory Type
- DDR6
- Memory Interface
- 128-bit
- Core Clock
- OC Mode1737 MHz (Game clock)1865 MHz (Boost clock)Gaming Mode1733 MHz (Game clock)1845 MHz (Boost clock)
- CUDA Cores / Stream Processors
- 1408 Stream Processors
- Outputs
- 1 x HDMI 2.0b3 x DisplayPort 1.4
- HDCP Support
- Yes
- Cooling
- Axial-tech Fan Design0dB TechnologyIP5X Dust Resistance
- PSU Requirements
- 450W or greater recommended
- Slot Size
- 2.5 Slots
- Connectors Required
- 1 x 8-pin PCIe power
- Memory Clock
- 14 Gbps
- Max Display Support
- 4
- Bundled Software
- GPU Tweak IIwtfastXSplitQuantumcloudRadeon Software
- DisplayPort
- Yes (DisplayPort)
- HDMI
- Yes (HDMI)
