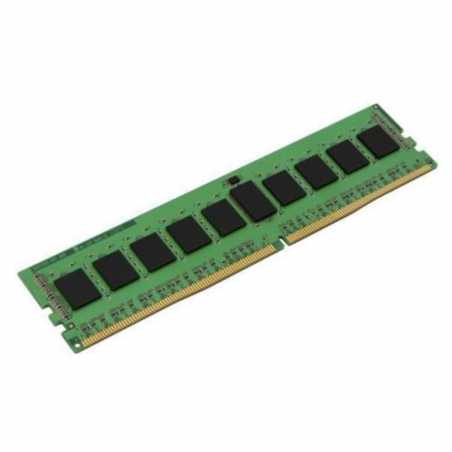

Kingston 32GB, DDR4, 3200MHz (PC4-25600), CL22, DIMM Memory
£59.67
VAT included
Delivered within 1-2 days.
ValueRAM's KVR32N22D8/32 is a 4G x 64-bit (32GB) DDR4-3200 CL22 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. Each 288-pin DIMM uses gold contact fingers.
- Power Supply: VDD = 1.2V Typical
- VDDQ = 1.2V Typical
- VPP = 2.5V Typical
- VDDSPD = 2.2V to 3.6V
- Nominal and dynamic on-die termination (ODT) for data, strobe, and mask signals
- Low-power auto self refresh (LPASR)
- Data bus inversion (DBI) for data bus
- On-die VREFDQ generation and calibration
- Dual-rank
- On-board I2 serial presence-detect (SPD) EEPROM
- 16 internal banks; 4 groups of 4 banks each
- Fixed burst chop (BC) of 4 and burst length (BL) of 8 via the mode register set (MRS)
- Selectable BC4 or BL8 on-the-fly (OTF)
- Fly-by topology
- Terminated control command and address bus
- PCB: Height 1.23” (31.25mm)
- RoHS Compliant and Halogen-Free
KVR32N22D8/32
9 Items
Data sheet
- Warranty
- Lifetime
- DDR Type
- DDR4
- Package Type
- Blister Pack
- Package Weight
- 0.0225 kg
- Heatsink
- No
- Series
- Kingston ValueRAM
- Size
- 1 x 32GB
- Speed
- 3200 MHz
- Compliance
- PC4-25600
- Pins
- 288-pin
- CAS Latency
- CL22
- Data Integrity Check
- Non-ECC
- Voltage
- 1.2V
- Additional Information
- See Overview
- Timings
- 22-22-22
- LED Lighting
- No
- Individual Module Size
- 32GB
- Total Capacity
- 32GB Total
