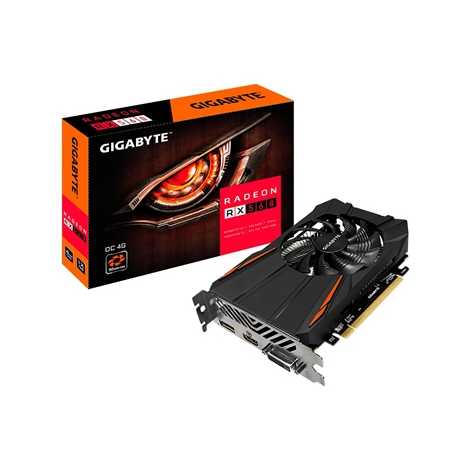

Gigabyte Radeon RX 560 OC 4GB Single Fan Graphics Card

Features
Powered by Radeon RX 560(14CU)
Integrated with 4GB GDDR5 128bit memory
90mm Unique Blade Fan Design
One-click Super Overclocking
Supports HDMI 4K@60Hz and DP 8K@60Hz
Hardware-accelerated H.265 encode/decode

Core Clock
OC mode: 1199 MHz
Gaming mode: 1189 MHz
(Reference clock: 1176 MHz )

GIGABYTE CUSTOM-DESIGNED COOLER
The custom-designed cooler introduced a 90mm unique-blade fan along with the aluminum base, delivering an effective heat dissipation capacity for higher performance at lower temperatures.

UNIQUE BLADE FAN DESIGN
The airflow is spilt by the triangle fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the air flow.

ULTRA DURABLE COMPONENTS
Engineered with the high-quality chokes and capacitors, this graphic card delivers outstanding performance and durable system lifespan.

SMOOTH AND CRISP VISUAL
Equipped with one Dual-link DVI-D, one DP, and one HDMI ports, the card can support 3 displays and deliver smooth 4K video playback.

Specifications

Graphics Processing
Radeon RX560

Core Clock
OC mode: 1199 MHz
Gaming mode: 1189 MHz
(Reference clock: 1176 MHz )

Stream Processors
896(14CU)

Process Technology
14 nm

Memory Clock
7000 MHz

Memory Size
4 GB

Memory Type
GDDR5

Memory Bus
128 bit

Card Bus
PCI-E 3.0 x 8

Digital Max Resolution
7680x4320@60Hz

Multi-View
3

Card Size
H=29.2 L=170 W=114.6 mm

PCB Form
ATX

DirectX
12

OpenGL
4.5

Recommended PSU
400W

Output

Dual-link DVI-D *1
HDMI-2.0b*1 (Max Resolution: 4096x2160 @60 Hz
Display Port-1.4 *1 (Max Resolution: 7680x4320 @60 Hz)
