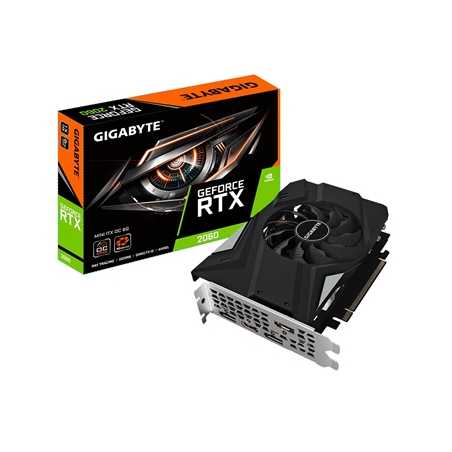

Gigabyte Nvidia GeForce RTX 2060 Mini ITX OC 6GB Single Fan Graphics Card
£344.70
VAT included
Powered by GeForce RTX 2060
Integrated with 6GB GDDR6 192-bit memory interface
90mm unique blade fan
170 mm compact card size
1695 MHz (Reference card: 1680 MHz)
GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM
GIGABYTE Custom-designed cooling system features a 90mm unique blade fan, 3 copper composite heat-pipes with direct touch GPU and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
TINY SIZE WITH MIGHTY PERFORMANCE. AT ONCE.
For users who prefer small chassis and expect strong performance, GIGABYTE delivers with the new 170mm length GeForce RTX 2060 MINI ITX OC graphics card. Not only does the MINI ITX embed powerful GeForce RTX 2060 graphics processing to provide gamers with the best experience in each gaming masterpiece, but its also easily installed in smaller sized chassis. You never have to worry about the card you purchased not fitting into the chassis.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPES
The composite heat-pipes combine thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increase cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses the 4+2 power phase design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life.
AORUS ENGINE
The cutting edge intuitive interface allows you to adjust the clock speed, voltage, fan performance and power target in real-time according to your games requirements.
Specifications
Graphics Processing
GeForce RTX 2060
Core Clock
1695 MHz (Reference card: 1680 MHz)
RTX-OPS
37
CUDA Cores
1920
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
336 GB/s
Card Bus
PCI-E 3.0 x 16
Digital Max Resolution
7680x4320@60Hz
Multi-View
4
Card Size
L=170 W=121.3 H=36.4 mm
PCB Form
ATX
DirectX
12
OpenGL
4.5
Recommended PSU
500W
Power Connectors
8 Pin*1
Output
DisplayPort 1.4 *3
HDMI 2.0b *1
SLI Support
No
Accessories
1. Quick guide
2. Driver CD
