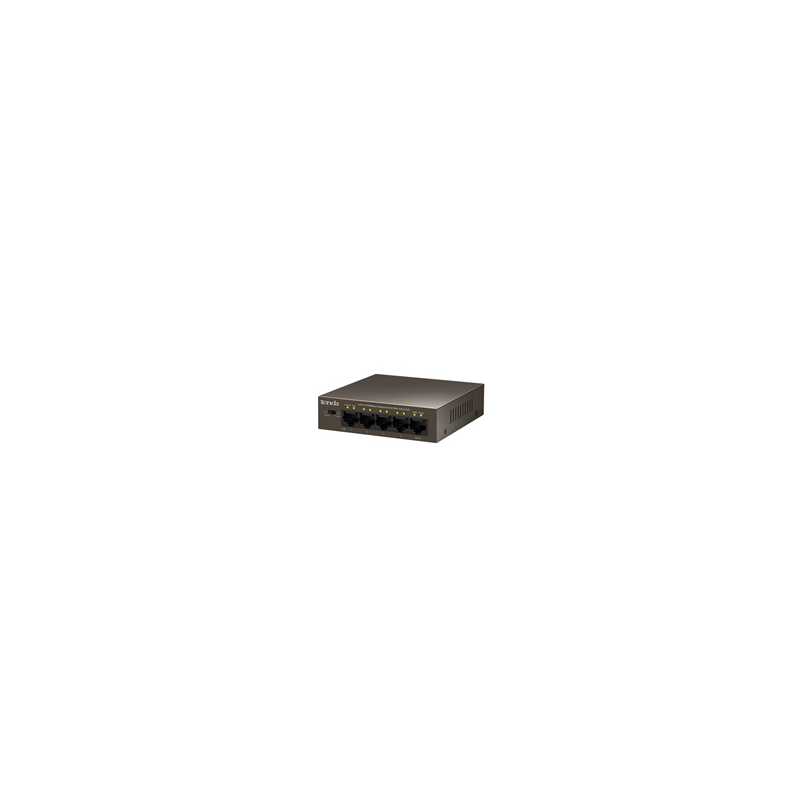

TEF1105P-4-63W is a 5-port 10/100Mbps unmanaged switch that requires no configuration and provides 4 PoE ports. It can automatically detect and supply power to all IEEE 802.3af/at-compliant Powered Devices (PDs).
Standard & Protocol
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at
Interface
5 x 10/100Mbps auto-negotiation ports, port1 to port4 support IEEE802.3 at/af PoE standard
Network Media
10BASE-TX: UTP category 5, 5e cable (250m)
100BASE-TX: UTP category 5, 5e cable (150m)
Forwarding Mode
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port
Backbound Bandwidth
1Gbps
MAC Address Table
1K
Transmission Mode
Store-And-Forward
Indicator
5 x Link/Act
4 x PoE Status
1 x Power
1 x 100Mbps
Input Power
External Power Supply: DC: 51V/1.25A
Consumption
2 Watts (max. no PD connected)
63 Watts (max. with 58W PD connected)
Dimension ( L x W x H )
100 x 100 x 26 mm
Weight
<2kg
PoE Total Power
58W
Humidity
10%90%RH (non-condensing)
Certification
FCC/CE/RoHS/EAC/BIS/RCM
