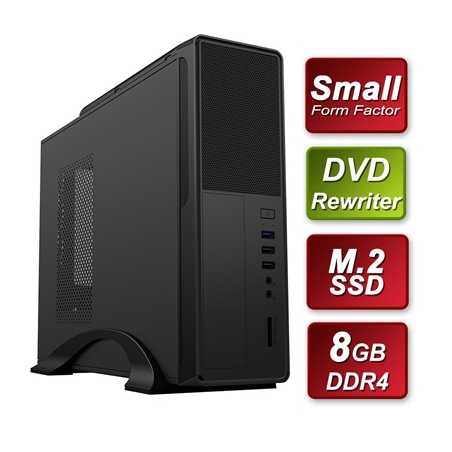

Small Form Factor AMD A10-9700 3.5GHz Quad Core 8GB RAM 256GB M.2 SSD w Wireless Network Card - Pre-Built System

Product Description
Small Form Factor AMD A10-9700 3.5GHz Quad Core 8GB RAM 256GB M.2 SSD w Wireless Network Card - Pre-Built System

Processor
AMD A10 9700 Bristol Ridge 3.5GHz Quad Core AM4 Socket Processor

Processor Cores
4

Processor Threads
4

Core Clock Speed
3.5GHz

Core Boost Speed
3.8GHz

Memory
Team Elite Plus No Heatsink (1x8GB) DDR4 2400MHz Black DIMM

Memory Configuration
1 x 8GB
2 Lanes (1 occupied)

SSD Drive
Team MS30 256GB M.2 2280 SATA III SSD

Format
M.2 SATA

Max Read/Write Speeds
Read: Up to 550MB/s
Write: Up to 470MB/s

Hard Drive
N/A

Optical Drive
LG (Hitachi-LG) GH24NSD5 24x DVDRW with M Disc Internal Optical Drive

Graphics
On-Chip AMD Radeon R7

Graphics Card I/O
N/A

Operating System
No O/S

Card Reader
Built-in Card Reader - SD/MMC/MS 3in1

Networking
Evo Labs PCI-Express Low Profile N300 WiFi Card with Detachable Antennas
Frequency: 2.412 - 2.472GHz
Signal Rate: 11n 300Mbps, 11g 54Mbps, 11b 111Mbps

Power Supply
300W Micro ATX PSU
20 + 4 Pin ATX: 1
+12V 4 Pin CPU: 1
4 Pin Molex: 2
SATA: 3
FDD: 1

Motherboard
ASRock A320M-HDV R4.0 AMD Socket AM4 Ryzen Micro ATX DDR4 D-Sub/DVI-D/HDMI Ultra M.2 USB 3.1 Motherboard

Expansion Slot
AMD Ryzen series CPUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD 7th A-Series APUs
1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
1 x PCI Express 2.0 x1 Slot
*Supports NVMe SSD as boot disks

Storage
4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Ryzen Series CPU) or Gen3 x2 (16 Gb/s) (with A-Series APU)*
*Supports ASRock U.2 Kit
Supports NVMe SSD as boot disks

Rear I/O
1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O
1 x Print Port Header
1 x COM Port Header
1 x TPM Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)*
2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin)
1 x 24 pin ATX Power Connector
1 x 4 pin 12V Power Connector
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
*The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

Chassis
CiT S014B Thin Client Micro ATX 1 x USB 3.0 / 2 x USB 2.0 Black Case with 300W PSU

Drive Bays
1 x 5.25" External
2 x 3.5" Internal
2 x 2.5" Internal
(1 x 2.5" uses a 3.5" bay)

IO Ports
1 x USB 3.0
2 x USB 2.0
1 x HD Audio (Also Supports AC'97)
1 x Microphone
SD/TF Card Reader Included (Built-in)

Cooling
Cooling Front: None
Cooling Top: Space For 1 x 80mm Fan (inc.)
Cooling Rear: None
Cooling Side: Vent
Cooling Bottom: Vent and Space for 1 x 50mm fan (Not Included) or SSD

Dimensions
100 x 306 x 403mm

Package Weight
4.5 kg

Warranty
3 Years; 1st year parts including collect and return (UK mainland only)
