- Out of stock

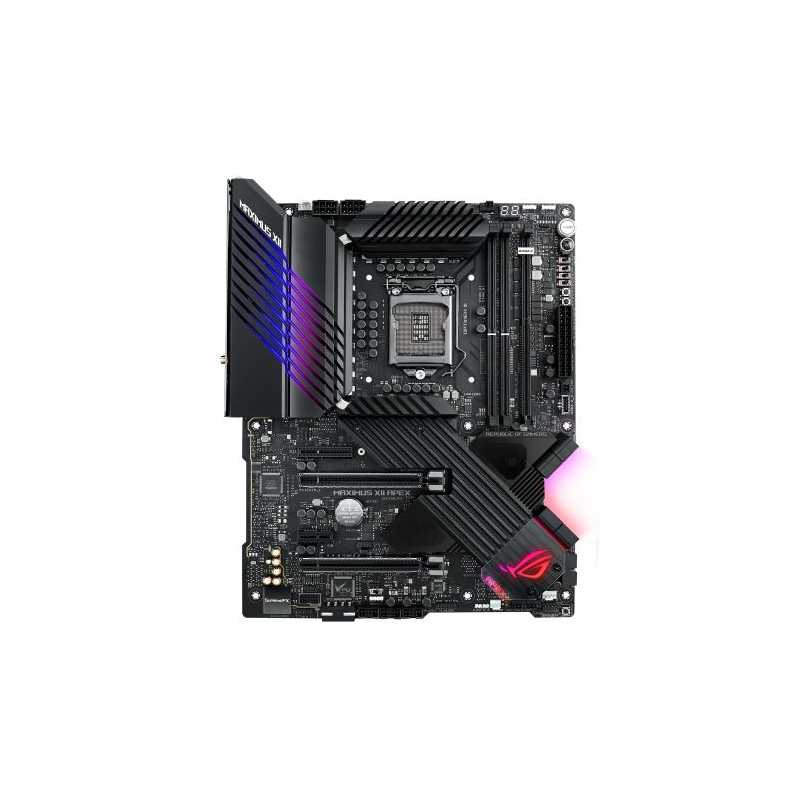

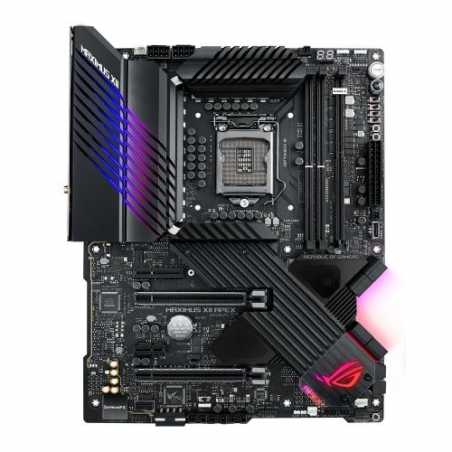

Asus ROG MAXIMUS XII APEX, Intel Z490, 1200, ATX, 2 DDR4, XFire/SLI, AX Wi-Fi, 2.5G LAN, RGB Lighting, M.2
£495.38
VAT included
Intel Z490 ATX motherboard for 10th Gen Intel Processor with extreme performance, 16 power stages, OptiMem III, triple M.2, on-board Wi-Fi 6 (AX201), 2.5 Gb Ethernet, USB 3.2 Gen 2, X-shaped PCB, Aura Sync RGB lighting
- LGA 1200 socket for 10th-gen Intel® Core™ desktop processors
- Built to Break Limits: Record-breaking performance, Overclocker's toolkit, condensation detection, OptiMem III, optimised trace layout
- Improved cooling: Integrated heatsink that covers I/O zone, VRM area, PCH area and U shaped 8 mm heatpipe.
- Next-gen connectivity: ROG DIMM.2 (dual M.2, total 3), onboard Intel® 2.5Gb Ethernet
- Customizable Aesthetics: Distinct X-shaped PCB, customisable name plate, Aura Sync, 1X 4-pin RGB headers, 2 addressable headers
- AI Enhancements: AI Overclocking and AI Cooling
- Built to Break Limits: Record-breaking performance, Overclocker's toolkit, condensation detection, OptiMem III, optimized trace layout
- Improved cooling: Integrated heatsink that covers I/O zone, VRM area, PCH area and U shaped 8 mm heatpipe.
- Next-gen connectivity: ROG DIMM.2 (dual M.2, total 3), onboard Intel® 2.5Gb Ethernet
- Customizable Aesthetics: Distinct X-shaped PCB, customizable name plate, Aura Sync, 1X 4-pin RGB headers, 2 addressable headers
- AI Enhancements: AI Overclocking and AI Cooling
90MB13D0-M0EAY0
Data sheet
- .
- 1 x USB 3.2 Gen 2 front panel1 x DIMM.2 Slot supports 2 M.22 x 4-pin Full Speed Fan3 x onboard LED ON/OFF1 x USB 3.2 Gen 11 x Q-Code1 x RGB1 x FS Mode switchW_IN, W_OUT, W_FLOWButtons: Clear CMOS, Safe Boot, ReTry, Start
- PCI Express
- Intel 10th Gen Processors2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)Intel Z490 Chipset1 x PCIe 3.0 x41 x PCIe 3.0 x1
- Wireless
- Intel Wi-Fi 6 AX201Wi-Fi Intel Wi-Fi 6Supports channel bandwidth: HT20/HT40/HT80/HT160Up to 1.73Gbps transfer speed2 x 2 Wi-Fi 6 with MU-MIMOSupports dual frequency band 2.4/5GHzBluetooth v5.1
- RAM Speeds
- 4800(O.C.)/4700(O.C)/4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2133 MHz
- Accessories
- 1 x ROG big sticker1 x Q-Connector3 x M.2 screw kit1 x Wi-Fi Antenna1 x Ext Cable for RGB strips1 x Ext cable for Addressable LED1 x ROG coaster1 x Customizable Name Plate Accessory Pack1 x ROG Thank you card1 x ROG DIMM.2 with heatsink1 x M.2 Pad for ROG
- USB Ports Supported
- 5 x USB 3.2 Gen2 (4 Type-A & 1 Type-C at back)7 x USB 3.2 Gen1 (5 at back, 2 at mid-board)5 x USB 2.0 (at mid-board)1 x USB 3.2 Gen 2 front panel connector
- Storage
- Intel Z490 ChipsetROG DIMM.2 Module supports 2 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280) - PCIe6 x SATA IIIASMedia SATA 6Gb/s controller2 x SATA III
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel Z490
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports NVIDIA 2-Way SLI TechnologySupports AMD 2-Way CrossFireX Technology
- LAN
- 2.5GB LAN & GB LAN
- Audio
- ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x PS/2 keyboard1 x PS/2 mouse1 x LAN (RJ45)4 x USB 3.2 Gen 21 x USB 3.2 Gen 2 Type-C5 x USB 3.2 Gen 11 x Optical S/PDIF out1 x Clear CMOS button1 x USB BIOS FlashBack Button1 x ASUS Wi-Fi GO! module5 x Gold-plated audio jacks
- Internal I/O Connectors
- 1 x Node2 x Aura Addressable Strip1 x ReTry jumper3 x USB 2.01 x S/PDIF out2 x 8-pin EATX 12V1 x 4-pin EZ_PLUG1 x Front audio1 x LN2 Mode jumper1 x System panel1 x W_Pump+1 x AIO PUMP
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
