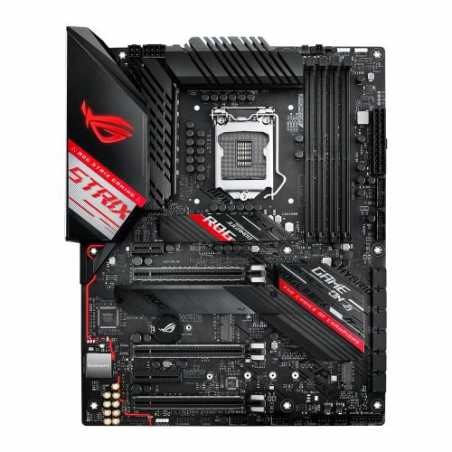

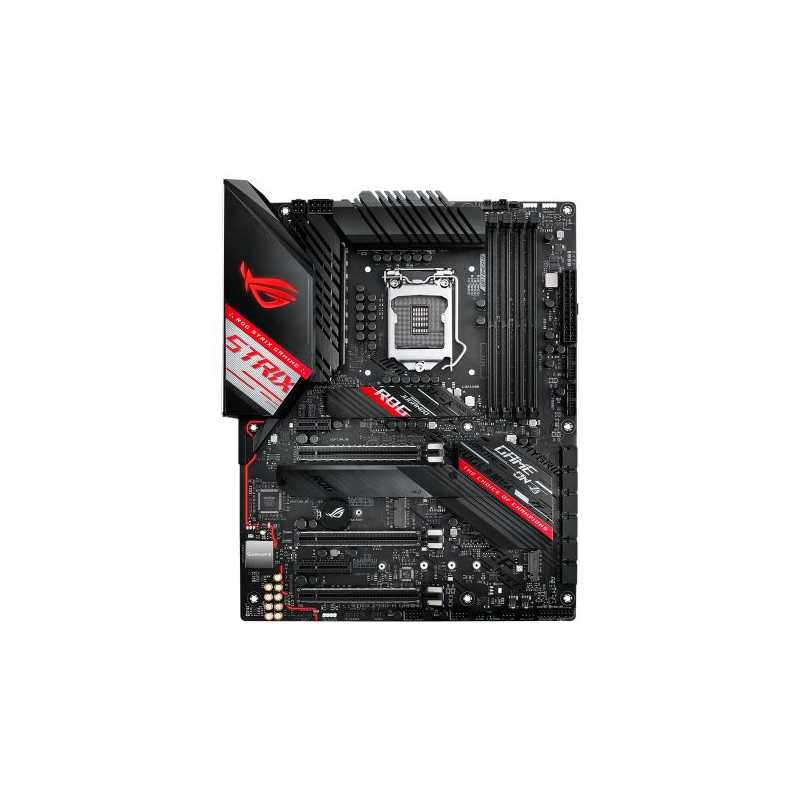

Asus ROG STRIX Z490-H GAMING, Intel Z490, 1200, ATX, 4 DDR4, XFire, HDMI, DP, 2.5G LAN, M.2

Data sheet

.

1 x VRM_HS_FAN

PCI Express

Intel 10th Gen Processors3 x PCIe 3.0 x16 (x16 or x8+x4+x4)Intel® Z490 Chipset1 x PCIe 3.0 x4 (max at x2 mode)1 x PCIe 3.0 x1

Wireless

M.2 slot only (Key E) - Wi-Fi module is sold separately

RAM Speeds

4600(O.C)/4500(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz

Accessories

1 x ASUS Fan Holder4 x SATA 6Gb/s cableS 1 x ROG Strix stickers1 x Cable ties pack1 x Ext Cable for RGB strips1 x Ext cable for Addressable LED1 x Thermistor cable1 x ROG Thank you card1 x 2-in-1 Rubber pad1 M.2 SSD screw package1 M.2 Key E screw package1

USB Ports Supported

2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)5 x USB 2.0 (1 at back, 4 at mid-board)

Storage

6 x SATA III1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 (2242/2260/2280/22110 - SATA & PCIe

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

ATX

Socket

Intel 1200

Chipset

Intel Z490

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

4 x DIMM

Maximum Memory

128GB

Multi-GPU Support

Supports AMD 2-Way CrossFireX Technology

LAN

2.5GB LAN

Audio

ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A

Back Panel I/O Ports

1 x Intel I225-V 2.5Gb Ethernet1 x DisplayPort1 x HDMI2 x USB 3.2 Gen24 x USB 3.2 Gen11 x USB 2.01 x Optical S/PDIF out1 x USB BIOS FlashBack Button5 x Gold-plated audio jacks

Internal I/O Connectors

1 x M.2_FAN1 x CPU Fan1 x CPU OPT Fan2 x Chassis Fan1 x AIO_PUMP1 x Addressable RGB1 x AAFP2 x Aura RGB Strip2 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 1 with M Key1 x M.2 Socket 2 with M key

CPU Support

Click here for CPU support

Package Type

Retail

Package Weight

1.7900 kg

Graphics Ports

1 x HDMI1 x DisplayPort

Additional Features

See Overview

Graphics

Supports Intel HD Graphics

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

2.5GB LAN

PCI/PCI Express

Intel 10th Gen Processors3 x PCIe 3.0 x16 (x16 or x8+x4+x4)Intel® Z490 Chipset1 x PCIe 3.0 x4 (max at x2 mode)1 x PCIe 3.0 x1
