- Out of stock

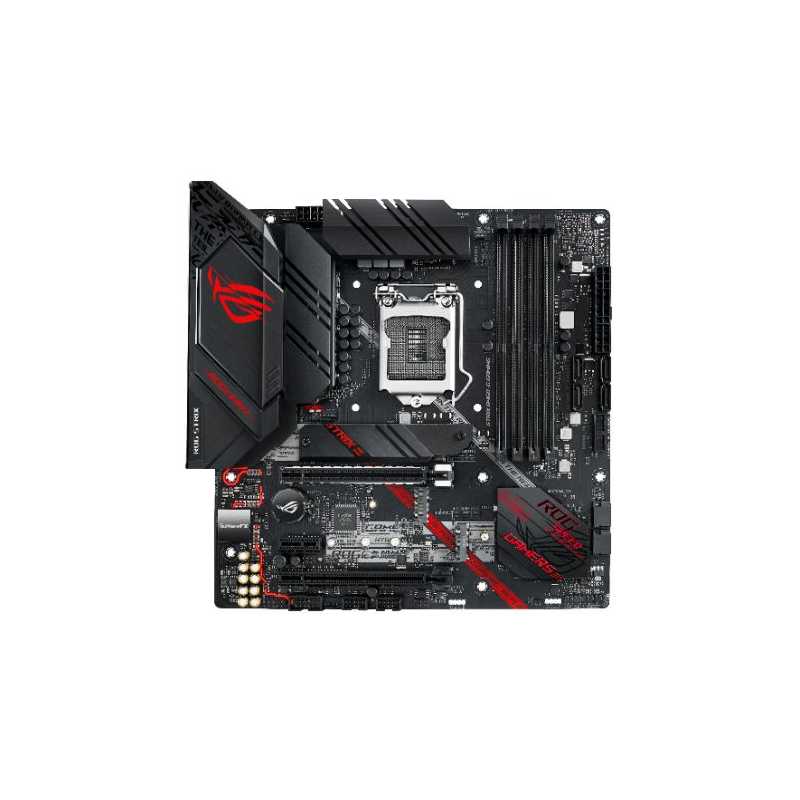

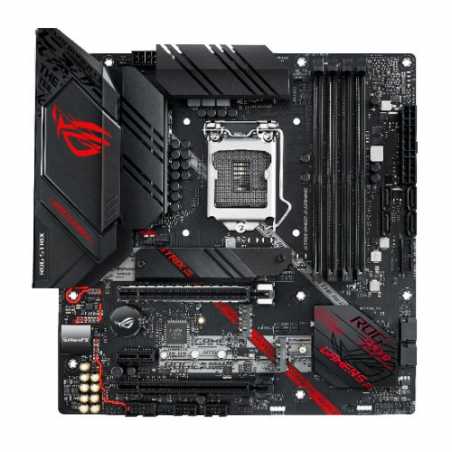

Asus ROG STRIX B460-G GAMING, Intel B460, 1200, Micro ATX, 4 DDR4, XFire, HDMI, DP, RGB Lighting, M.2
£152.39
VAT included
Intel® B460 LGA 1200 micro ATX gaming motherboard featuring teamed power stages, AI Networking, Intel® 1Gb Ethernet, dual M.2, USB 3.2 Gen 2x2, SATA and AURA Sync RGB lighting.
- Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors.
- Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors.
- Best Gaming Connectivity: Features dual M.2, USB 3.2 Gen 2x2 Type-C®, Audio USB Type-C® port plus HDMI™ 1.4b and DisplayPort 1.4 output support.
- Smooth Networking: M.2 socket with E-key and Intel® 1Gb Ethernet with ASUS LANGuard.
- Renowned Software: Intuitive dashboards including UEFI BIOS and ASUS-exclusive tool AI Networking to help configure gaming builds.
- DIY friendly Design: Pre-mounted I/O shield, BIOS FlashBack™, Q-LEDs and FlexKey.
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB header and Addressable Gen 2 RGB header.
- Industry-leading Gaming Audio:High fidelity audio with SupremeFX S1220A, DTS® Sound Unbound and Sonic Studio III for immersive audio.
90MB1460-M0EAY0
Data sheet
- .
- 1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 12V1 x Clear CMOS jumper1 x System panel
- PCI Express
- 1 x PCIe 3.0 x161 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
- Wireless
- M.2 slot only (Key E) (Support PCIe interface) - Wi-Fi module is sold separately
- RAM Speeds
- 2933/2800/2666/2400/2133 MHz
- Accessories
- 2 x SATA 6Gb/s cables1 x pack of cable tie1 x ROG Strix stickers1 x Ext cable for Addressable LED1 x ROG Thank you card1 x M.2 SSD screw package1 x M.2 Key E screw package1 x M.2 Rubber Package1 x ROG audio USB Type-C cable
- USB Ports Supported
- 1 x USB 3.2 Gen 2x2 Type-C (at back)8 x USB 3.2 Gen1 (6 at back, 2 at mid-board)1 x USB 2.0 Type-C for audio (at back)4 x USB 2.0 (at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel B460
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD 2-Way CrossFireX Technology
- LAN
- GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x Intel I219-V 1Gb LAN1 x DisplayPort1 x HDMI1 x USB 3.2 Gen 2x2 Type-C6 x USB 3.2 Gen 11 x USB 2.0 for audio Type-C5 x Audio jacks1 x USB BIOS FlashBack Button
- Internal I/O Connectors
- 1 x CPU Fan2 x Chassis Fan 1 x AIO_PUMP1 x Addressable RGB1 x AAFP1 x Aura RGB Strip1 x USB 3.2 Gen12 x USB 2.02 x M.2 Socket 31 x M.2 with E key for Wi-Fi module1 x COM port6 x SATA 6Gb/s
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 1.3700 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 3.0 x161 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
