- Out of stock

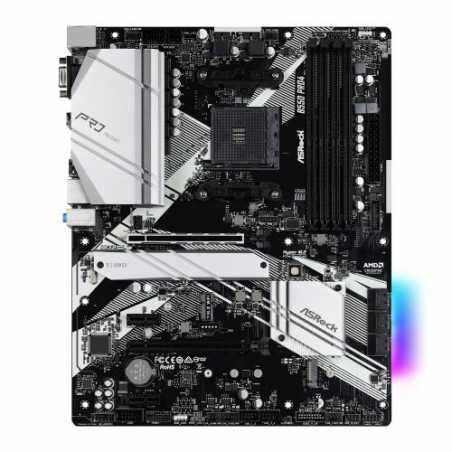

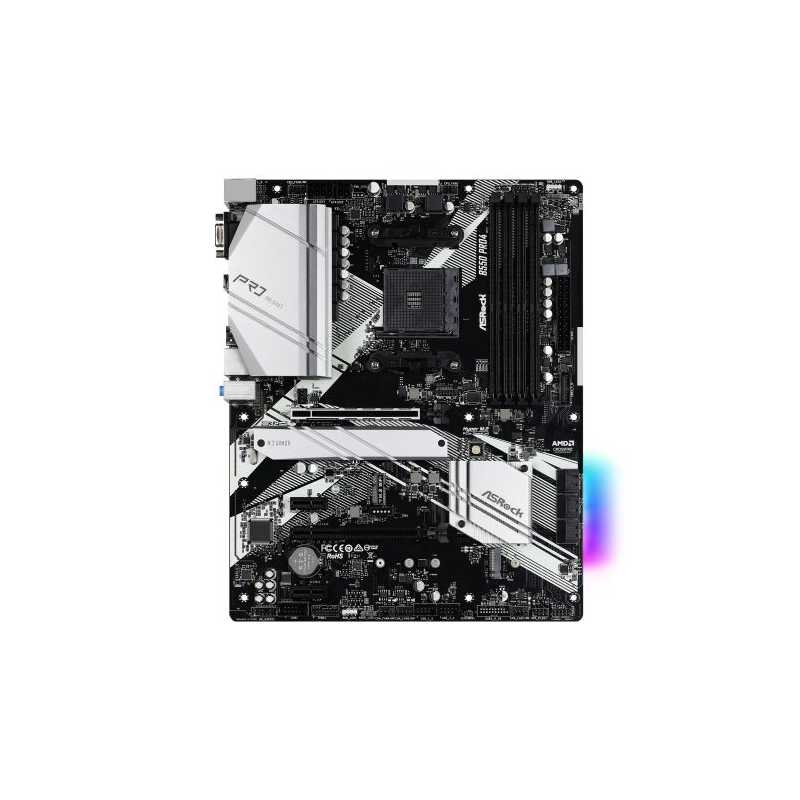

Asrock B550 PRO4, AMD B550, AM4, ATX, 4 DDR4, VGA, HDMI, XFire, PCIe4, RGB Lighting, M.2
£100.43
VAT included
Everything You Need For Computing
- Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: HDMI, D-Sub
- AMD CrossFireX™
- 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), Nahimic Audio
- 6 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
- 2 USB 3.2 Gen2 (Rear Type A+C), 6 USB 3.2 Gen1 (2 Front, 4 Rear)
- Gigabit LAN
B550 PRO4
Data sheet
- .
- 2 x USB 2.01 x USB 3.2 Gen1
- PCI Express
- 2 x PCIe 4.0 x162 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
- Accessories
- 2 x SATA Data Cables3 x Screws for M.2 Sockets1 x Standoff for M.2 Socket
- USB Ports Supported
- 2 x USB 3.2 Gen2 (1 Type-A & 1 Type-C at back)6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
- Storage
- 6 x SATA III1 x M.2 (2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- RAID 0, 1, 10
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM4
- Chipset
- AMD B550
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX and CrossFireX
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC1200 Audio Codec)
- Back Panel I/O Ports
- Antenna Bracket1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI1 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C4 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan1 x CPU/Water Pump Fan4 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Audio
- CPU Support
- Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
- Package Type
- Retail
- Package Weight
- 1.3000 kg
- Graphics Ports
- 1 x VGA1 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated Graphics Processor*Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 2 x PCIe 4.0 x162 x PCIe 3.0 x1
