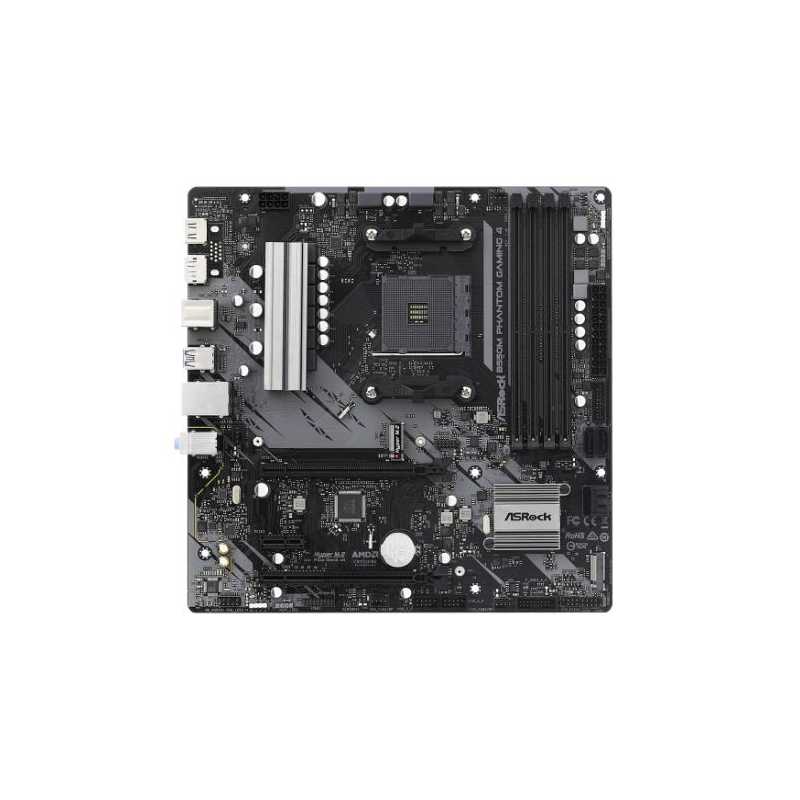

Asrock B550M PHANTOM GAMING 4, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2
search
  • Asrock B550M PHANTOM GAMING 4, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2
  • Asrock B550M PHANTOM GAMING 4, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2

Asrock B550M PHANTOM GAMING 4, AMD B550, AM4, Micro ATX, 4 DDR4, HDMI, DP, XFire, PCIe4, M.2

£88.39
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!

  • Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors (3000 and 4000 Series Processors)
  • 8 Power Phase design
  • Supports DDR4 4733+ (OC)
  • 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
  • Supports AMD CrossFireX™
  • Graphics Output Options: HDMI, DisplayPort
  • 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
  • 4 x SATA3, 1 x Hyper M.2(PCIe Gen4 x4), 1 x M.2(PCIe Gen3 x2 & SATA3)
  • 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
  • 6 x USB 2.0 (4 Front, 2 Rear)
  • Realtek Gigabit LAN





8 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it enhanced performance with the lowest temperature for advanced gamers.





Premium 50A Power Choke

Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.





Dual M.2 For SSD, Supports Type 2280 M.2

Ready for higher capacity and even faster Type 2280 M.2 NVMe SSD to fulfill the need of performance. Hyper M.2 socket that supports PCIe Gen4 x4 while M.2 socket is capable of running PCIe Gen3 x2 and SATA3 mode.





2oz Copper PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with most extreme memory performance!





Polychrome RGB

his motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.





Dual Graphics Outputs

Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.





HDMI 4k @60Hz

Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.





AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology “combines” these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.





Sapphire Black PCB

Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.





High Density Glass Fabric PCB

High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.





2oz Copper PCB

Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.





Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.





Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.



ASROCK
B550M PHANTOM GAMING 4

Data sheet

Wireless
-
RAM Speeds
4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
Accessories
Quick Installation Guide Support CDI/O Shield2 x SATA Data Cables2 x Screws for M.2 Sockets
USB Ports Supported
8 x USB 3.2 Gen1 (4 at back, 4 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
Storage
4 x SATA III1 x M.2 (2280) - PCIe1 x M.2 (2280) - SATA & PCIe
RAID
RAID 0, 1, 10
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD B550
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
Supports AMD Quad CrossFireX
LAN
GB LAN
Audio
7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
Back Panel I/O Ports
1 x PS/2 Mouse/Keyboard1 x HDMI1 x DisplayPort 1.44 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LANHD Audio Jacks
Internal I/O Connectors
1 x SPI TPM1 x Power LED and Speaker2 x RGB LED2 x Addressable LED1 x CPU Fan3 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio2 x USB 2.02 x USB 3.2 Gen1
CPU Support
Click here for CPU support*Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
Package Type
Retail
Package Weight
1.1000 kg
Graphics Ports
1 x HDMI1 x DisplayPort
Additional Features
See Overview
Graphics
Integrated Graphics Processor*Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 4.0 x161 x PCIe 3.0 x161 x PCIe 3.0 x1
