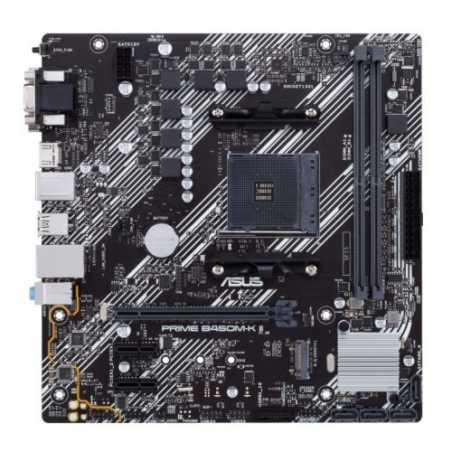

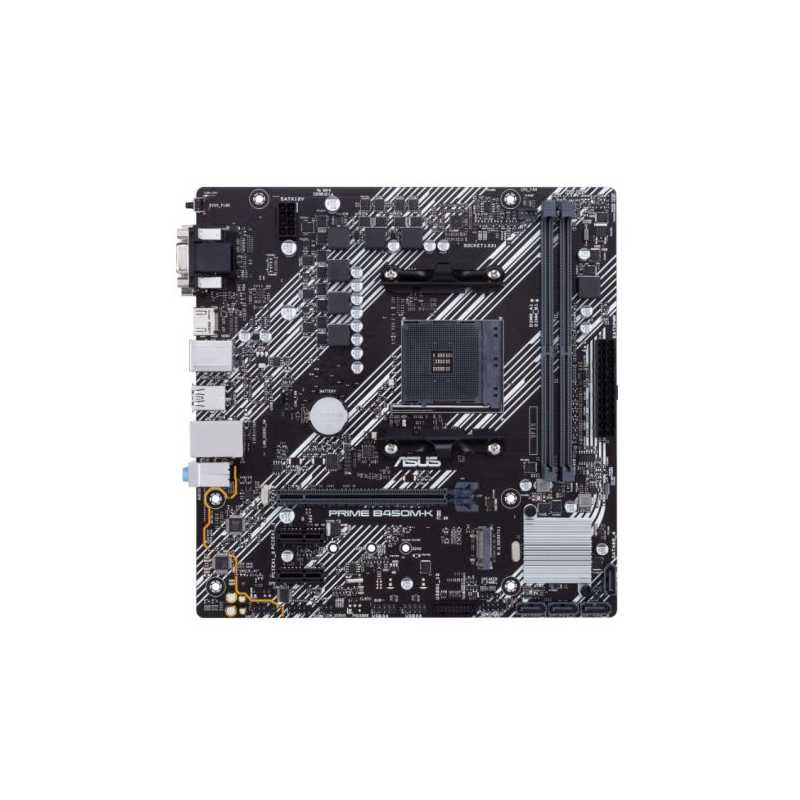

Asus PRIME B450M-K II, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting, M.2
search
  • Asus PRIME B450M-K II, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting, M.2
  • Asus PRIME B450M-K II, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting, M.2
  • Asus PRIME B450M-K II, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting, M.2

Asus PRIME B450M-K II, AMD B450, AM4, Micro ATX, 2 DDR4, VGA, DVI, HDMI, LED Lighting, M.2

£80.19
VAT included
Stock status: Very high
150 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


AMD B450 (Ryzen AM4) micro ATX motherboard with M.2 support, HDMI/DVI-D/D-Sub, SATA 6 Gbps, 1 Gb Ethernet, USB 3.2 Gen 1 Type-A, BIOS FlashBack™


  • Comprehensive cooling: PCH heatsink and Fan Xpert
  • Ultrafast connectivity: M.2 support, 1 Gb Ethernet, and USB 3.2 Gen 1 Type-A
  • 5X Protection III: Multiple hardware safeguards for all-around system protection
  • LED illumination: Lighting control for both PCIe slot and audio trace paths







Prime

ASUS Prime B450M II Series motherboards provide the solid foundation needed for your first build, plus flexibility to grow with your ambitions. We've melded all the good stuff that's packed into AMD Ryzen™ processors with essential ASUS design and engineering, so you benefit from industry-leading technologies — including automated system tuning, comprehensive cooling controls, and immersive onboard audio. When you build with an ASUS Prime B450M II Series motherboard, you build smart, easy and affordably.





Tune It Your Way

Comprehensive controls form the foundation of the ASUS Prime series. The Prime B450M II motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity.





Cooler by Design

PRIME B450M-K II is engineered with an array of hybrid fan headers and features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS, ensuring your rig stays cool and stable under intense workloads.





Build on a Solid Foundation

Prime B450M II motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options.


Achieve speed with onboard M.2
M.2 Slot supports data-transfer speed up to 32Gbps via x4 PCI Express® 3.0 bandwidth. It‘s the perfect choice for an operating system or application drive, providing fast access to data.

USB 3.2 Gen 1 Type-A
Numerous USB ports support high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases.





Outstanding Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality unlike anything you've ever experienced.


Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Japanese Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.





BIOS FLASHBACK™

BIOS FlashBack™ is the simplest and safest (UEFI) BIOS update method. Simply drop the (UEFI) BIOS file onto a FAT32 formatted USB stick, plug it into the USB BIOS FlashBack™ port and press the button. Updates can even be performed without having memory or a CPU installed.





SafeSlot Core

Fortified PCIe slot prevents damage
SafeSlot Core is the ASUS-exclusive PCIe slot. Featuring a fortified design that's anchored to the motherboard by a special hook, SafeSlot Core provides 1.6x stronger retention and 1.3x greater shearing resistance than standard expansion slots.





Overvoltage Protection

World-class circuit-protecting power design
An exclusive circuit design with built-in voltage regulators to protect your motherboard from damage caused by unexpected high-level voltages from unstable or inferior power supplies.





DRAM Overcurrent Protection

Short-circuit damage prevention
Onboard resettable fuses prevent overcurrent and short-circuit damage. This extends beyond I/O ports to DRAM to safeguard the lifespan of your system and connected devices.





Stainless-Steel Back I/O

3X corrosion-resistance for greater durability
Corrosion-resistant stainless-steel back I/O panels bonded with chromium oxide have a lifespan that's three times longer than ordinary panels.





LANGuard

Pumped-up throughput 2.5X higher surge tolerance
ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
ASUS
90MB1600-M0EAY0
150 Items

Data sheet

.
1 x System panel1 x Clear CMOS jumper1 x COM port header1 x Speaker
Wireless
-
RAM Speeds
4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz
Accessories
Users manualI/O Shield2 x SATA 6Gb/s cables1 x M.2 Anchor1 x Supporting DVD
USB Ports Supported
6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)
Storage
4 x SATA III1 x M.2 (2242/2260/2280) - SATA & PCIe**PCIe mode not supported with Athlon CPUs
RAID
RAID 0, 1, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
Micro ATX
Socket
AMD AM4
Chipset
AMD B450
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
2 x DIMM
Maximum Memory
64GB
Multi-GPU Support
-
LAN
GB LAN
Audio
Realtek ALC887/897 7.1-Channel High Definition Audio CODEC
Back Panel I/O Ports
1 x PS/2 keyboard/mouse1 x DVI-D1 x D-Sub1 x HDMI1 x LAN (RJ45)4 x USB 3.2 Gen1 Type-A2 x USB 2.03 x Audio jacks1 x BIOS FlashBack Button
Internal I/O Connectors
1 x CPU Fan1 x Chassis Fan1 x USB 3.2 Gen12 x USB 2.01 x M.2 Socket 3 with M key1 x SPI TPM1 x COM port4 x SATA 6Gb/s1 x S/PDIF out1 x 24-pin EATX1 x 8-pin ATX 12V1 x Front audio
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
0.8600 kg
Graphics Ports
1 x VGA1 x DVI-D1 x HDMI
Additional Features
See Overview
Graphics
Integrated Graphics Processor*Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
1 x PCIe 3.0 x162 x PCIe 2.0 x1
