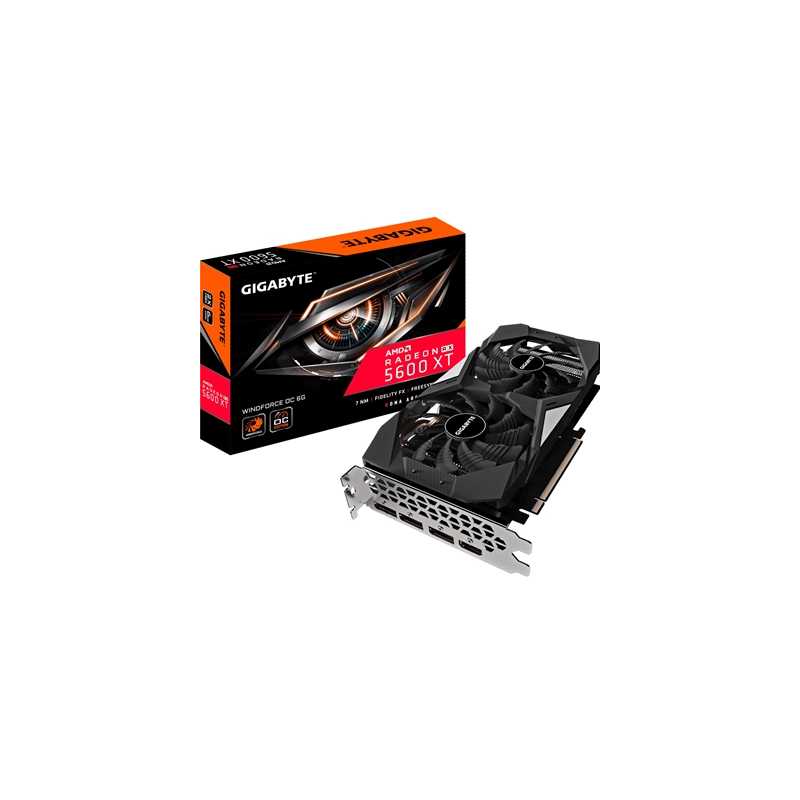

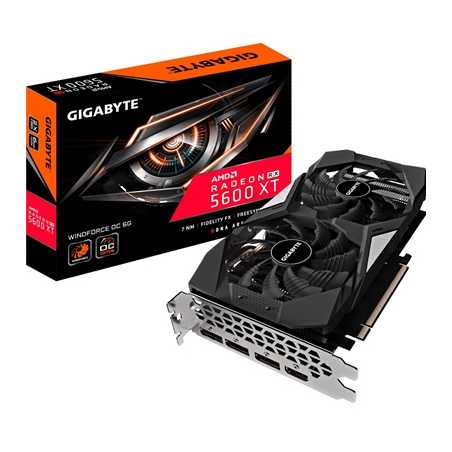

Gigabyte AMD Radeon RX 5600 XT WINDFORCE OC 6GB Dual Fan Graphics Card
£351.77
VAT included
Powered by AMD Radeon RX 5600 XT
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Protection Back Plate
PCI-Express 4.0 Support
Core Clock
Boost Clock : up to 1620 MHz
Game Clock : 1460 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses 6+1 power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+1 power phases.)
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER INDICATOR
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Specifications
Graphics Processing
Radeon RX 5600 XT
Core Clock
Boost Clock : up to 1620 MHz
Game Clock : 1460 MHz
Stream Processors
2304
Process Technology
7 nm
Memory Clock
12000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
288 GB/s
Card Bus
PCI-E 4.0 x 16
Digital Max Resolution
7680x4320@60Hz
Multi-View
4
Card Size
L=228 W=118 H=40.8 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4 x 3
HDMI 2.0b x 1
Accessories
Quick Guide
Integrated with 6GB GDDR6 192-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
Protection Back Plate
PCI-Express 4.0 Support
Core Clock
Boost Clock : up to 1620 MHz
Game Clock : 1460 MHz
WINDFORCE 2X COOLING SYSTEM
The WINDFORCE 2X cooling system features 2x 90mm unique blade fans, alternate spinning fan, 2 composite copper heat pipes, heat-pipe direct touch and 3D active fan functionality, together delivering an effective heat dissipation capacity for higher performance at lower temperatures.
ALTERNATE SPINNING
The GIGABYTE Alternate Spinning is the only solution that can solve the turbulent airflow of adjacent fans. Since the adjacent fans rotate in the same direction, the airflow direction is opposite between the fans, which will cause turbulent airflow and reduce heat dissipation efficiency. GIGABYTE turns the adjacent fans in the opposite direction, so that the airflow direction between the two fans is the same, reducing the turbulence and enhancing the airflow pressure.
UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface, effectively enhancing the airflow.
3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game. It allows gamers to enjoy gameplay in complete silence when the system is running light or idle.
HEAT PIPES DIRECT TOUCH GPU
The shape of the pure copper heat pipes maximize the direct contact area with the GPU, enhancing heat transfer. The heat pipes also cover the VRAM through a large metal plate contact to ensure proper cooling.
COMPOSITE HEAT-PIPE
The composite heat-pipe combines thermal conductivity and phase transition to efficiently manage the heat transfer between two solid interfaces which increases cooling capacity.
EXTREME DURABILITY AND OVERCLOCKING
The graphics card uses 6+1 power phases design to allow the MOSFET to operate at lower temperature, and over-temperature protection design and load balancing for each MOSFET, plus the Ultra Durable certified chokes and capacitors, to provide excellent performance and longer system life. (Reference card is 5+1 power phases.)
FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.
POWER INDICATOR
The smart power LED indicator alerts the player when any PCI-E power supply is abnormal.
PROTECTION BACK PLATE
The back plate not only provides an aesthetical shape, but also enhances the structure of the graphics card to provide complete protection.
Specifications
Graphics Processing
Radeon RX 5600 XT
Core Clock
Boost Clock : up to 1620 MHz
Game Clock : 1460 MHz
Stream Processors
2304
Process Technology
7 nm
Memory Clock
12000 MHz
Memory Size
6 GB
Memory Type
GDDR6
Memory Bus
192 bit
Memory Bandwidth (GB/sec)
288 GB/s
Card Bus
PCI-E 4.0 x 16
Digital Max Resolution
7680x4320@60Hz
Multi-View
4
Card Size
L=228 W=118 H=40.8 mm
PCB Form
ATX
DirectX
12
OpenGL
4.6
Recommended PSU
450W
Power Connectors
8 pin x 1
Output
DisplayPort 1.4 x 3
HDMI 2.0b x 1
Accessories
Quick Guide
