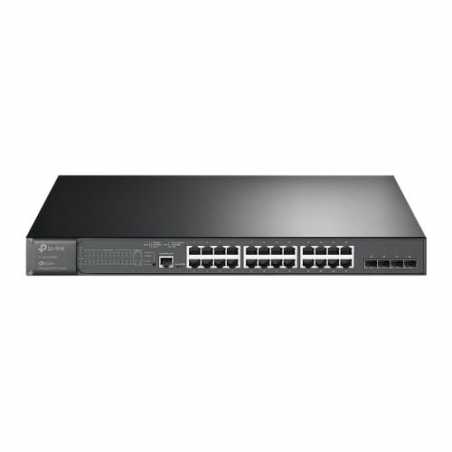

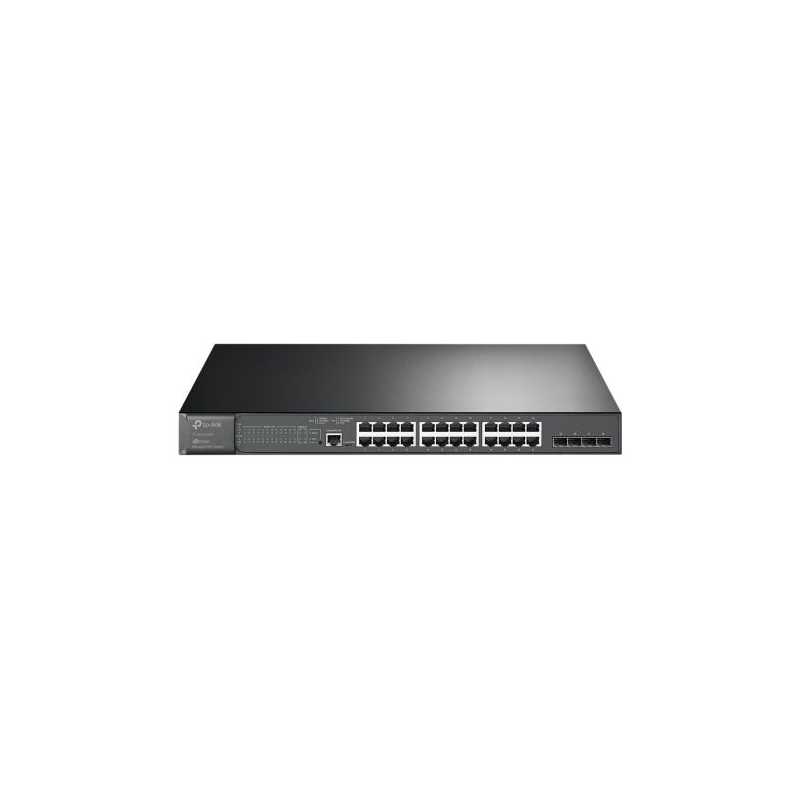

TP-LINK (TL-SG3428MP) JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+, 4 SFP Slots, Rackmountable

£418.84
VAT included
Stock status: Very low
Last item
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


JetStream 28-Port Gigabit L2 Managed Switch with 24-Port PoE+


  • 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
  • Full Gigabit Ports: 24× gigabit PoE+ ports and 4× gigabit SFP Slots provide high-speed connections.
  • Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
  • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
  • Static Routing: Helps route internal traffic for more efficient use of network resources.
  • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
  • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
  • Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities


TL-SG3428MP
1 Item

Data sheet

Data Transfer Rate
10/100/1000 Mbps
Warranty
Limited Lifetime
Package Type
Retail
Package Weight
6.2000 kg
Dimensions
440 x 180 x 44 mm
Power Supply
100-240 V AC~50/60 Hz
Interface(s)
24 x 10/100/1000Mbps RJ45 Ports4 x Gigabit SFP Slots1 x RJ45 Console Port1 x Micro-USB Console Port
Package Contents
SwitchPower CordQuick Installation GuideRackmount KitRubber Feet
Rackmountable
Yes
Management
Web-based GUICLI through console port, telnetSNMPv1/v2c/v3 SDM TemplateDHCP/BOOTP Client802.1ab LLDP/LLDP-MEDDHCP AutoInstallDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEEPassword RecoverySNTPSystem Log
Number of Ports
28
PoE Ports (RJ45)
Standard: 802.3at/af compliantPoE+ Ports: 24 Ports, up to 30 WPower Supply: 384 W
Switching Capacity
56 Gbps
Environment
Operating Temperature: 0C~45C (32F~113F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
Security
IP-MAC-Port BindingIPv6-MAC-Port BindingDoS DefendStatic/Dynamic Port SecurityBroadcast/Multicast/Unicast Storm ControlIP/Port/MAC based access control802.1XAAA (including TACACS+)Port IsolationSecure web management through HTTPS with SSLv3/TLS 1.2Secure
Advanced Functions
Support Omada Hardware ControllerAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleZTP (Zero-Touch Provisioning)
Quality of Service
8 priority queues802.1p CoS/DSCP priorityQueue schedulingBandwidth ControlPort/Flow based Rating LimitingSmoother PerformanceAction for Flows
Mac Address Table
8k
Packet Forwarding Rate
41.66 Mpps
Jumbo Frame
9 KB
Layer Features
Link AggregationSpanning Tree ProtocolProtect, Root Protect, Loop ProtectLoopback DetectionFlow ControlMirroringL2 MulticastSupports 511 (IPv4, IPv6) IGMP groupsIGMP SnoopingIGMP AuthenticationMVRMLD SnoopingMulticast Filtering
VLAN
VLAN Group802.1q Tagged VLANMAC VLAN: 12 EntriesGVRPVLAN VPN (QinQ)Voice VLANProtocol VLAN: Protocol Template 16, Protocol VLAN 16
Access Control
Time-based ACLMAC ACLIP ACLCombined ACLPacket Content ACLIPv6 ACLPolicyACL apply to Port/VLAN
POE
Yes
RJ45 Data Transfer Rate
10/100/1000 Mbps
