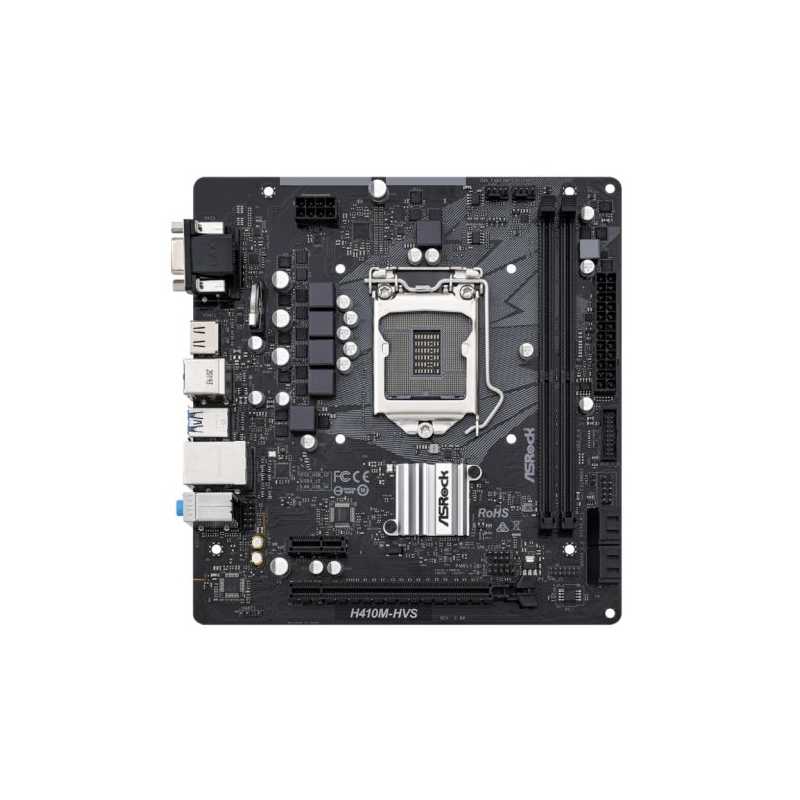

Asrock H410M-HVS R2.0, Intel H410, 1200, Micro ATX, 2 DDR4, VGA, HDMI
£62.93
VAT included
- Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Supports DDR4 2933MHz
- 1 PCIe 3.0 x16, 1 PCIe 3.0 x1
- Graphics Output Options : HDMI, D-Sub
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 SATA3
- 4 USB 3.2 Gen1 (2 Front, 2 Rear)
- 6 USB 2.0 (2 Front, 4 Rear)
- Intel® Gigabit LAN
5 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a D-Sub + HDMI combo, you have more graphics output options now.
HEVC 10-bit Decoding/Encoding
Supports HEVC 10-bit Decoding/Encoding to provide substantially improved video quality and higher bit depth video experience.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
H410M-HVS R2.0
Data sheet
- Wireless
- -
- RAM Speeds
- 2933 / 2800 / 2666 / 2400 / 2133 MHz
- Accessories
- I/O Shield2 x SATA Data Cables
- USB Ports Supported
- 4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)6 x USB 2.0 (4 at back, 2 at mid-board)
- Storage
- 4 x SATA III
- RAID
- -
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1200
- Chipset
- Intel H410
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- Back Panel I/O Ports
- 1 x PS/2 Mouse/Keyboard1 x D-Sub1 x HDMI4 x USB 2.02 x USB 3.2 Gen11 x RJ-45 LANHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Chassis Intrusion and Speaker1 x CPU Fan 1 x Chassis/Water Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x Front Audio1 x USB 2.01 x USB 3.2 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.7000 kg
- Graphics Ports
- 1 x VGA1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
- PCI/PCI Express
- 1 x PCIe 3.0 x161 x PCIe 3.0 x1
