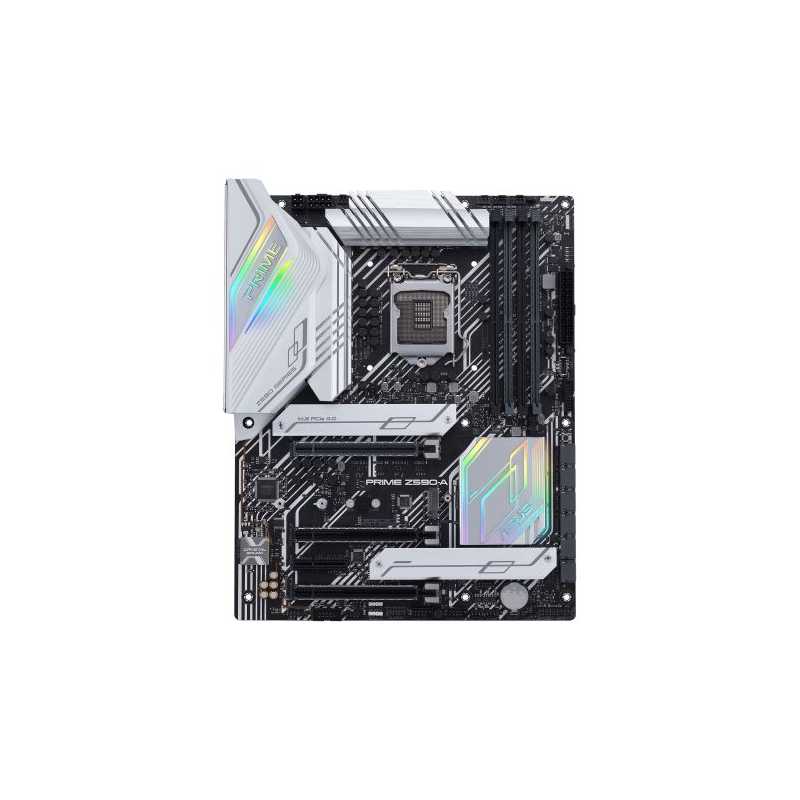

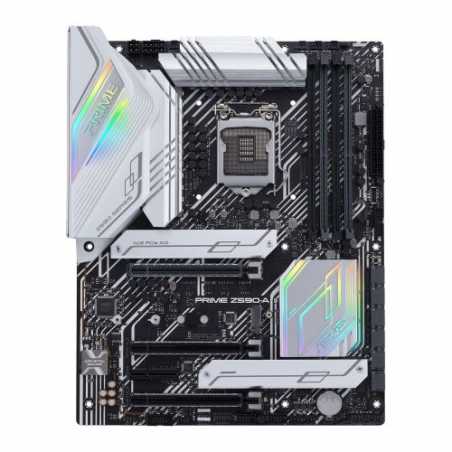

Asus PRIME Z590-A, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2
search
  • Asus PRIME Z590-A, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2
  • Asus PRIME Z590-A, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2

Asus PRIME Z590-A, Intel Z590, 1200, ATX, 4 DDR4, HDMI, DP, AX Wi-Fi, 2.5G LAN, RGB, 3x M.2

£322.58
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


Intel® Z590 (LGA 1200) ATX motherboard with PCIe® 4.0, three M.2 slots, 16 DrMOS power stages, HDMI®, DisplayPort™, SATA 6 Gbps, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 support, and Aura Sync RGB lighting


  • Intel® LGA 1200 socket: Ready for 10th and 11th gen Intel® Core™ processors
  • Enhanced power solution: 14+2 DrMOS power stages, six-layer PCB, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
  • AI Overclocking: Optimizes CPU performance based on the CPU and cooler, achieving results that are extremely close to manual tuning by experts
  • AI Cooling: Manages and controls all motherboard fans, automatically optimizing settings based on current system load and temperature
  • Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
  • Comprehensive cooling: Large VRM heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4
  • Next-gen connectivity: PCIe® 4.0, Intel® 2.5 Gb Ethernet, USB 3.2 Gen 2x2 Type-C®, front panel USB 3.2 Gen 1 Type-C®, Thunderbolt™ 4 header support
ASUS
90MB16D0-M0EAY0

Data sheet

.
1 x 20-3 pin System Panel1 x Thermal Sensor1 x Thunderbolt
Wireless
-
RAM Speeds
5333(OC)/5133(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz
Accessories
3 x SATA 6Gb/s cables2 x M.2 Rubber Packages1 x Q-connector
USB Ports Supported
1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)3 x USB 3.2 Gen2 (at back)2 x USB 3.2 Gen1 (at mid-board) 8 x USB 2.0 (4 at back, 4 at mid-board)1 x USB 3.2 Gen1 connector Type-C at mid-board
Storage
6 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280/22110) - SATA & PCIe1 x M.2 ( 2242/2260/22110) - SATA & PCIe
RAID
RAID 0, 1, 5, 10
Warranty
3 Years
Motherboard Type
Desktop
Form Factor
ATX
Socket
Intel 1200
Chipset
Intel Z590
DDR Type
DDR4
RAM Technology
DDR4 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
128GB
Multi-GPU Support
-
LAN
2.5GB LAN
Audio
Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC
Back Panel I/O Ports
1 x USB 3.2 Gen2x2 Type-C4 x USB 3.2 Gen2 (3 x Type-A, 1 x Type-C)4 x USB 2.01 x DisplayPort1 x HDMI port1 x Intel I225-V 2.5Gb Ethernet5 x Audio jacks 1 x Optical S/PDIF out
Internal I/O Connectors
1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 4-pin VRM_HS Fan1 x W_PUMP+1 x 24-pin Main1 x 8-pin +12V1 x 4-pin +12V3 x M.2 slots (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen1 (Type-C)
CPU Support
Click here for CPU support
Package Type
Retail
Package Weight
1.7100 kg
Graphics Ports
1 x HDMI 2.01 x DisplayPort 1.4*Only Intel 11th Core processors support HDMI 2.0, others will support HDMI 1.4
Additional Features
See Overview
Graphics
Integrated Graphics**Graphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
2.5GB LAN
RGB Lighting
Yes (RGB)
PCI/PCI Express
3 x PCIe 4.0/3.0 x161 x PCIe 3.0 x4
