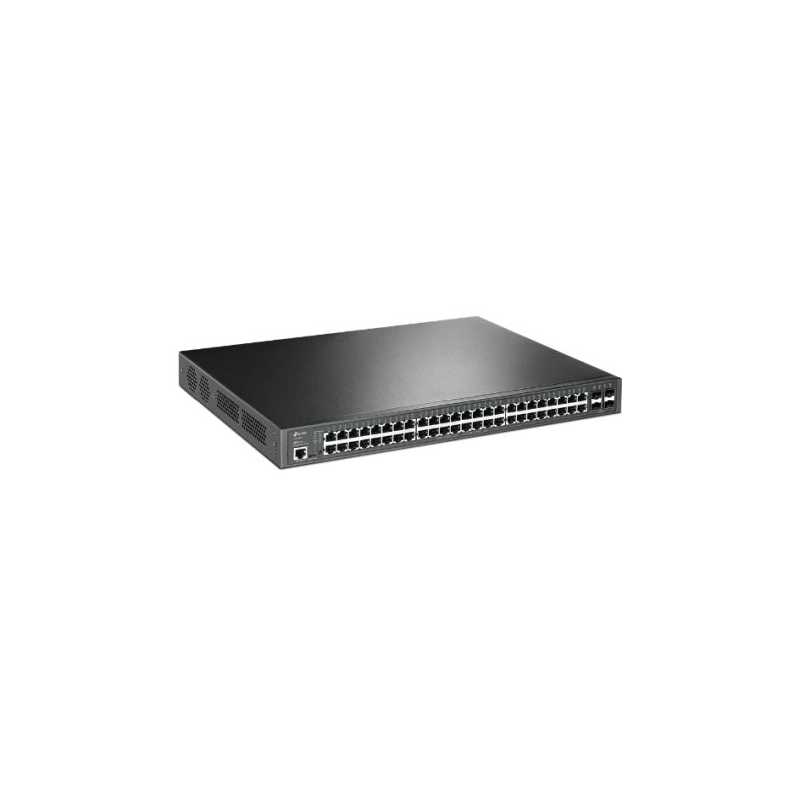

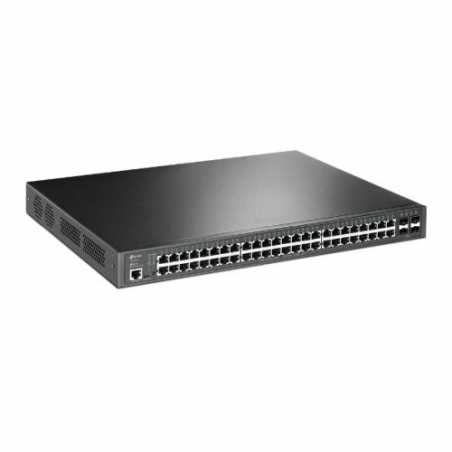

TP-LINK (TL-SG3452P) JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+, 4 SFP Slots, Rackmountable
£580.30
VAT included
JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+
- 384 W PoE Budget: 48x 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Full Gigabit Ports: 48x gigabit RJ45 ports and 4× gigabit SFP Slots provide high-speed connections.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities.
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**Zero-Touch Provisioning requires the use of Omada Cloud-Based Controller.
***L3 and ISP features can only be configured in standalone mode.
TL-SG3452P
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 0.0000 kg
- Dimensions
- 440 x 330 x 44 mm
- Power Supply
- 100-240 V AC~50/60 HzPower Consumption:52.53 W (110 V/60 Hz) (no PD connected)485.4 W (110 V/60 Hz) (with 384 W PD connected)
- Interface(s)
- 48 x 10/100/1000 Mbps RJ45 Ports4 x Gigabit SFP Slots1 x RJ45 Console Port1 x Micro-USB Console Port
- Package Contents
- TL-SG3452P SwitchPower CordQuick Installation GuideRackmount KitRubber Feet
- Rackmountable
- Yes
- Management
- Web-based GUICLI through console port, telnetSNMPv1/v2c/v3SDM TemplateDHCP/BOOTP Client802.1ab LLDP/LLDP-MEDDHCP AutoInstallDual Image, Dual ConfigurationCPU MonitoringCable DiagnosticsEEEPassword RecoverySNTPSystem Log
- Number of Ports
- 52
- PoE Ports (RJ45)
- Standard: 802.3at/af compliantPoE+ Ports: 48 Ports, up to 30 W per portPower Budget: 384 W
- Switching Capacity
- 104 Gbps
- Environment
- Operating Temperature: 0C~45C (32F~113F);Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Security
- IP-MAC-Port BindingIPv6-MAC-Port BindingDoS DefendStatic/Dynamic Port SecurityBroadcast/Multicast/Unicast Storm ControlIP/Port/MAC based access control802.1XAAA (including TACACS+)Port IsolationSecure web management - HTTPS with SSLv3/TLS 1.2Secure CLI ma
- Advanced Functions
- Support Omada Hardware, Software, Cloud-Based ControllerAutomatic Device DiscoveryBatch ConfigurationBatch Firmware UpgradingIntelligent Network MonitoringAbnormal Event WarningsUnified ConfigurationReboot ScheduleZTP (Zero-Touch Provisioning)
- Quality of Service
- 8 priority queues802.1p CoS/DSCP priorityQueue schedulingBandwidth ControlSmoother PerformanceAction for Flows
- Mac Address Table
- 16 K
- Packet Forwarding Rate
- 77.4 Mpps
- Jumbo Frame
- 9 KB
- Layer Features
- L2 and L2+Link AggregationSpanning Tree ProtocolLoopback DetectionFlow ControlMirroringL316 IPv4/IPv6 InterfacesStatic RoutingStatic ARP316 ARP EntriesProxy ARPGratuitous ARPDHCP ServerDHCP RelayDHCP L2 Relay
- VLAN
- VLAN Group802.1q Tagged VLANMAC VLAN: 12 EntriesProtocol VLAN: Template 16, VLAN 16GVRPVLAN VPN (QinQ)Voice VLAN
- Access Control
- Time-based ACLMAC ACLIP ACLCombined ACLPacket Content ACLIPv6 ACLPolicyACL apply to Port/VLAN
- POE
- Yes
- RJ45 Data Transfer Rate
- 10/100/1000 Mbps
