- Out of stock

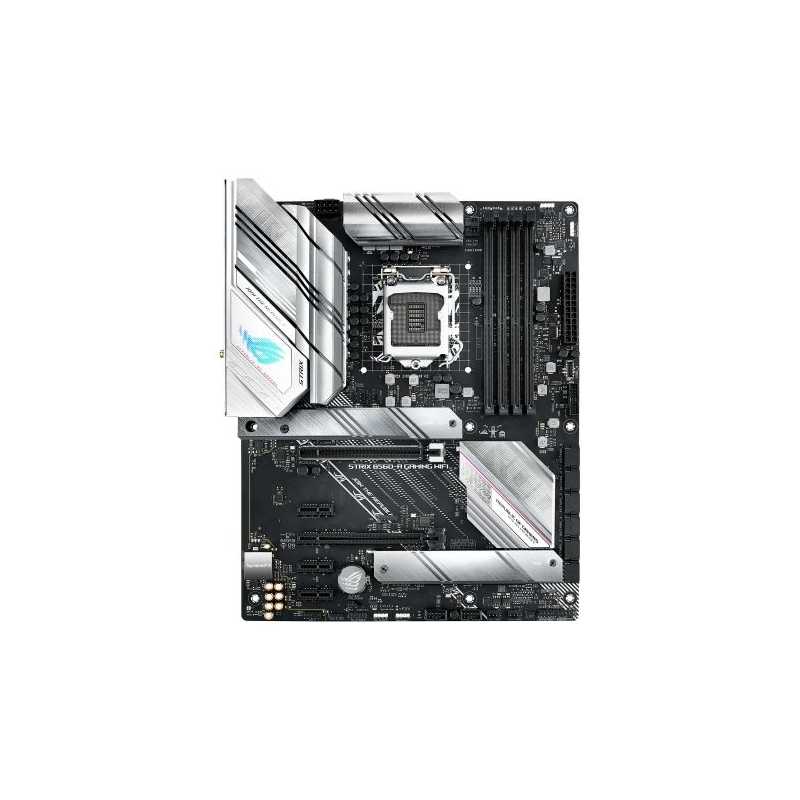

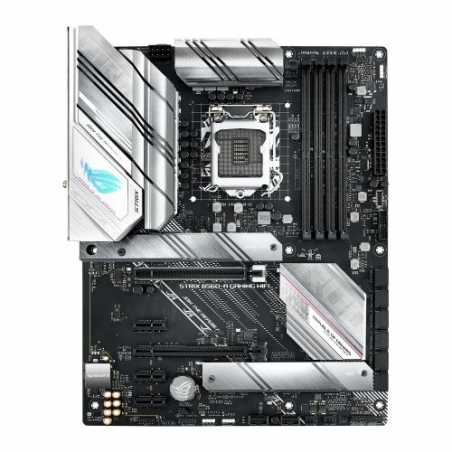

Asus ROG STRIX B560-A GAMING WIFI, Intel B560, 1200, ATX, 4 DDR4, HDMI, DP, 2.5G LAN, AX Wi-Fi, RGB, 2x M.2
£230.42
VAT included
Intel® B560 LGA 1200 ATX motherboard with PCIe 4.0, 8+2 teamed power stages, Two-Way AI Noise Cancelation, WiFi 6 (802.11ax), Realtek 2.5 Gb Ethernet, two M.2 slots with heatsinks, USB 3.2 Gen 2x2 USB Type-C®, SATA and Aura Sync RGB lighting
- Intel® LGA 1200 socket: Ready for 11th Gen Intel® Core™, 10th Gen Intel® Core, Pentium® Gold and Celeron® processors
- Solid Power Solution: Teamed power stages with ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Smooth Networking: On-board Intel® WiFi 6 AX201 (802.11ax) and Realtek 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI™ 2.0 and DisplayPort 1.4 output, two M.2 slots and USB 3.2 Gen 2x2 USB Type-C®
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack™ and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
- Industry-Leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS® Sound Unbound and Sonic Studio III
- Renowned Software: Bundled 60 days AIDA64 Extreme subscription and intuitive UEFI BIOS dashboard
90MB16V0-M0EAY0
Data sheet
- .
- 2 x AURA RGB1 x Clear CMOS1 x Front Audio1 x SPI TPM (14-1pin)1 x 20-5 pin System Panel1 x Thunderbolt1 x S/PDIF Out
- Wireless
- Intel Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)Supports 2.4/5GHz frequency bandBluetooth v5.0 or later
- RAM Speeds
- Up to 5000(OC)
- Accessories
- 4 x SATA 6Gb/s cables1 x ROG audio USB Type-C cable1 x ASUS Wi-Fi moving antennas1 x Cable ties pack1 x M.2 Q-Latch package1 x M.2 Rubber Packages1 x ROG key chain1 x ROG STRIX stickers1 x ROG STRIX thank you card
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-A (at back)4 x USB 3.2 Gen1 (2 at back, 2 at mid-board)8 x USB 2.0 (4 at back, 4 at mid-board)1 x Front Panel USB 3.2 Gen1 Type-C connector
- Storage
- 6 x SATA III1 x M.2 (2242/2260/2280/22110) - PCIe*1 x M.2 (2242/2260/2280/22110) - SATA & PCIe*This slot is only active with 11th gen CPUs
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1200
- Chipset
- Intel B560
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- Multi-GPU Support
- -
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 (Type-C)1 x USB 3.2 Gen2 (Type-A)2 x USB 3.2 Gen1 (Type-A)5 x USB 2.0 (4 x Type-A, 1 x audio Type-C)1 x HDMI1 x DisplayPort1 x ASUS Wi-Fi Module1 x Realtek 2.5Gb Ethernet5 x Audio jacks1 x BIOS FlashBack button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fa1 x 4-pin AIO Pump3 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)6 x SATA 6Gb/s1 x USB 3.2 Gen1 Type-C1 x USB 3.2 Gen12 x USB 2.02 x AURA Addressable Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 2.0000 kg
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x163 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
