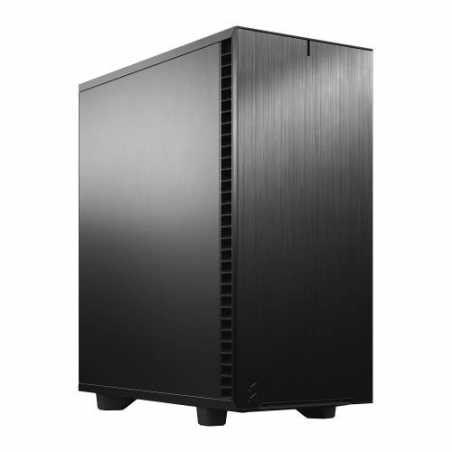

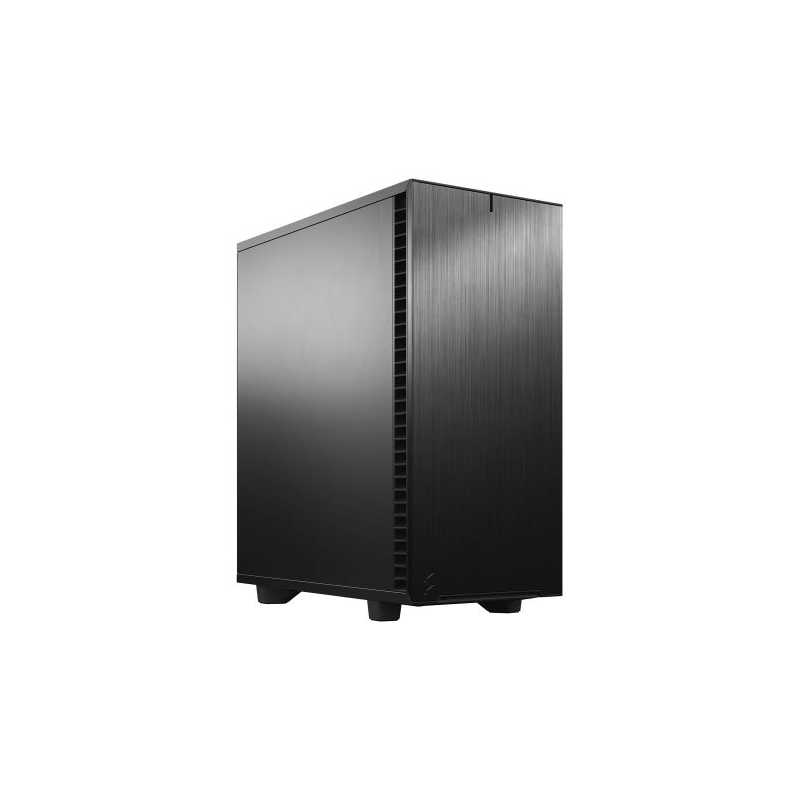

Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C
search
  • Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C
  • Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C
  • Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C

Fractal Design Define 7 Compact (Black Solid) Gaming Case, ATX, 2 Fans, Sound Dampening, Ventilated PSU Shroud, USB-C

£116.91
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame.


  • Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
  • Support for two 2.5”/3.5” drives plus up to four SSDs (two SSD brackets included)
  • Top panel effortlessly swaps from solid steel to filtered ventilation
  • New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Integrated cable guides with Velcro straps further simplify cable management behind the board





Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximize the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.





Remarkably quiet

  • Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation
  • Brushed aluminum front and top-latching side panels offer a clean sophisticated look
  • Top panel effortlessly swaps from solid steel to filtered ventilation





Substantial cooling

  • Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm
  • 1x 120 mm and 1x 140 mm Dynamic X2 fans included
  • Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support










FRACTAL
FD-C-DEF7C-01

Data sheet

.
Water Cooling options:Front: Up to 360 / 280 mm radiator (max 145 mm width)Top: Up to 240 mm radiatorRear: 120 mm radiatorBottom: 120 mm radiator (requires removal of HDD cage)
Accessories
Define 7 CompactAccessory boxUser manualVentilated top panel
Warranty
2 Years
Form Factor
ATX
Package Weight
0.0000 kg
Additional Features
See Overview / Video
Colour
Black
Weight/Dimensions
8.61 kg(LxWxH) 427 x 210 x 474 mmw/o feet/protrusions/screws: 415 x 210 x 451 mm
Material
Left side panel: Industrial sound-damped steelRight side panel: Industrial sound-damped steel
Power Supply Wattage
No PSU
Motherboard Support
ATX, Micro ATX, Mini ITX
Connectors / Controls
1 x USB 3.1 Gen 2 Type-C2 x USB 3.02 x USB 2.0Audio I/OPower buttonReset button
Drive Bays
2 x 3.5"/2.5" drive mountsDedicated 2.5" drive mounts: 2 trays, 4 positions total
Compatability
GFX Card:341 mm (360 mm without front fan) Max CPU Cooler:169 mm PSU:200 mm total (165 mm w/ HDD cage and front fan)
Small Form Factor
No
Expansion Slots
7 Expansion Slots
Cooling System
Included Front: 1 x Dynamic X2 GP-14 140mm fanRear: 1 x Dynamic X2 GP-12 120mm fanFan MountsFront: 3 x 120 / 2 x 140 mmTop: 2 x 120 / 2 x 140 mmRear: 1 x 120 mmBottom: 1 x 120 mm (requires removal of HDD cage)
