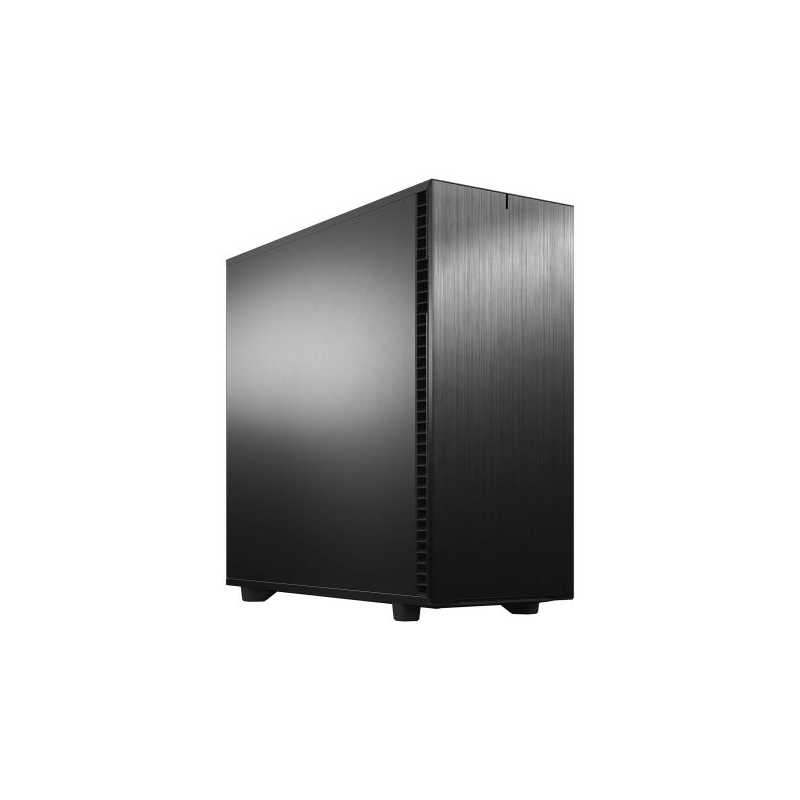

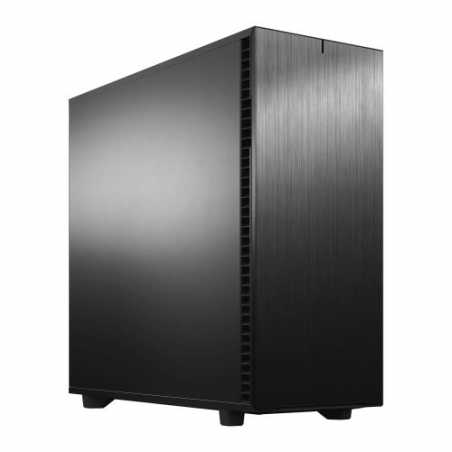

Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C
search
  • Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C
  • Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C
  • Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C

Fractal Design Define 7 XL (Black Solid) Gaming Case, E-ATX/SSI-EEB, Modular Design, 3 Fans, Fan Hub, Sound Dampening, USB-C

£209.03
VAT included
Stock status: Very low
Last 23 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


The Define 7 XL sets a new standard for what you should expect from a full tower case in terms of modularity, flexibility and ease of use.


  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 multi-brackets included)
  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Silence-optimized construction with industrial sound-damped front, top, and side panels
  • Top panel effortlessly swaps from sound damped solid steel to filtered ventilation
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Versatile new multi-brackets convert any unused fan position to an HDD, SSD or pump mount
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Sturdy new HDD cage design with vibration damped trays
  • Tool-less, top-latching panels allow quick access while preventing accidental drops
  • Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
  • Ventilated PSU shroud with two-part removable cover
  • Easy-to-clean high airflow nylon filters on the front, top, and base with full PSU coverage and convenient front access
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board





Plenty of room for massive builds

  • Use the Open Layout for more headroom and gargantuan water-cooling with radiators up to 480 mm in front or top and 280 mm in the base
  • Spacious, extensively adaptable dual-layout interior easily accommodates large motherboards up to E-ATX and SSI-EEB
  • Two 5.25” ODD bays can be converted to an additional front fan mount with filtered louver covering
  • Ventilated PSU shroud with two-part removable cover
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans





Superlative storage possibilities

  • Mount up to 18 HDD/SSDs plus five SSDs in the Storage Layout (6 HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)
  • Detachable PSU cable shield and integrated cable guides with Velcro straps further simplify cable management behind the board
  • Sturdy new HDD cage design with vibration damped trays
  • 13 pass-through holes with ten rubber grommets and two removable covers make for clean cable routing regardless of motherboard size





Airflow and cooling

  • Outstanding cooling capacity with a total of 9 x 140 mm or 11 x 120 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
  • Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access
  • The two 5.25" ODD bays can be converted to an additional front fan mount with filtered louver covering









FRACTAL
FD-C-DEF7X-01
23 Items

Data sheet

.
Water Cooling options:Front: Up to 480 / 420 mm radiatorTop: Up to 480 / 420 mm radiatorRear: 120 mm radiatorBottom: Up to 240 / 280 mm radiator
Accessories
Accessory boxUser manualVentilated top panelODD bracketODD bay cover2 x HDD/SSD trays
Warranty
2 Years
Form Factor
E-ATX
Package Weight
18.4000 kg
Additional Features
See Overview / Video
Colour
Black
Weight/Dimensions
16.53 kg(LxWxH) 604 x 240 x 566 mmw/o feet/protrusions/screws: 590 x 240 x 548 mm
Material
Left side panel: Industrial sound-damped steelRight side panel Industrial sound-damped steel
Power Supply Wattage
No PSU
Motherboard Support
EE-ATX, E-ATX, ATX, Micro ATX, Mini ITX, SSI-CEB, SSI-EEB
Connectors / Controls
1 x USB 3.1 Gen 2 Type-C2 x USB 3.02 x USB 2.0Audio I/OPower buttonReset button
Drive Bays
6 + 2 x 3.5"/2.5" - 18 positions total2 x 2.5" - 5 positions total2 x 5.25"
Compatability
GFX Card:Storage layout: 359 mmOpen layout: 549 mm (524 mm w/ front fan) Max CPU Cooler:185 mm PSU:250 mm (both HDD cages installed)
Small Form Factor
No
Expansion Slots
9 + 3 Expansion slots
Cooling System
Included Front: 2 x Dynamic X2 GP-14 140mm fansRear: 1 x Dynamic X2 GP-14 140mm fanFan MountsFront: 4 x 120 / 3 x 140 mmTop: 4 x 120 / 3 x 140 mmRear: 1 x 120 / 140 mmBottom: 2 x 120 / 140 mm
5.25 Bay
Yes (5.25 Bay)

Delivery date

Carrier Information Delivery
DPD Next Day Next Day (Orders Before 4PM)
* with direct payment methods (e.g. credit card)
Comments (0)
No customer reviews for the moment.
