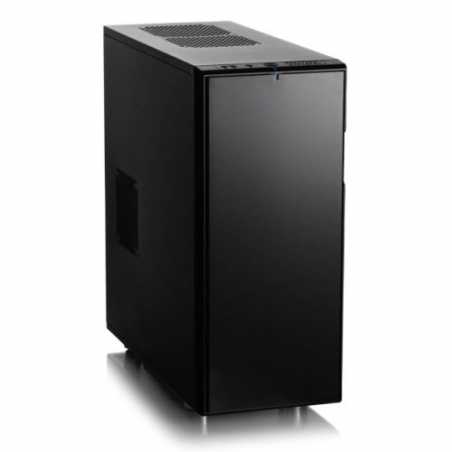

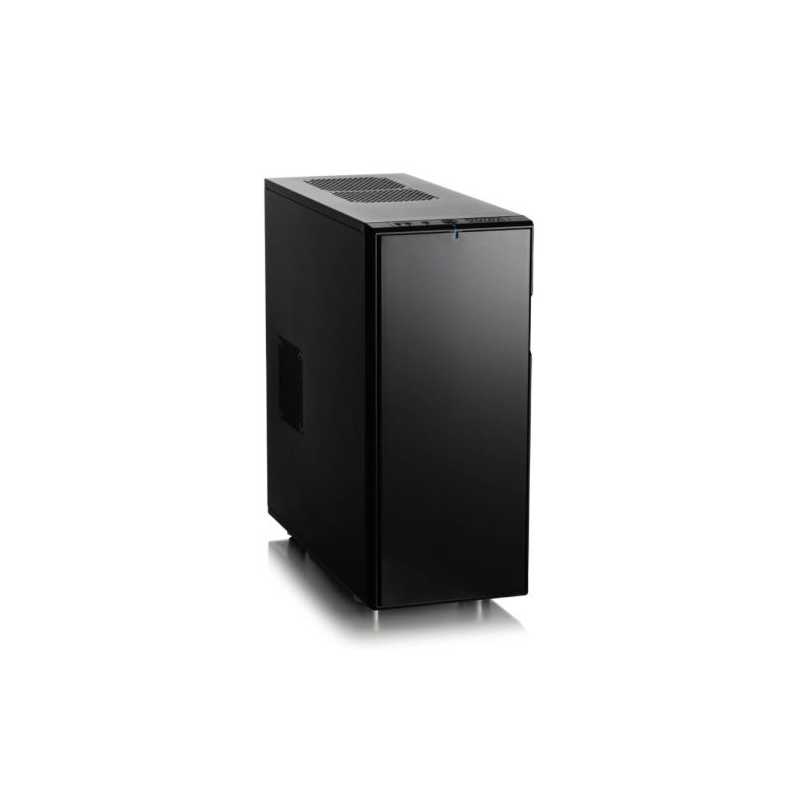

Fractal Design Define XL R2 (Black Pearl) Gaming Case, XL-ATX/E-ATX, Modular Design, 3 Fans, Fan Controller, ModuVent Design, So

£136.92
VAT included
Stock status: Very low
Last 6 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


Bigger and better: building on the success of the awarding-winning Define XL


  • High density noise-reducing material for an optimal silent case **To achieve a high level of noise reduction, material with mass should be incorporated which is what we strive to achieve with the dense bitumen used on the side panels
  • Patented ModuVent™ design allowing the user to choose between optimal silence or maximum airflow
  • With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems.
  • Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount.
  • The case can fit water cooling equipment in the front, top, rear and bottom without major modifications.
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
  • Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy – Silent Series R2 retail fans now come standard in all cases
  • New tool-less front fan holder makes switching front fans a breeze




Room for water cooling – everywhere

This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form.

The Define XL R2, which includes our innovative ModuVent™ feature, has an updated internal layout that offers even greater modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide even more space for water cooling radiators.






FRACTAL
FD-CA-DEF-XL-R2-BL
6 Items

Data sheet

.
Water Cooling options:Front: 240 mm when HDD cages are removed or repositionedTop: 240 mm or 280 mm when using slim radiatorsRear: 120 mm or 140 mmBottom: 120 mm
Accessories
Define XL R2 computer caseAccessory boxUser manual
Warranty
2 Years
Form Factor
XL-ATX
Additional Features
See Overview / Video
Colour
Black
Weight/Dimensions
16.4 kg(WxHxD) 232 x 559 x 560 mm
Material
Left side panel: Industrial sound-dampened steelRight side panel: Industrial sound-dampened steel
Power Supply Wattage
No PSU
Motherboard Support
XL-ATX, E-ATX, ATX, Micro ATX, Mini ITX
Connectors / Controls
2 x USB 3.02 x USB 2.0Audio in/outPower button with LED (blue)Reset buttonFan controller (behind door)
Drive Bays
8 x 3.5" HDD / SSD trays4 x 5.25" bays
Compatability
GFX Card:330 mm with the top HDD cage installed480 mm with the top cage removed Max CPU Cooler:190 mm when using the bottom fan location345 mm when not using this fan location PSU:170 mm (when no fan is installed in the side panel)
Small Form Factor
No
Expansion Slots
9 Expansion slots
Cooling System
Included Front: 1 x Hydraulic 140 mm Silent Series R2 fanRear: 1 x Hydraulic 140 mm Silent Series R2 fanBottom: 1 x Hydraulic 140 mm Silent Series R2 fan Fan MountsFront: 2 x 120 / 140 mmTop: 2 x 120 / 140 mmRear: 1 x 120 / 140 mmBottom: 1 x 120 / 140 mmS
5.25 Bay
Yes (5.25 Bay)
