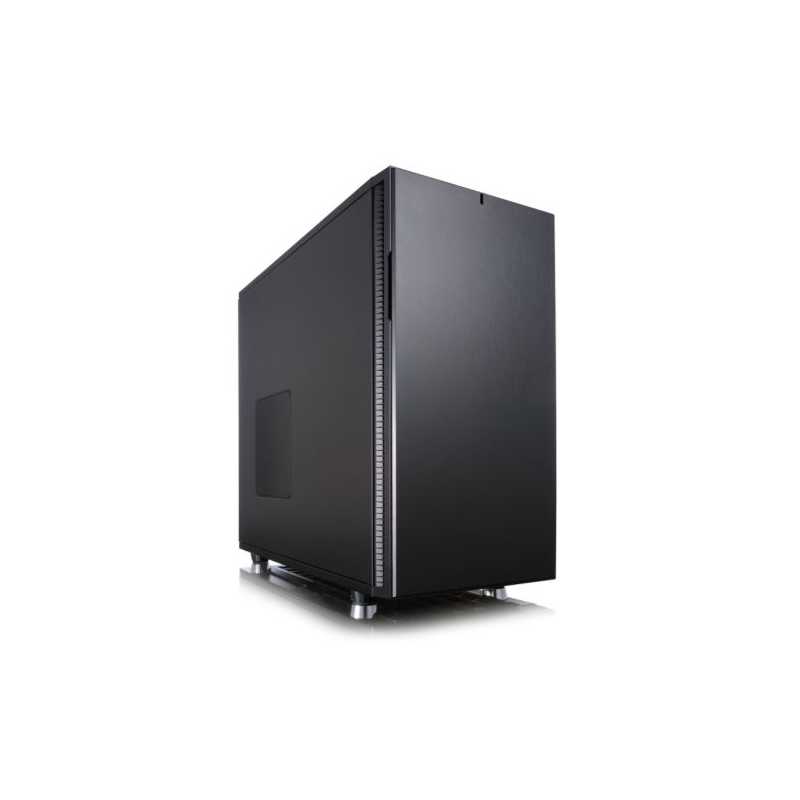

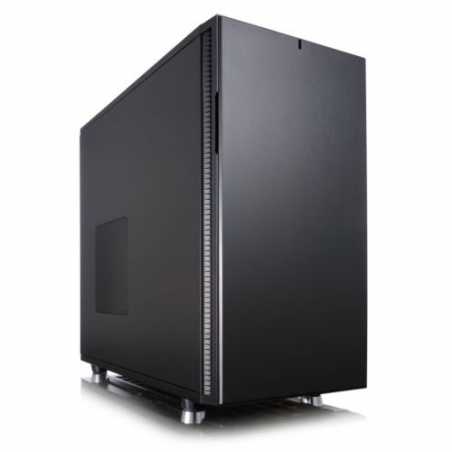

Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent De
search
  • Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent De
  • Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent De
  • Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent De

Fractal Design Define R5 (Black Solid) Silent Gaming Case, ATX, 2 Fans, Fan Controller, Configurable Front Door, Ultra Silent De

£121.80
VAT included
Stock status: Very low
Last 16 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%


The R5 is packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support


  • Optimally designed for silent computing with high density noise-reducing material throughout the case for maximum sound absorption, while not compromising on airflow and cooling capabilities.
  • Extensive water cooling support for a case of this size; housing radiators up to 420mm in the top and 360mm in the front.
  • Equipped with new tool-less ModuVent™ fan slot covers allowing the user to install more fans if desired or keep fan slots covered to maximize sound absorption.
  • Including two Fractal Design Dynamic GP14 140mm fans developed for superlative airflow while still maintaining low noise levels.
  • Maintaining a dust-free interior with the help of dust filters that cover front and bottom air intakes that are easy to access from the front on the case.
  • Newly configured front door with dual side mounting to better fit your work space.
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans.
  • Highlighting 2 dedicated SSD mounts cleanly placed behind the motherboard tray that feature innovative new brackets delivering a tool-free installation and removal
  • The HDD cage system holds up to eight 3.5” or 2.5” drives and is more adaptable than ever, allowing the user to modify the case layout according to personal preference with more places to relocate the cages
  • The ODD cage can easily be removed to gain additional interior space; the area can be freed up to allow for increased airflow, to provide a new place for HDD cage mounting or to make more room for water cooling components.
  • Sturdy metal HDD trays provide excellent dampening features for the hard drives while providing better airflow through the cage with an updated, more open design
  • The new and innovative Quick Release System on the left side of the case provides secure mounting of the left side panel, yet grants quick and easy access to the system.





The Define R5 case reaches the highest level of silent computing through strategically placed dense sound-dampening material, ModuVent™ fan vent covers and finely tuned Dynamic Series fans. Packed with intelligently designed enthusiast-oriented features delivering a silent case with powerful and expansive air and liquid cooling support.

The Define R5 was designed with configurability in mind, accommodating up to 8 hard drives and all modern graphics cards. Should you wish to expand your system with water cooling components or more fans, the layout can easily be configured to meet your demand.



FRACTAL
FD-CA-DEF-R5-BK
16 Items

Data sheet

.
Water Cooling options:Front: Up to 360 mm radiator (without drive bays)Top: Up to 420 mm radiator*Rear: 120/140 mm radiatorBottom: 120/140 mm radiator (Bottom radiators limit PSU length to 165mm)*a thickness limitation of 55 mm for both radiator + fan ap
Accessories
User manualAccessory box
Warranty
2 Years
Form Factor
ATX
Package Weight
12.2000 kg
Additional Features
See Overview / Video
Colour
Black
Weight/Dimensions
10.7 kg(WxHxD) 232 x 451 x 521 mmWith feet/screws/protrusions: 232 x 462 x 531 mm
Material
Left side panel: Industrial sound-dampened steelRight side panel: Industrial sound-dampened steel
Power Supply Wattage
No PSU
Motherboard Support
ATX, Micro ATX, Mini ITX
Connectors / Controls
2 x USB 3.02 x USB 2.0Audio in/outPower button with LED (blue)HDD activity LED (blue)Reset button
Drive Bays
8 x 3.5" HDD/2.5" SSD positions2 x 2.5" dedicated SSD positions (SSDs up to 12mm thick)2 x removable 5.25" bays
Compatability
GFX Card:310 mm with the top HDD cage installed or 440 mm with the top cage removed Max CPU Cooler:180 mm PSU:190/170 mm with a bottom 120/140 mm fan installed or 300 mm when not using any bottom fan location
Small Form Factor
No
Expansion Slots
7 Expansion Slots
Cooling System
Included Front: 1 x Dynamic GP-14 140mm fanRear: 1 x Dynamic GP-14 120mm fanFan MountsFront: 2 x 120 / 2 x 140 mmTop: 3 x 120 / 3 x 140 mmRear: 1 x 120 / 140 mmBottom: 2 x 120 / 2 x 140 mmSide: 1 x 120 / 140 mm
5.25 Bay
Yes (5.25 Bay)
