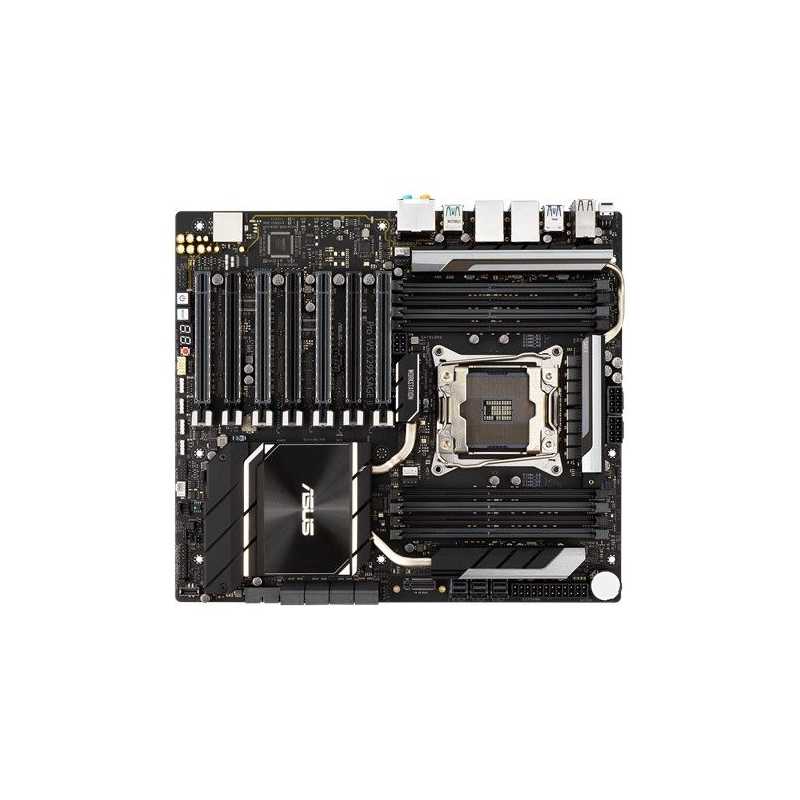

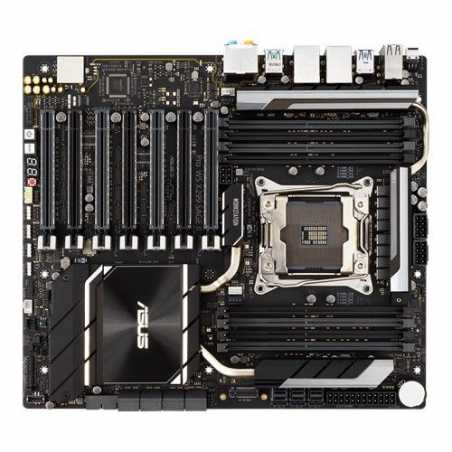

Asus PRO WS X299 SAGE II, Workstation, Intel X299, 2066, CEB, 7 x PCIe, U.2, Dual 2.5G LAN, AI Overclocking, 2x M.2, RGB Lightin
£695.70
VAT included
Intel CEB motherboard LGA 2066 for Intel Core X-series processors, with AI Overclocking, dual Intel 2.5G Ethernet, 7 PCIe Gen 3 slots, DDR4 4266 MHz memory support, dual M.2, triple U.2, USB 3.2 Gen 2 Type-C and Aura Sync RGB lighting
- Intel LGA 2066 socket: Ready for the latest Intel® Core™ X-series processors
- AI Overclocking: Quickly optimizes CPU performance by profiling the CPU and cooler, achieving results that are extremely close to manual tuning by experts
- Dual Intel® 2.5G LAN: Offers increased data throughput and improved efficiency, making it ideal for large file transfers and backup
- Fits up to 4-way graphics cards: Includes 7 PCIe Gen 3 x16 slots and supports NVIDIA® SLI and AMD CrossFire™
- Ultra-efficient VRM heatsink: Metal-fin-array design maximizes surface area for heat dissipation to enable unthrottled performance
- Next-gen connectivity: Next-gen transfer speedswith dual M.2, triple U.2 and USB 3.2 Gen 2 Type-A and Type-C™
90SW00U0-M0EAY0
Data sheet
- .
- 1 x M.2 Fan1 x 6-pin ATX 12V1 x USB 3.2 Gen21 x USB 3.2 Gen13 x U.2 LED switch
- Wireless
- -
- RAM Speeds
- 4266(O.C.)/4200(O.C.)/4133(O.C.)/4000(O.C.)/3600(O.C.)/2933/2666/2400 MHz
- Accessories
- Addressable LED ext cable1 x Vertical M.2 bracket setI/O Shield1 x COM port cabl8 x SATA 6Gb/s cable1 x M.2 screws1 x MOS Cooling kit (fan bracket & 40mm fan)1 x 3-Way SLI bridge1 x 4-Way SLI bridge1 x SLI HB BRIDGE(2-WAY-M)1 x Q-connector (0 in 1)
- USB Ports Supported
- 2 x USB 3.2 Gen2 Type-A & C (at back)1 x USB 3.2 Gen2 (at mid-board)8 x USB 3.2 Gen1 Type-A (6 at back, 2 at mid-board)4 x USB 2.0 (at mid-board)
- Storage
- 8 x SATA III1 x M.2 Socket (2242/2260/2280/22110) - SATA & PCIe1 x M.2 Socket 3 (2242/2260/2280) - PCIe3 x U.2
- RAID
- RAID 0, 1, 5, 10
- Warranty
- 3 Years
- Motherboard Type
- Server / Workstation
- Form Factor
- CEB
- Socket
- Intel 2066
- Chipset
- Intel X299
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Quad Channel)
- RAM Slots
- 8 x DIMM
- Maximum Memory
- 256GB
- Multi-GPU Support
- Supports NVIDIA 4-Way SLI TechnologySupports AMD 4-Way CrossFireX Technology
- LAN
- Dual 2.5GB LAN
- Audio
- Realtek S1200A 7.1-Channel High Definition Audio CODEC
- Back Panel I/O Ports
- 2 x LAN (RJ45)1 x USB 3.2 Gen2 Type-A1 x USB 3.2 Gen2 Type-C6 x USB 3.2 Gen14 x USB 2.01 x Optical S/PDIF out1 x USB BIOS FlashBack Button(s)1 x 8-channel Audio I/O
- Internal I/O Connectors
- 2 x CPU Fan2 x Chassis Fan2 x Addressable RGB1 x AAFP2 x Aura RGB Strip3 x M.2 Socket 3 with M key,1 x TPM8 x SATA 6Gb/s1 x VROC_HW_Key1 x AIO_PUMP1 x Thunderbolt1 x 24-pin EATX
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- -
- Additional Features
- See Overview
- Graphics
- -
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 7 x PCIe 3.0/2.0 x16
