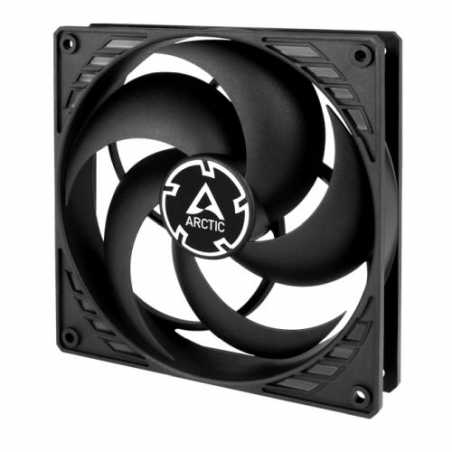

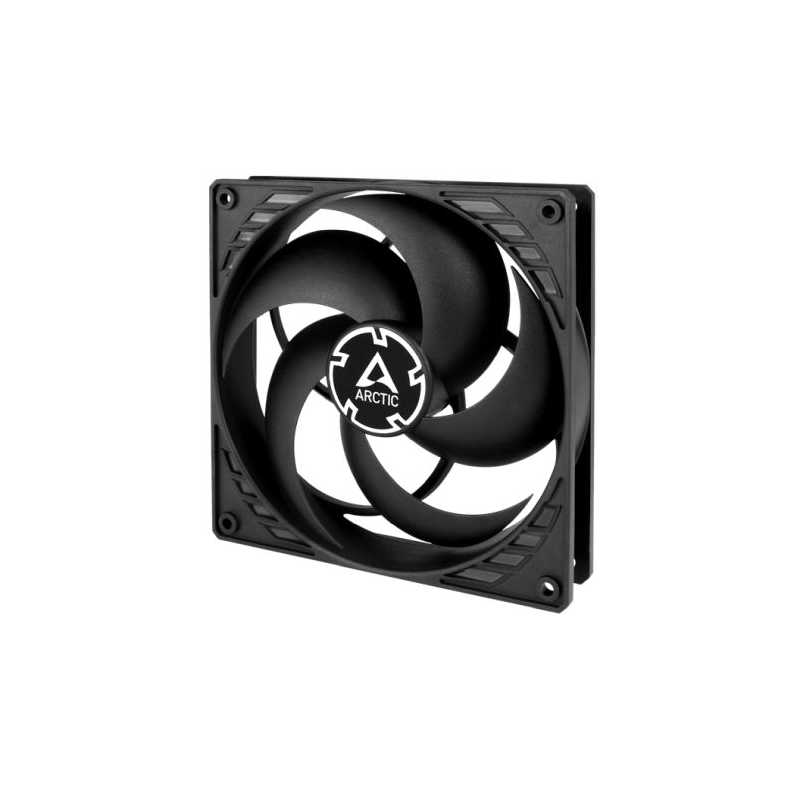

Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 10 Year Warranty
search
  • Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 10 Year Warranty
  • Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 10 Year Warranty
  • Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 10 Year Warranty

Arctic P14 14cm Pressure Optimised PWM PST Case Fan, Black, Fluid Dynamic, 10 Year Warranty

£9.59
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock


Pressure-optimised 140 mm Fan with PWM PST



Optimised For Static Pressure

During the development of the new P14 PWM PST, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST is particularly suitable for use on heatsinks and radiators.





More Efficient Technology

The motor is powered by a Neodym-Iron-Boron-Magnet ring of the newest generation, which allows the new P14 PWM PST to run much more efficiently than its predecessors. This saves energy and lowers the coil temperature without compromising the performance.





Maximum Quietness, Minimum Vibration

Even at low speeds the operating sound of the new ARCTIC motor is barely noticeable. Due to a sinus-magnetizing the new motor only creates about 5% of the vibration from commutation of a regular DC-motor without filter. Consequently, there is no need for rubber spacers due to the steady and smooth torque of the new motor.






Extended Life Span

A 10°C lower motor temperature roughly doubles the life span of a fan. The new ARCTIC motor has a four times longer service life through its low coil temperature. Consequently, we have extended the warranty to 10 years.





200 To 1700 Rpm Regulated Via PWM PST

With a wide range of regulation and the PWM Sharing Technology (PST), the P14 PWM PST fan speed can be controlled synchronously with all your other fans together. This keeps noise at a minimum while guaranteeing maximum cooling performance when needed.






High Quality Bearing

Thanks to an alloy/lubricant combination developed in Germany, friction within the bearing is reduced and greater efficiency is achieved. As a result, there is less heat development as well as less bearing noise, which means you can enjoy a longer service life from your fan.






Two Way Installation

  • Push warm air out of the case
  • Pull cool air into your case




ARCTIC
ACFAN00125A

Data sheet

Power
12 V DC
Warranty
10 Years
Package Type
Retail
Additional Features
See Overview
Dimensions
Cable Length: 400 mm
Type
14cm Case Fan
Colour
Black
Fan Connector(s)
4-pin
Installation
Screws
Weight
194 g
Fan Dimensions
140 x 140 x 27 mm
LED Lighting
No
Fan Controller
PWM
Rotation Speed
200 - 1700 rpm
Fan Bearing
Fluid Dynamic
Air Flow
72.8 CFM/ 123.76 m³/h
Noise level
0.3 Sone
