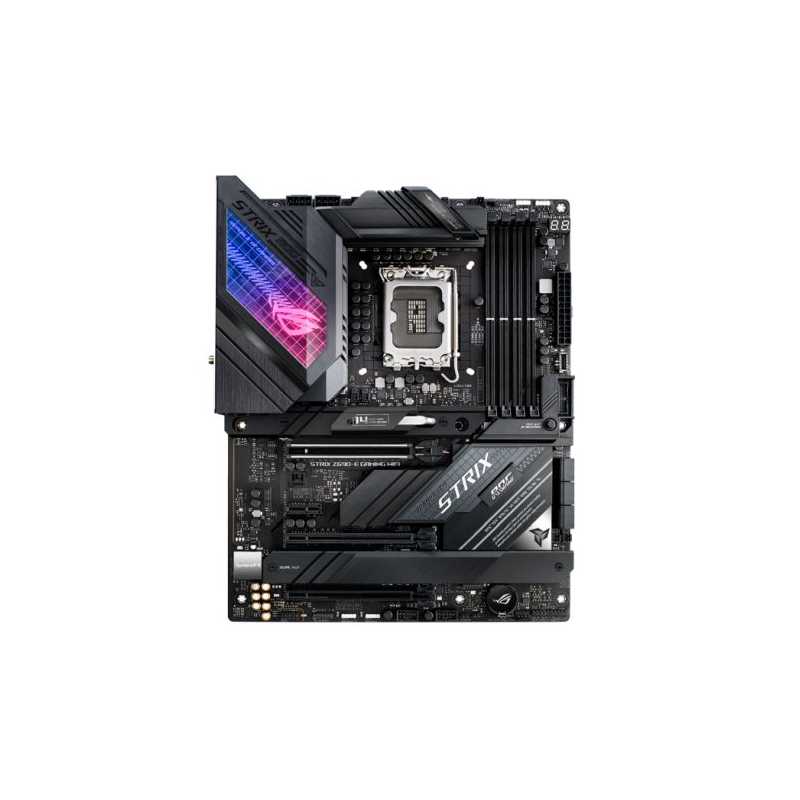

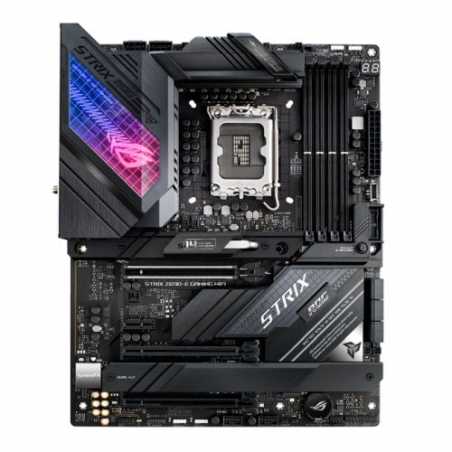

Asus ROG STRIX Z690-E GAMING WIFI, Intel Z690, 1700, ATX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, Hyper M.2 Card, RGB, 5x M.2
£602.24
VAT included
Intel Z690 LGA 1700 ATX motherboard with PCIe 5.0, 18+1 power stages, DDR5, Two-Way AI Noise Cancelation, WiFi 6E, Intel 2.5 Gb Ethernet, five M.2 slots with heatsinks (including two on the bundled ROG Hyper M.2 card), PCIe 5.0 NVMe SSD support, M.2 Combo-Sink, M.2 backplate, PCIe Slot Q-Release, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting
- Ready for 12th Gen: Intel Core, Pentium Gold and Celeron processors
- Optimal Power Solution: 18+1 power stages with 8+8 ProCool II power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, an M.2 Combo-sink for PCIe 5.0 M.2 slot and M.2 heatsinks for two M.2 slots
- High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, five M.2 slots (including two on the bundled ROG Hyper M.2 card) plus USB 3.2 Gen 2x2 Type-C
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, pre-mounted I/O shield, BIOS FlashBack_ button, and Clr CMOS button
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and three addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS_ Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG STRIX Z690-E GAMING WIFI
ROG Strix Z690-E Gaming WiFi puts 12th Gen Intel Core processors at centre stage, with beefed-up power delivery, cooling, cutting-edge connectivity options, and a range of accoutrements that effortlessly propel builds to maximum performance. This series flagship is your ticket to next-level gaming.
All-Round Performance
ROG Strix Z690-E Gaming WiFi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancellation helps ensure crystal-clear in-game communication.
Leading Connectivity
ROG Strix Z690-E Gaming WiFi delivers wickedly fast connectivity, supersmooth online experiences and ultrafast data transfers, including onboard PCIe 5.0 M.2 support and a ROG Hyper M.2 Card for potentially huge storage capacity. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
Play In Style
Pair ROG Strix Z690-E Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customised gaming setup that reflects your personal style.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
5-Way Optimisation
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
90MB18J0-M0EAY0
Data sheet
- .
- 1 x AURA RGB1 x CPU Over Voltage jumper1 x Front Panel Audio1 x SPI TPM (14-1pin)1 x 20-3 pin System Panel1 x Thermal Sensor1 x Thunderbolt
- Wireless
- Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2 hardware ready
- RAM Speeds
- Up to 6400(OC)
- Accessories
- 4 x SATA 6Gb/s cables 1 x ROG HYPER M.2 CARD 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate1 x M.2 Rubber Packages2 x M.2 Screw Packages1 x ROG Graphics card holder1 x ROG key chain
- USB Ports Supported
- 2 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen2 Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)6 x USB 3.2 Gen1 Type-A (4 at back, 2 at mid-board)6 x USB 2.0 (2 at back, 4 at mid-board)1 x USB 3.2 Gen2x2 Type-C front panel connector
- Storage
- 6 x SATA III2 x M.2 (2242/2260/2280/22110) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIeHyper M.2_1 via Hyper M.2 card (2242/2260/2280/22110) - PCIeHyper M.2_2 via Hyper M.2 card (2242/2260/2280/22110) - PCIe
- RAID
- Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel Z690
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C3 x USB 3.2 Gen2 pors (2 Type-A, 1 Type-C)4 x USB 3.2 Gen1 Type-A4 x USB 2.01 x HDMI1 x DisplayPort1 x Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet5 x Gold-plated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clea
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin CPU OPT Fan1 x 4-pin AIO Pump5 x 4-pin Chassis Fan1 x 24-pin Main2 x 8-pin +12V3 x M.2 (Key M) 6 x SATA 6Gb/s1 x USB 3.2 Gen2x2 Type-C1 x USB 3.2 Gen12 x USB 2.03 x Addressable Gen2
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x161 x PCIe 3.0 x16 1 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
