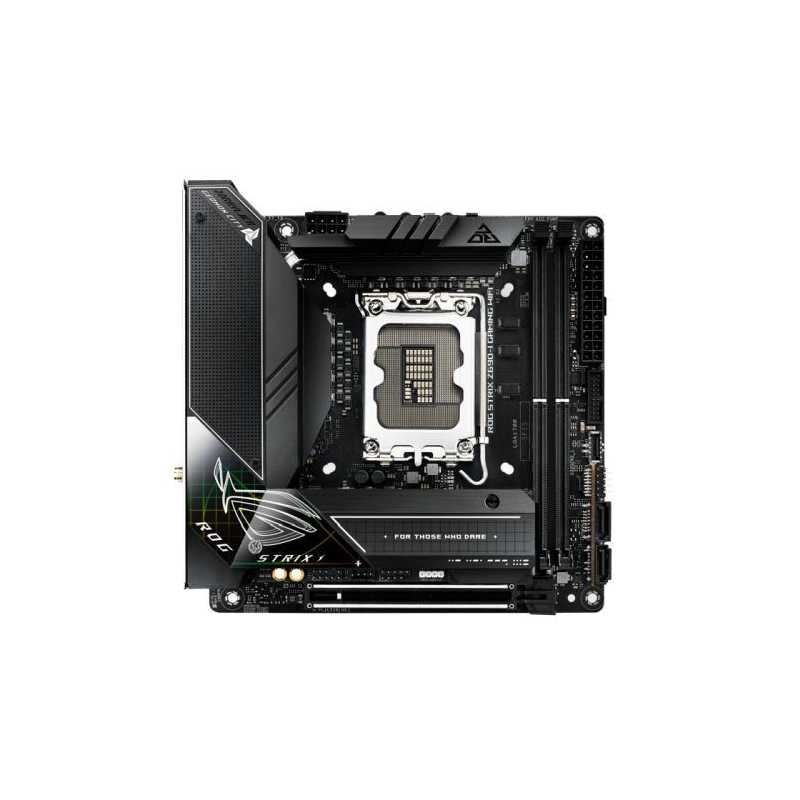

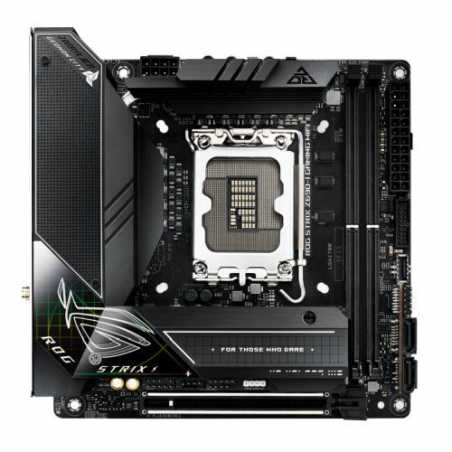

Asus ROG STRIX Z690-I GAMING WIFI, Intel Z690, 1700, Mini ITX, 2 DDR5, HDMI, 2 Thunderbolt, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 2x M.2
£460.83
VAT included
Intel Z690 LGA 1700 ITX motherboard with PCIe 5.0, 10+1 power stages, Two-Way AI Noise Cancellation, AI Overclocking, AI Cooling, AI Networking, WiFi 6E (802.11ax), Intel 2.5 Gb Ethernet, two M.2 slots with heatsinks and backplates, two Thunderbolt 4 USB Type-C, SATA and Aura Sync RGB lighting
- Intel LGA 1700 socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron Processors
- Optimal Power Solution: 10+1 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimised Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, L-shaped heatpipe, two onboard M.2 heatsinks and backplates
- High-performance Networking: On-board Intel WiFi 6E (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1, two M.2 slots, 2 x ThunderboltTM 4 as well as 1 x USB 3.2 Gen 2x2 Type-C
- Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation to simplify setup and improve performance
- DIY Friendly Design: Bundled ROG Front Panel SATA Card, M.2 Q-Latch, Pre-mounted I/O shield, BIOS FlashBack button, and Clr CMOS button
- Unmatched Personalisation: ASUS-exclusive Aura Sync RGB lighting, including a RGB header and two addressable Gen 2 headers
- Industry-leading Gaming Audio: ALC4080 with Savitech SV3H712 amplifier, along with DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60 days free trial version and intuitive UEFI BIOS dashboard with integrated MemTest86
ROG STRIX Z690-I GAMING WIFI
The ROG Strix Z690-I Gaming WiFi packs premium-grade power delivery and triple-decker cooling into a compact mini-ITX form factor to unleash the full force of 12th Gen Intel Core processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe 5.0. Plus, onboard WiFi 6E and PCIe 4.0 M.2 slots bring lightning-fast performance to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process, so even novice builders can quickly get to serious gaming.
All-Round Performance
ROG Strix Z690-I Gaming WiFi helps you get the most out of your gaming build with high-end power delivery, DDR5 memory support, optimized cooling, and intelligent controls that let you manage overclocking, cooling, networking and audio settings.
Leading Connectivity
ROG Strix Z690-I Gaming WiFi features an innovative design that delivers a full gamut of cutting-edge connectivity options for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, we’ve managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.
Play In Style
Pair ROG Strix Z690-I Gaming WiFi with other products from the diverse ROG ecosystem to create a fully customised gaming setup that reflects your personal style.
Undeniably ROG STRIX
The ROG Strix Z690-I Gaming WiFi design language is defined by futuristic grids and meshes that may seem low-key at first, until users gaze upon the lower left-hand corner that glows with an iridescent grid pattern.
ROG Gives You More
ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
5-Way Optimisation
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
90MB1910-M0EAY0
Data sheet
- .
- 1 x 2 pin POWER_BTN2 x USB Type-C connectors to Install ROG Strix Front panel SATA card
- Wireless
- Wi-Fi 6E2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency bandBluetooth v5.2
- RAM Speeds
- Up to 6400(OC)
- Accessories
- 1 x ROG USB2.0 splitter cable1 x Panel Cable2 x SATA 6Gb/s cables 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack1 x M.2 Q-Latch package1 x ROG key chain1 x ROG logo plate stickers1 x ROG Strix stickers 1 x ROG Strix thank you card
- USB Ports Supported
- 2 x Thunderbolt 4 USB Type-C (at back)2 x USB 3.2 Gen2 Type-A (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)4 x USB 2.0 (2 at back, 2 at mid-board)1 x USB 3.2 Gen2x2 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe1 x M.2 (2242/2260/2280) - SATA & PCIe
- RAID
- Intel Rapid Storage supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Intel 1700
- Chipset
- Intel Z690
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Back Panel I/O Ports
- 2 x Thunderbolt 4 USB Type-C2 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x HDMI1 x Wi-Fi Module1 x Intel 2.5Gb EthernetLED-illuminated audio jacks1 x Optical S/PDIF out1 x BIOS FlashBack button 1 x Clear CMOS button
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin AIO Pump1 x 4-pin Chassis Fan1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M)4 x SATA 6Gb/s1 x USB 3.2 Gen2x2 Type-C1 x USB 3.2 Gen11 x USB 2.01 x Addressable Gen21 x AURA RGB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 5.0 x16
- Wi-Fi
- Yes (Wi-Fi)
