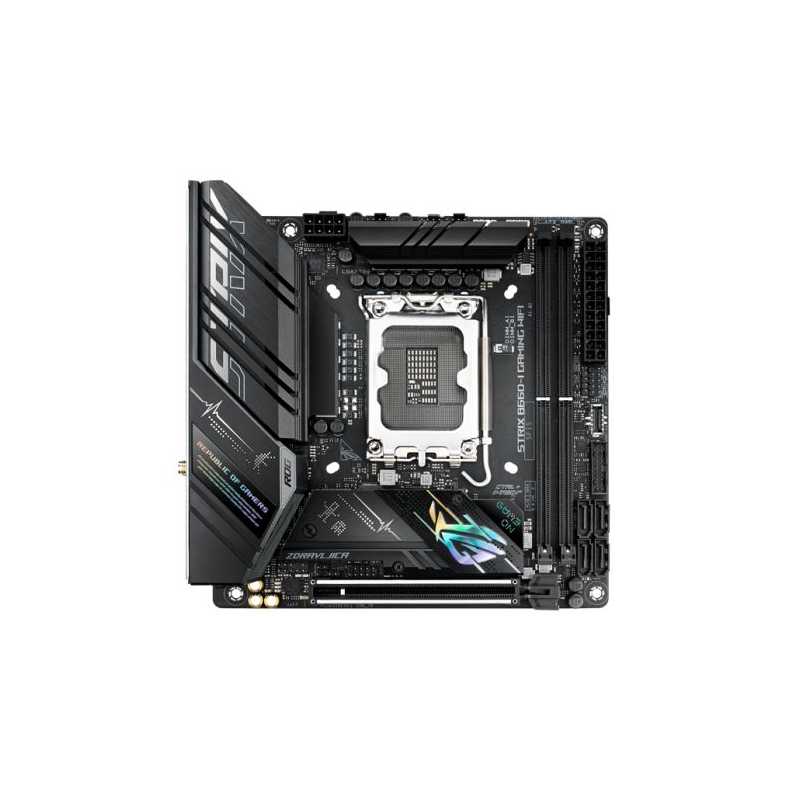

Asus ROG STRIX B660-I GAMING WIFI, Intel B660, 1700, Mini ITX, 4 DDR5, HDMI, DP, Wi-Fi, 2.5GB LAN, PCIe5, RGB, 2x M.2
£335.72
VAT included
Intel B660 LGA 1700 ITX motherboard with PCIe 5.0, 8+1 power stages, DDR5 memory support, ASUS Enhanced Memory Profile, Two-Way AI Noise Cancelation, AI Cooling, AI Networking, WiFi 6 (802.11ax), Intel 2.5 Gb Ethernet, two PCIe 4.0 M.2 slots, USB 3.2 Gen 2x2 Type-C, SATA and Aura Sync RGB lighting
- Intel LGA 1700 Socket: Ready for 12th Gen Intel Core, Pentium Gold and Celeron processors
- Optimal Power Solution: 8+1 power stages with ProCool power connectors, high-quality alloy chokes and durable capacitors to support multi-core processors
- Optimized Thermal Design: Integrated I/O cover and VRM heatsinks with high conductivity thermal pad, one onboard M.2 heatsink, and one M.2 backplate
- High-performance Networking: On-board Intel WiFi 6 (802.11ax) and Intel 2.5 Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 2.1 and DisplayPort 1.4 output, two M.2 slots, as well as USB 3.2 Gen 2x2 Type-C
- Intelligent Control: ASUS-exclusive AI Cooling, AI Networking and Two-Way AI Noise Cancelation to simplify setup and improve performance
- DIY Friendly Design: M.2 Q-Latch, pre-mounted I/O shield, and Q-LED
- Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including an RGB header and an addressable Gen 2 RGB header
- Industry-leading Gaming Audio: SupremeFX S1220A codec with Savitech SV3H712 amplifier, along with Two-Way AI Noise Cancelation, DTS Sound Unbound and Sonic Studio III
- Renowned Software: Bundled AIDA64 Extreme 60-day free trial, and an intuitive UEFI BIOS dashboard with integrated MemTest86
90MB19C0-M0EAY0
Data sheet
- .
- 1 x Clear CMOS1 x Front Panel Audio1 x S/PDIF Out1 x Speaker1 x 10-1 pin System Panel
- Wireless
- Wi-Fi 62x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) Supports 2.4/5GHz frequency bandBluetooth v5.2
- RAM Speeds
- Up to 6133(OC)
- Accessories
- 2 x SATA 6Gb/s cables 1 x ROG USB2.0 splitter cable1 x Panel cable1 x ASUS Wi-Fi moving antennas 2 x M.2 SSD screw packages1 x M.2 bracket1 x ROG key chain1 x ROG STRIX stickers1 x ROG STRIX thank you card1 x User manual
- USB Ports Supported
- 1 x USB 3.2 Gen2x2 Type-C (at back)1 x USB 3.2 Gen1 Type-C (at back)5 x USB 3.2 Gen1 Type-A (3 at back, 2 at mid-board)5 x USB 2.0 (3 at back, 2 at mid-board)1 x USB 3.2 Gen2 Type-C front panel connector
- Storage
- 4 x SATA III1 x M.2 (2260/2280) - PCIe1 x M.2 (2242/2260/2280) - PCIe
- RAID
- Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Intel 1700
- Chipset
- Intel B660
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- 2.5GB LAN
- Audio
- ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A
- Back Panel I/O Ports
- 1 x USB 3.2 Gen2x2 Type-C4 x USB 3.2 Gen1 (3 Type-A & 1 Type-C)3 x USB 2.01 x HDMI1 x DisplayPort1 x Wi-Fi Module1 x Intel I225-V 2.5Gb Ethernet5 x Audio jacks
- Internal I/O Connectors
- 1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x 4-pin AIO Pump1 x 24-pin Main1 x 8-pin +12V2 x M.2 (Key M) 4 x SATA 6Gb/s1 x USB 3.2 Gen2 USB Type-C1 x USB 3.2 Gen11 x USB 2.01 x Addressable Gen21 x AURA RGB
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated Graphics**Graphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- RGB Lighting
- Yes (RGB)
- PCI/PCI Express
- 1 x PCIe 5.0 x16
- Wi-Fi
- Yes (Wi-Fi)
