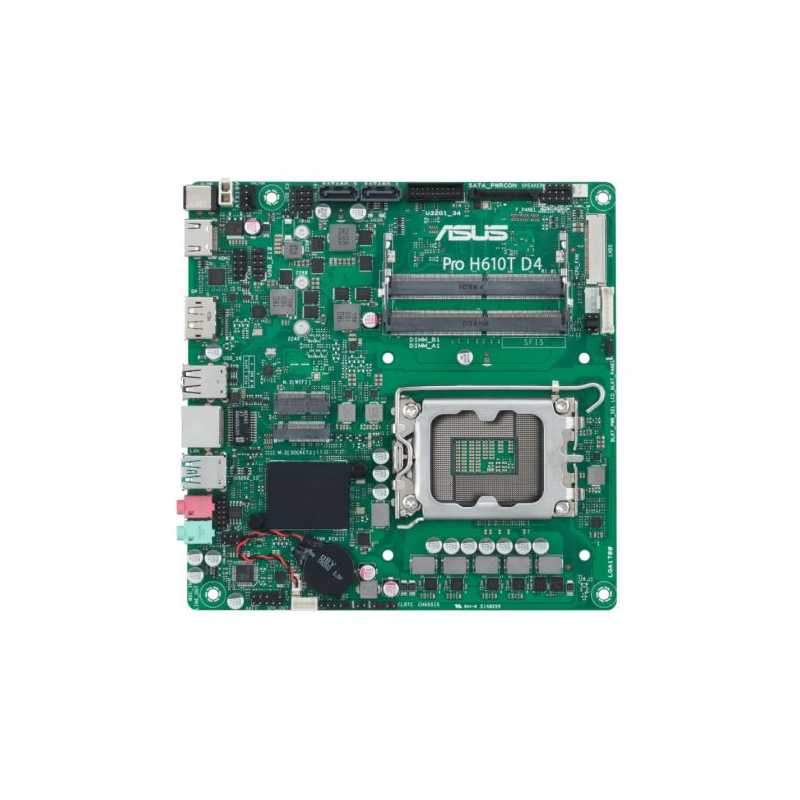

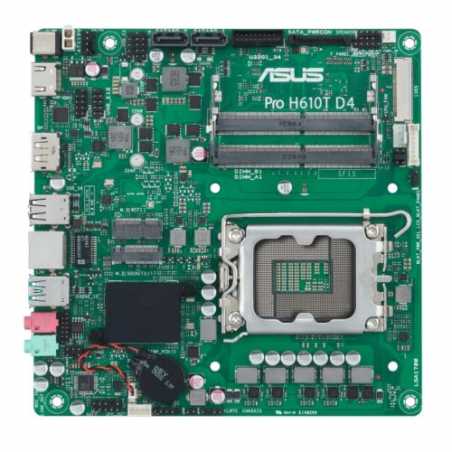

Asus PRO H610T D4-CSM - Corporate Stable Model, Intel H610, 1700, Thin Mini ITX, 2 DDR4 SO-DIMM, HDMI, DP, LVDS, 19v DC in, 1x M

Data sheet

.

1 x M.2 slot (Key E)1 x Speaker 1 x SPI TPM (14-1pin)1 x 10-1 pin System Panel

Wireless

-

RAM Speeds

3200/2933/2800/2666/2400/2133 MHz

Accessories

2 x SATA 6Gb/s cables1 x SATA power cable2 x I/O Shields1 x Support DVD1 x ACC Express Activation Key Card1 x User guide

USB Ports Supported

2 x USB 3.2 Gen2 Type-A (at back)2 x USB 3.2 Gen1 Type-A (at mid-board)7 x USB 2.0 (2 at back, 5 at mid-board)

Storage

2 x SATA III1 x M.2 (2260/2280) - SATA & PCIe

Warranty

3 Years

Motherboard Type

Desktop

Form Factor

Thin Mini ITX

Socket

Intel 1700

Chipset

Intel H610

DDR Type

DDR4 SO-DIMM

RAM Technology

DDR4 SO-DIMM (Dual Channel)

RAM Slots

2 x SODIMM

Maximum Memory

64GB

LAN

GB LAN

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Back Panel I/O Ports

2 x USB 3.2 Gen22 x USB 2.01 x DisplayPort1 x HDMI1 x Realtek 1Gb Ethernet2 x Audio jacks1 x DC Power (Support 19V)

Internal I/O Connectors

1 x 4-pin CPU Fan1 x 4-pin Chassis Fan1 x 2-pin +19V1 x SATA power1 x M.2 (Key M)2 x SATA 6Gb/s1 x USB 3.2 Gen12 x USB 2.01 x USB 2.01 x 2-pin internal DC power1 x Stereo speaker1 x DMIC

CPU Support

Click here for CPU support

Package Type

Retail

Graphics Ports

1 x HDMI1 x DisplayPort1 x LVDS connector

Additional Features

See Overview

Graphics

Integrated Graphics**Graphics specifications may vary between CPU types

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

1 x LAN

Max LAN Speed

GB LAN
